Truss Type 600 Ton Double Beam Bridge Launching Crane
Henan Nucrane Machinery Co.,Ltd.- Certification：CE, ISO9001
- Condition：New
- Operation Form：Air Operation+Ground Operation
- Maximum Lifting Height：4-5m
- Maximum Lifting Weight：>200t
- Main Girder Form：Double Girder
Base Info
- Model NO.：BGEM
- Type：Ordinary
- Lifting Capacity (T)：200ton
- Applicable Span (M)：≤55
- Applicable Skew Bridge Angle：0-450
- Trolley Lifting Speed (M/Min)：0.8
- Tolley Longitudinal Moving Speed (M/Min)：4.25
- Cart Longitudinal Moving Speed (M/Min)：4.25
- Cart Transverse Moving Speed (M/Min)：2.45
- Transportation Capacity (T)：100*2
- Speed of Bridge Transport Vehicle (M/Min：8.5
- Return Speed (M/Min)：17
- Transport Package：Container Loading for Better Cost Saving
- Specification：40′HQ or bulk cargo ship
- Trademark：Nucrane
- Origin：Henan Changyuan City
- Production Capacity：100sets,Month
Description

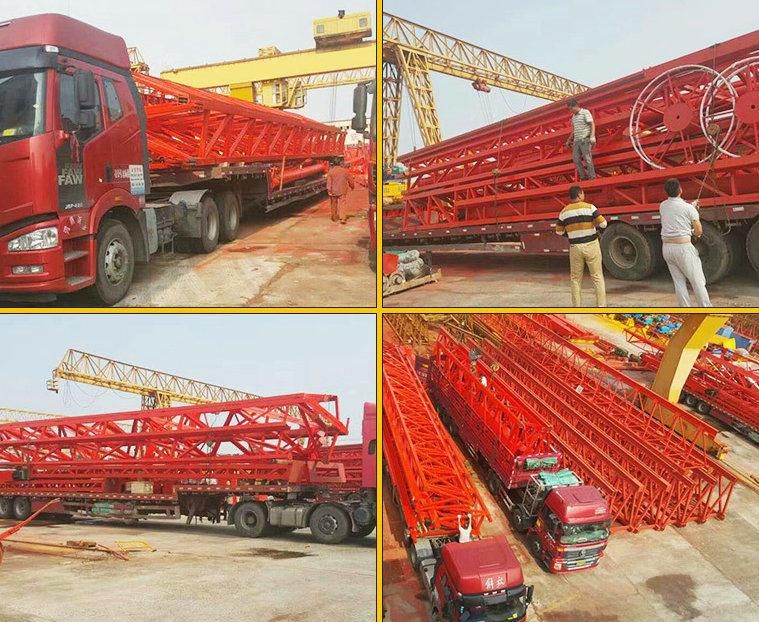

Packing/Delivery Adevices:1
Crane Beam & Main Equipment: Packaged by color strip woven plastic cloth for abrasion reduce and
moisture-proof. 2 Crane Kit & Electric Accessories: Export standard high quality plywood case for reduce distortion. 3
Loading & Delivery Option: Prefered to choose container loading for better cost saving. Oversize beams
and equipment can be cut for container loading as suitable size crane products. Bulk cargo shipment will be
used when container loading not available. 4 Loading Port: Qingdao Port is prefered, Tianjin Port, Shanghai Port etc. available on your demand. 5 Delivery Time: Lead time 30-45days, port time 5 days, estimate time of arraival (ETA) to Xxxxxx Port 35-50 working days.
FAQ
1. What's the information should I provide when inquiry about the bridge launching tube beam launcher crane?
a.we need the Bridge Drawing, the Maximum longitudinal slope and the Maximum Transverse slope.
b.The Girder/beam drawing.
2. How many Personnel and equipment to assemble launching gantry in the worksite we need?
Personnel: 8 to 10 workers equipment
Truck crane > 50 t : 2 sets
Φ19.5 steel wire rope 8 m: 4 ropes
Sleepers: several
Electric welding machine: 1 set
Oxygen, acetylene: 1 set
Hammer(12 pound and 8 pound): 1 set for each
Wrench and pincher: several
Gradienter: 1 set
3. What are inspection standard for load test of bridge launching tube beam launcher crane?
Dynamic load test: 1.1 times rated load.
Static load test: 1.25 times rated load.
4. How to make highway bridge concrete girders?
Highway Bridge concrete girders could be made by 4 methods:
a. Full span prefabrication.
b. Segment girder prefabrication.
c. Full span cast-in-place girder.
d. Segment cast-in-situ.
5. How about maintenance of bridge launching tube beam launcher crane?
a. Lubricating:Working performance and service life of all mechanisms of crane depend on lubricating to a big extent.
b. Steel wire rope:Fracture of wire has to be specially noticed. A new steel wire rope has to be changed immediately with the condition of broken wire, broken strands and wear loss to scrapping standard.
c. Spreader: The spreader has to be checked regularly.
d. Pulley block:Mainly check rope race wearing condition, check whether wheel flange is cracked and whether pulley could get stuck in the axle or not.
e. Wheels:Regularly check wheel flange and tread, a new wheel has to be immediately replaced as crack part or wearing in wheel flange reaches 10% of wheel thickness;Re-polishing has to be done as diameters between two driving wheels on tread differs more than D/600, or there are severe scar on the tread.
f. Brake: Check one time per shift; The brake should be in accurate movement, and pins do not allow to be stuck. Brake shoes shall fit brake wheels correctly; the brake shoes interval shall be equal to open them.
