• Model NO.：QY50KD
• Shaft Number：4
• Crane Jib：Five-Arm
• Type：Small Crane
• Size：13750*2800*3520mm
• Engine Model：Wd615.334(Domestic III)
• Rated Power：247kw
• Weight in Travel：42050kg
• Engine Rated Torque：1350,1400n.M,(R,Min)
• Fully Extended Boom+ Jib：57.7m
• Max.Lifting：50t
• Boom Type：U Style
• Boom Luffing Time：88s
• Color：Yellow
• Transport Package：Nude
• Specification：ISO, CCC, Gost
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• HS Code：87051092
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. QY50KD Shaft Number 4 Crane Jib Five-Arm Type Small Crane Size 13750*2800*3520mm Engine Model Wd615.334(Domestic III) Rated Power 247kw Weight in Travel 42050kg Engine Rated Torque 1350/1400n.M/(R/Min) Fully Extended Boom+ Jib 57.7m Max.Lifting 50t Boom Type U Style Boom Luffing Time 88s Color Yellow Transport Package Nude Specification ISO, CCC, Gost Trademark ORIEMAC Origin Jiangsu, China HS Code 87051092 Production Capacity 3000PCS/Month

Product Description

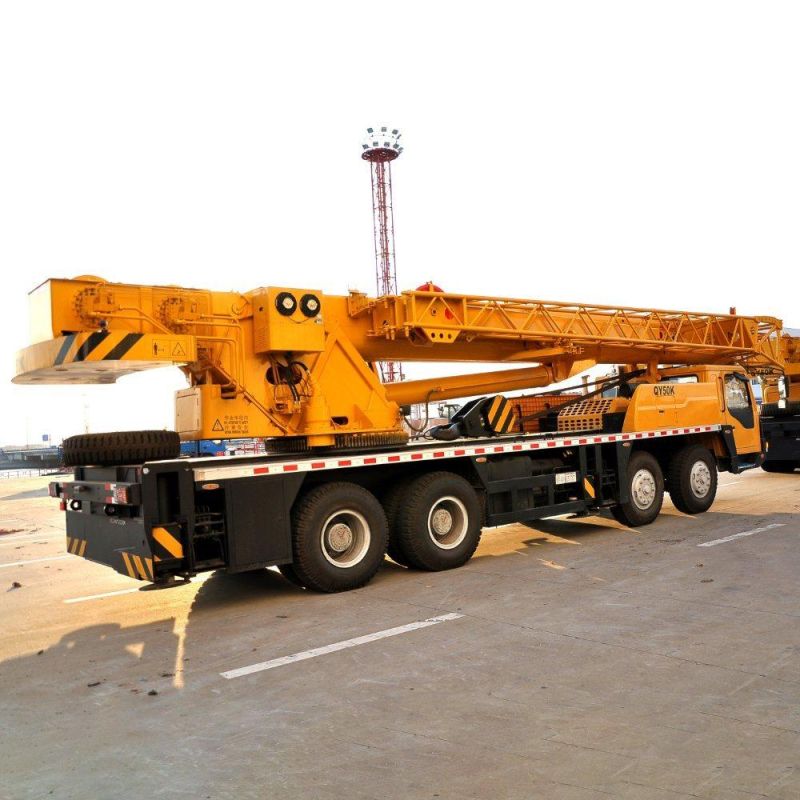

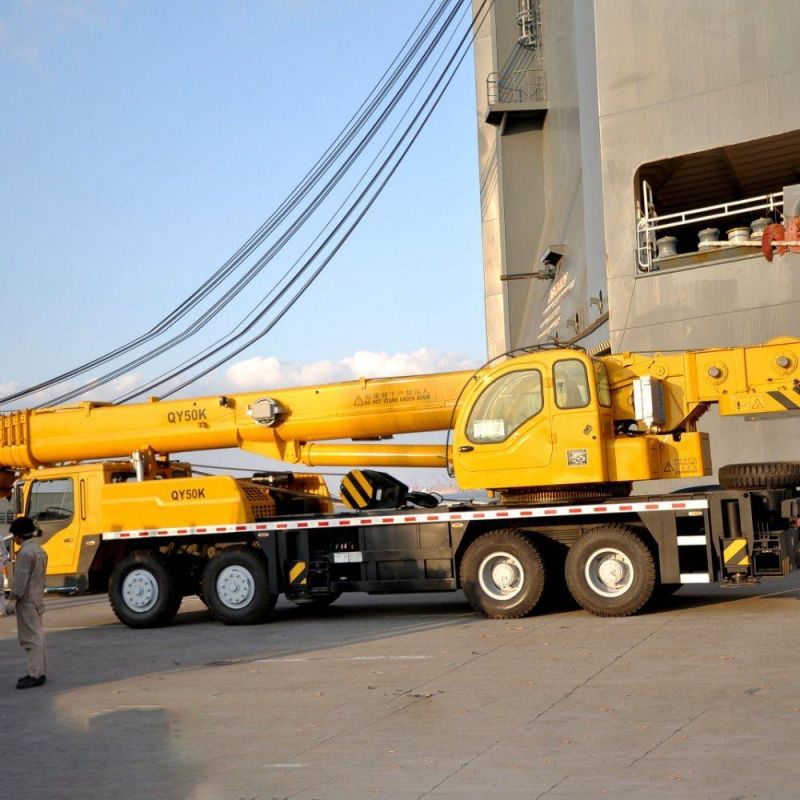

50ton QY50KD Telescopic Boom Truck Crane Ready Stock

The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
The humanity design makes the cab and control cab more spacious, and easy to operate.
Six unique manufacturing technologies ensure the high quality.

Dimension	Unit	QY50KD
Overall length	mm	14030
Overall width	mm	2800
Overall height	mm	3520
Weight
Total weight in travel	kg	42050
Front axle load	kg	15000
Rear axle load	kg	26000
Power
Engine model		WD615.334(domestic III)
Engine rated power	kW/(r/min)	247/2200
Engine rated torque	N.m/(r/min)	1350/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	291
Approach angle	°	17
Departure angle	°	11
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	50
Min. rated working radius	m	3
Turning radius at turntable tail	m	3.482
Max. lifting torque	kN.m	1764
Base boom	m	11.3
Fully extended boom	m	42.7
Fully extended boom+ jib	m	57.7
Longitudinal outrigger span	m	5.91
Lateral outrigger span	m	6.9
Working speed
Boom luffing time	s	88
Boom full extension time	s	180
Max. swing speed	r/min	≥2.0
Max. speed of main winch (single rope) (no load)	m/min	≥110
Max. speed of aux. winch (single rope) (no load)	m/min	≥110
