• Model NO.：QC
• Maximum Lifting Weight：20-50t
• Main Girder Form：Double Girder
• Type：Beam
• Core Components：PLC, Bearing, Gearbox, Motor, Gear
• Machinery Test Report：Provided
• Marketing Type：New Product 2020
• Span：7.5-31.5m
• Weight (Kg)：32000kg
• Crane Type：Double Girder Overhead Crane
• Work Duty：A5-A7
• Lifting Mechanism：Electric Trolley
• Color：Customized
• Working Temperature：-10 ~45ºC
• Power Source：3p 220--440 V,50Hz60Hz
• Control Method：Ground Control+Remote Control+Cabin Control
• Transport Package：Export Standard
• Specification：different
• Trademark：Kuangyuan brand
• Origin：Xinxiang(Crane Hometown), Henan Province, China
• HS Code：8426112000
• Production Capacity：5000sets,Year

Basic Info.

Model NO. QC Maximum Lifting Weight 20-50t Main Girder Form Double Girder Type Beam Core Components PLC, Bearing, Gearbox, Motor, Gear Machinery Test Report Provided Marketing Type New Product 2020 Span 7.5-31.5m Weight (Kg) 32000kg Crane Type Double Girder Overhead Crane Work Duty A5-A7 Lifting Mechanism Electric Trolley Color Customized Working Temperature -10 ~45ºC Power Source 3p 220--440 V/50Hz60Hz Control Method Ground Control+Remote Control+Cabin Control Transport Package Export Standard Specification different Trademark Kuangyuan brand Origin Xinxiang(Crane Hometown), Henan Province, China HS Code 8426112000 Production Capacity 5000sets/Year

Product Description

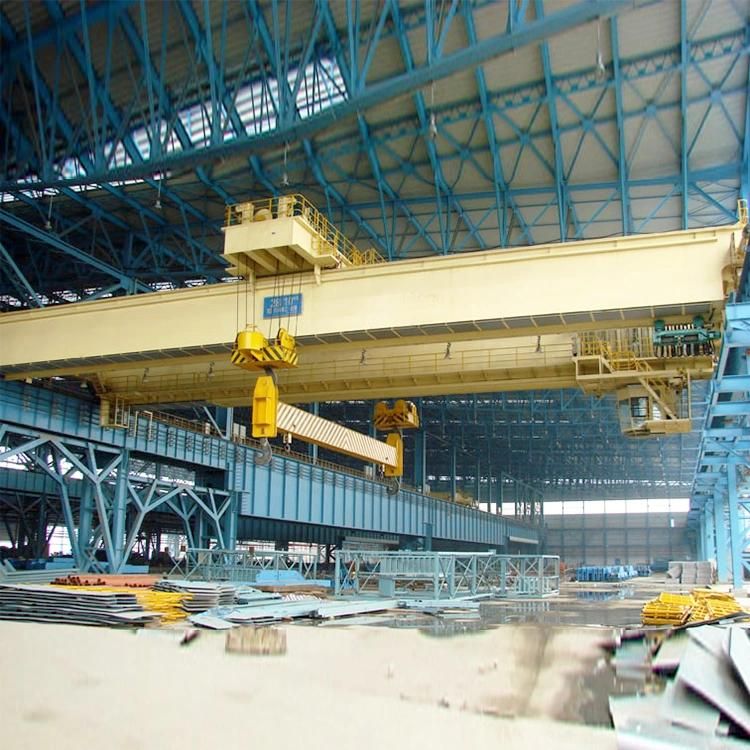

10+10 Ton Double Girder Rotation Revolving type Hanging Beam magnetic EOT crane  Product Description
The crane has slewing carrier-beam, is applicable to the fixed span at indoor outdoors of steel mill, shipyard, port, yard and storage etc. It is used for loading, unloading and carrying steel plate, profile steel, and spool etc. It is especially applicable to lift material of different specifications and which needs Horizontal rotation, The carrier-beam is cross structure, which is reliable and has good safety features, and has a certain function of preventing swinging, The lower part of the carrier-beam can bring special lifting appliances, such as magnetic chuck and tongs etc.
Product Structure

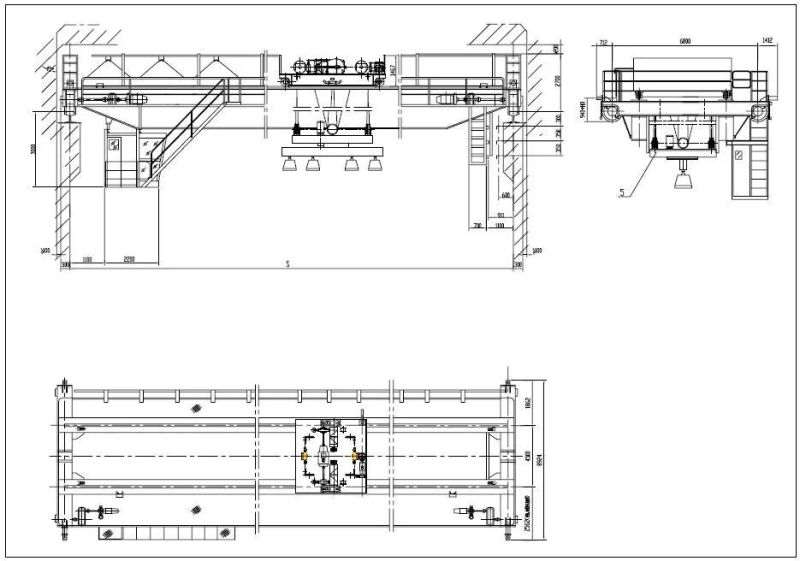

Drawings
COMPANY PROFILE
The 2,700-plus-member factory covers over 680,000 square meters and has a total asset of 660 million CNY. The 1,200-plus equipment enable the company to independently conduct over 20 technological flows, including lathing, milling, planning and grinding. The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.


We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.

SHIPPING AND PAYMENT
FAQ
1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity
B: span
C: lift height
D: power sourceor other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .
B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
