Crane

25 Ton New Qy25K5 Mobile Truck Mounted Crane with Cheap Price

Mafal (Shanghai) Machinery Limited
  • Certification:CE, ISO9001
  • Condition:New
  • Maximum Lifting Height:30-40m
  • Maximum Lifting Weight:>16t
  • Shaft Number:4
  • Crane Jib:Four-Arm

Base Info

  • Model NO.:QY25K5
  • Type:Straight Arm
  • Engine Rated Output:206,2200kw,(R,Min.)
  • Engine Rated Torque:1112,1400n.M,(R,Min.)
  • Braking Distance:10m
  • Fuel Consumption for 100km:37L
  • Total Mass in Travel State:31000kg
  • Front Axle:6440kg
  • Rear Axle:24600kg
  • Min. Turning Diameter:22m
  • Max.Total Lifting Capacity:25t
  • Min. Working Radius:3000mm
  • Transport Package:Nude
  • Specification:120cbm
  • Trademark:MAFAL
  • Origin:Xuzhou
  • HS Code:87051091
  • Production Capacity:200units

Description

Classificatory

Item

Unit

Parameter

Outline dimension

Overall length

mm

12000

Overall width

mm

2500

Overall height

mm

3380

Mass

Total mass in travel state

kg

31000

Axle load

Front Axle

kg

6440

Rear Axle

kg

24600

Travel performance

Travel speed

Max. travel speed

km/h

75

Turning diameter

Min. turning diameter

m

22

Min. ground clearance

mm

260

Approach angle

(°)

16

Departure angle

(°)

13

Braking distance (at speed of 30km/h)

m

10

Max. grade-ability

%

30

Fuel consumption for 100km

L

37

Power

Engine rated output

kW/(r/min.)

206/2200

Engine rated torque

N.m/(r/min.)

1112/1400

Engine rated speed

rpm.

2200

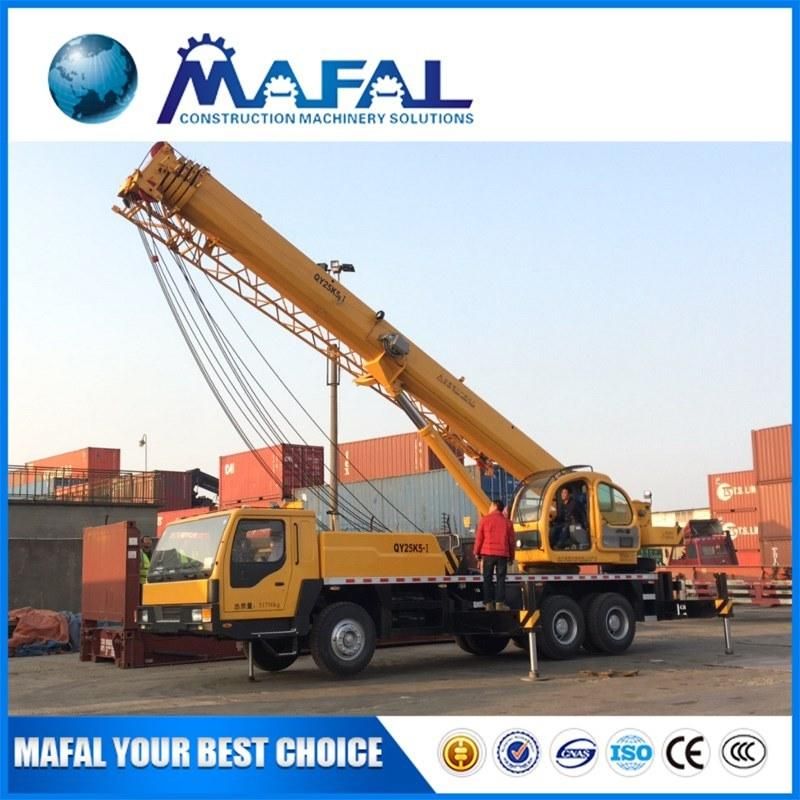

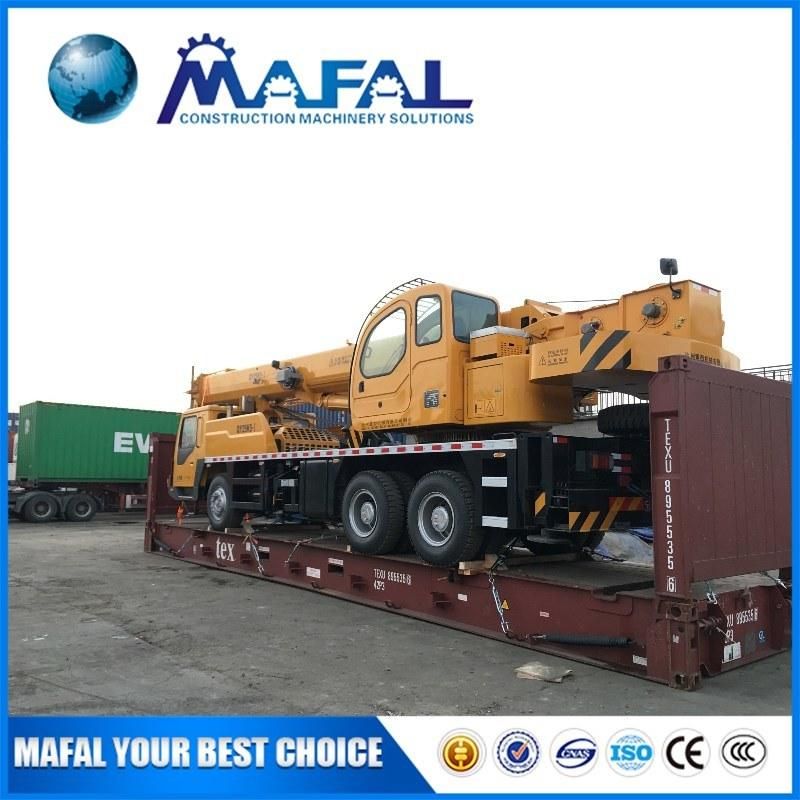

Photos:


25 Ton New Qy25K5 Mobile Truck Mounted Crane with Cheap Price
25 Ton New Qy25K5 Mobile Truck Mounted Crane with Cheap Price

1.. Which countries do we export to?
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: South Africa, Ethiopia, Libya,
Ghana,Algeria,Nigeria,Congo,Mozambique ,Kenya etc

2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare parts,like engines,bridge,transmissions,and many parts designed and produced by ourselves,
always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce
production cost to ensure that our price is competitive.
3)Service Team: First, our sales managers are online 24 hours,ready to answer your
questions at any time. Second, professional maintenance team with senior technicians,
ready to provide support services to users and dealers. Most problems can be solved
within 24 hours.
4)Fast Delivery:Under normal circumstances,we can delivery with 10 working days in
factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall
be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses" can be accepted.
4. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust
our price based on two situations:
1)The rate of USD
2)TheThe price of material

Other questions, please contact me directly!!
