• Model NO.：OUCO-SB-6T10M
• Application：Marine, Offshore
• Transport Package：Nude
• Trademark：OUCO
• Origin：Wuxi, Jiangsu, China
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. OUCO-SB-6T10M Application Marine, Offshore Transport Package Nude Trademark OUCO Origin Wuxi, Jiangsu, China Production Capacity 100 Sets Per Year

Product Description

Product Description
This kind of fixed/stiff boom crane is designed for general cargo handling and service onboard ships and offshore units. The cranes are available in various range and can be supplied according to customer requirements. The stiff boom cranes can be delivered within a broad range of certifications and numerous optional features. Stiff boom cranes, the boom type is fixed, are typically used in dock, on fixed installations and in harbor conditions with its stability. OUCO Marine/Offshore Stiff boom cranes are with low cost, easy operation and high efficiency on different working conditions.


FEATURES
 In certain situations a stiff boom crane even has a superior ability to reach over obstructions such as fences or walls where other cranes may fail.
 Not only are the important moving parts of the stiff boom protected inside the machinery, they are also less strained when lifting a load, as energy goes to its winch first, then to the lift cylinder, and then the actual crane structure.


Technical Parameters Genernal Arrangement




SWL	6T@10M
MAX WORKING RADIUS	10m
MIN WORKING RADIUS	3m
HOISTING SPEED	0~10m/min
HOISTING HEIGHT	20m
SLEWING SPEED	~0.8r/min
SLEWING ANGLE	360°
LUFFING TIME	~ 45s
EXTENSION TIME	~150s
WORKING CONDITION	TRIM                   ≤2° HEEL                   ≤5°
ELEC-MOTOR POWER	Y160K-4-H
POWER	15kw
Speed	1460r/min
POWER RESOURCE	AC415V/50HZ
PROTECT CLASS	IP56
INSUKATE CLASS	F
WORKING TYPE	S1

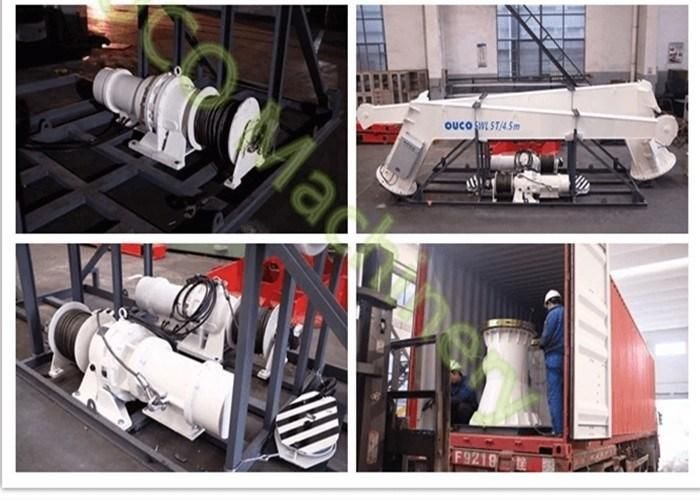

Packing & Shipping
Our company provides professional packaging and transportation for the products.




Our Certification

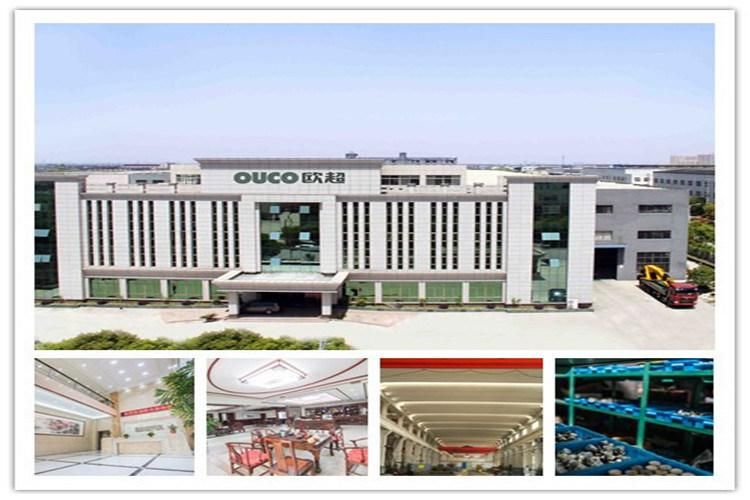

Our Company



With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.

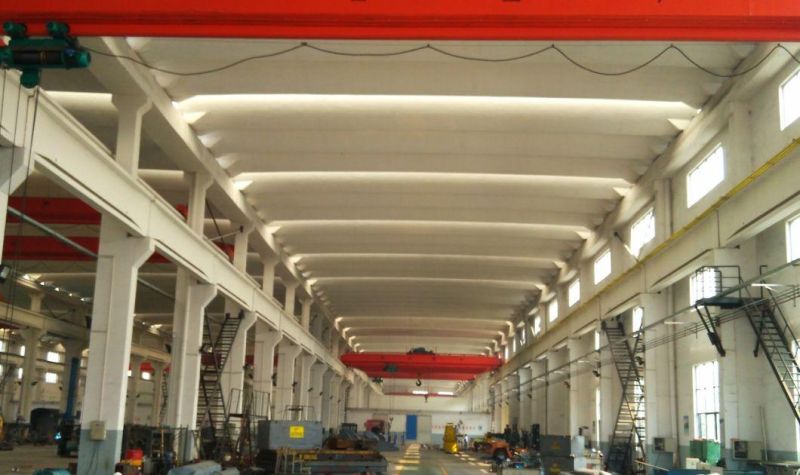

Workshop
Our company has modern production factory and experienced production workers.Modern operation technology and strict supervision system guarantee the quality of products.




Once Cooperation Be Friends Forever
Our company participates in various exhibitions every year and presents our products to partners and customers around the world.





We have our own factory and welcome friends from all over the world to visit us.Once Cooperation Be Friends Forever.





FAQ
1. Q:Can this type work in hazardous environment?
    A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Q:Can you provide the serious lifting tools?
    A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. Q:How can we install the crane?
    A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Q:Safety device
    A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
