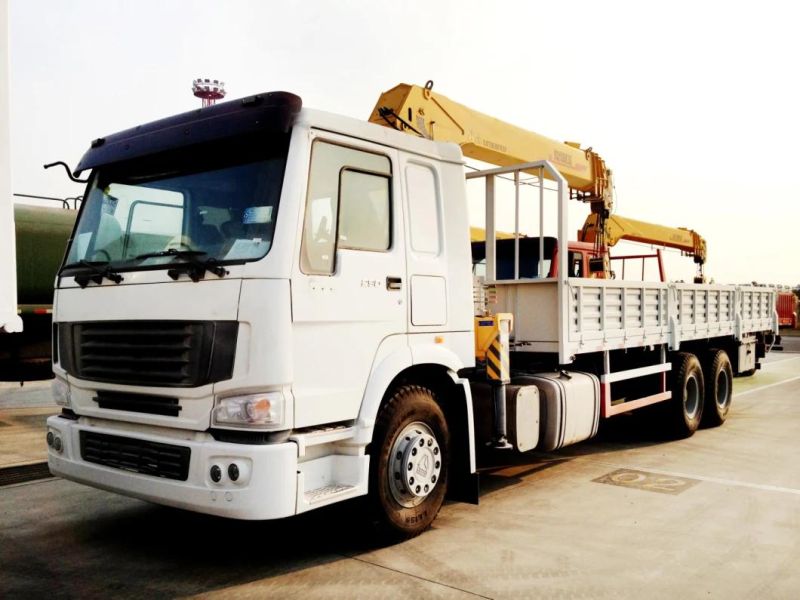

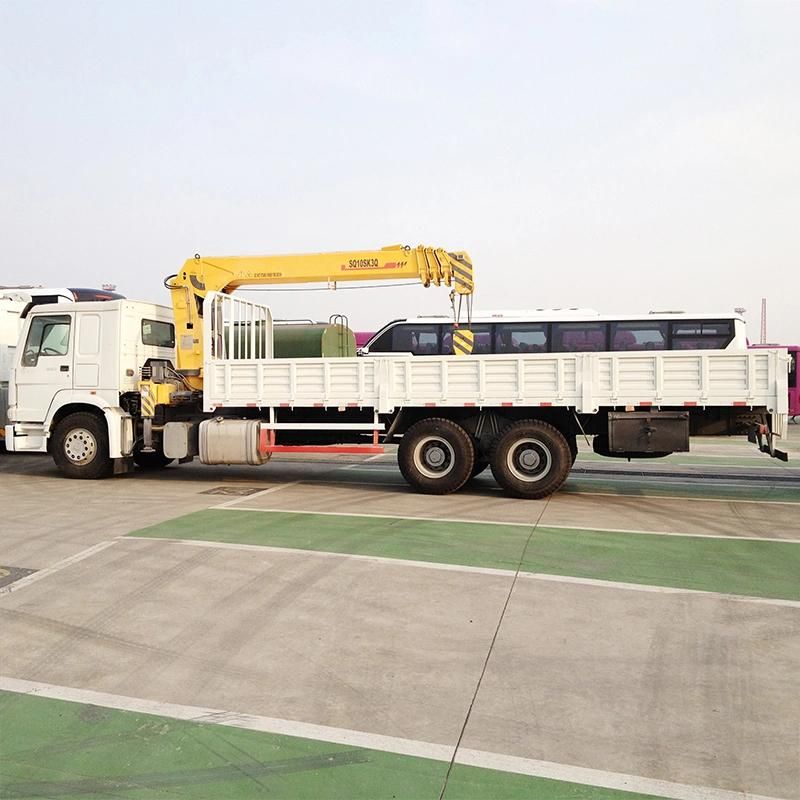

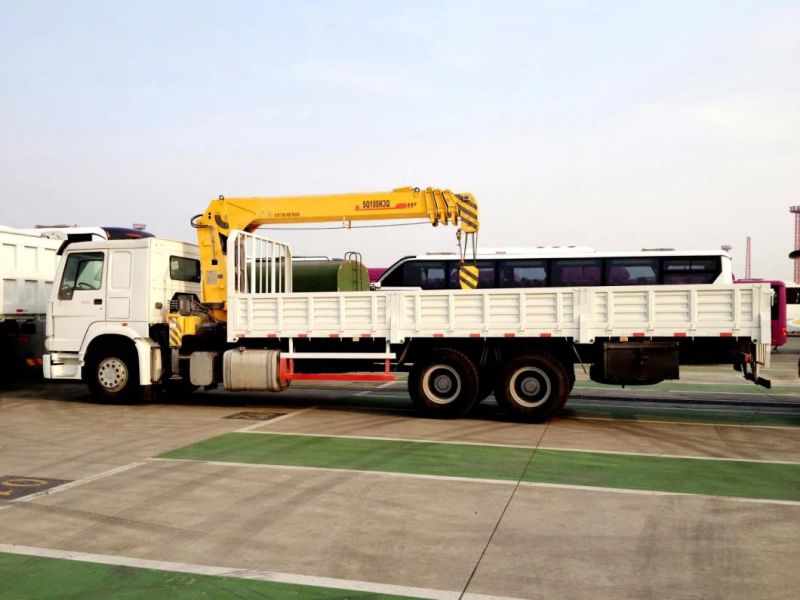

• Model NO.：SQ10ZK3Q
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Application：Construction
• Rated Lifting Moment：30t.M
• Span：5.272m
• Weight：3477 Kg
• Max Lifting Moment：20 T.M
• Max Lifting Capacity：12000 Kg
• Oil Tank Capacity：160L
• Rotation Angle：(360deg)All Rotation
• Installation Space：1400mm
• Extension Length：9780mm
• Tip Capacity：1700 Kg
• Rated Pressure of Hydraulic System：30 MPa
• Max Oil Flow：55L,Min
• Max. Lifting Height：9.78m
• Working Radius：7.9m
• Transport Package：Nude Packing
• Specification：SQ10ZK3Q
• Trademark：Truck crane
• Origin：Jiangsu, China
• HS Code：8705109200
• Production Capacity：1000 Unit,Units Per Month

Product OverviewProduct ParamentersModelSQ10ZK3QUnitMax Lifting Moment20t.mMax Lifting Capacity10000kgRecommend Power Needed At Recommend Oil Flow28kwMax Oil Flow of Hydraulic System40L/minRated Pressure Of Hydraulic System28MPaOil Tank Capacity160LRotation Angle(360°)All Rotation^.Crane Weight3477kgInstallation Space1150mmChoice of ChassisDFL1250A9 ; CA1240PK2L7T4EA81; HFC1202KR1K3; EQ5201GFJ6; CA1200PK2L7T3EA80; BJ1317VNPJJ-S5; BJ5253ZKPJJ; CA1253P7K2L11T1E ; EQ1252GFJ; DFL1253AX;SQ10ZK3Q Lifting capability diagramWorking radius (m)24.175.997.879.75Lifting capacity (kg)10000 4600305022801700
