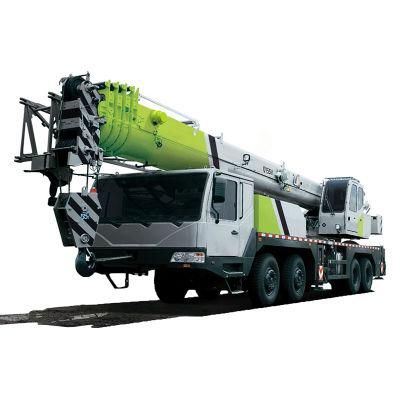

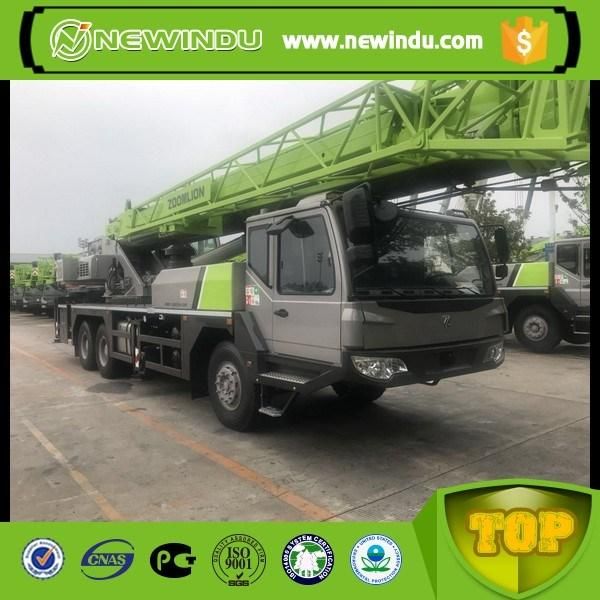

Zoomlion Qy35V 35 Ton Truck Crane
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service:Spare Parts for Free
- Warranty:One Year
- Certification:GS, RoHS, CE, ISO9001
- Condition:New
- Maximum Lifting Height:30-40m
- Maximum Lifting Weight:>16t
Base Info
- Model NO.:QY35V
- Shaft Number:3
- Crane Jib:Three-Arm
- Type:Folding
- Max. Lifting Height:42m
- Hydraulic Parts:Telescopic Boom Mobile Crane Made
- Rated Lifting Moment:240 Kn*M
- Span:7.6m
- Max. Lifting Load:3t
- Operate System:Computer Board Control
- Boom Length:18meters
- Fully Extended Boom:95meters
- Fully Extended Boom+Jib:45.25meters
- Total Weight in Travel:29.7ton
- Transport Package:Bulk Vessel
- Specification:35 ton
- Trademark:Zoomlion
- Origin:Hunan
- HS Code:8004920
- Production Capacity:50
Description
Working performance
1
Max. rated lifting weight × working radius
kg.m
35000×3.0
2
Max. lifting torque of basic boom
kN.m
1132
3
Max.lifting torque of longest main boom
kN.m
617.5
4
Max. lifting height of longest main boom
m
40.5
5
Max. lifting height of jib
m
48.5
Dimensions
6
Outline dimensions (L×W×H)
mm
12900×2500×3465
7
Distance between outriggers (longitudinal × transversal)
mm
5360×6100
8
Main boom length (completely retracted - completely extended)
m
10.6~40
9
Jib length
m
8
10
Main boom angle of elevation
°
-2~80
11
Swing range
360°continuously
Working speed
12
Max.speed of single rope on the drum of main winch
m/min
120
13
Boom extension time
s
80
14
Boom derricking up time
s
40
15
Swing speed
r/min
0~2.2
Mass
16
Complete vehicle kerb mass
kg
31870
17
Front axle load
kg
7000
18
Rear axle load
kg
25000
Traveling
19
Max. traveling speed
km/h
78
20
Max. gradeability
%
37
21
Min. turn radius
m
11
22
Min. ground clearance
mm
220

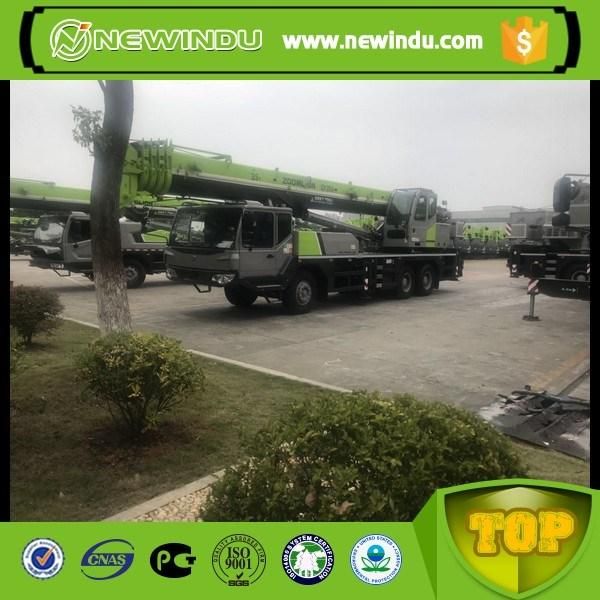

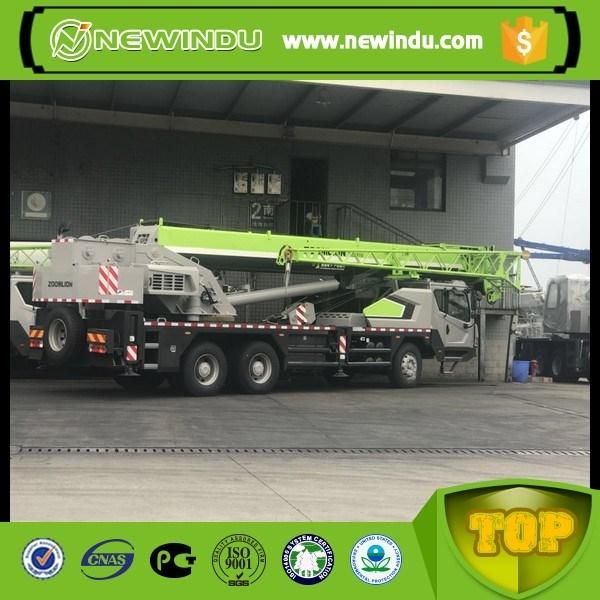

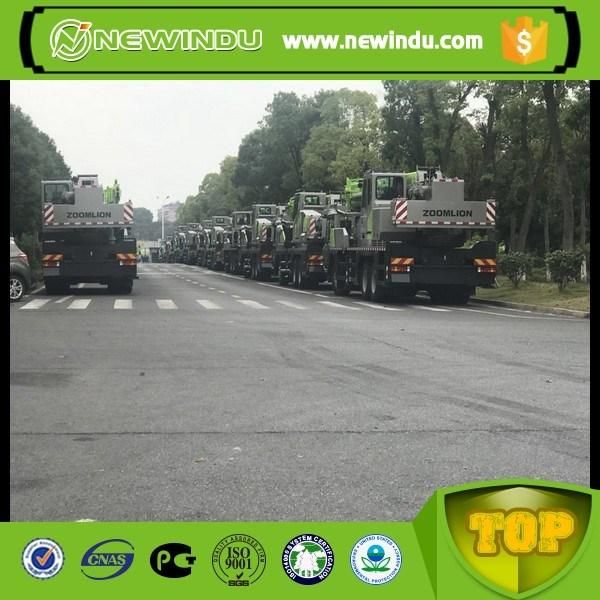

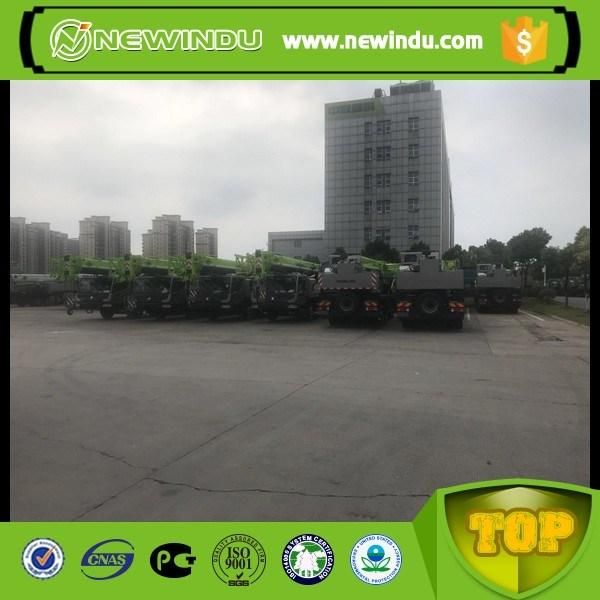

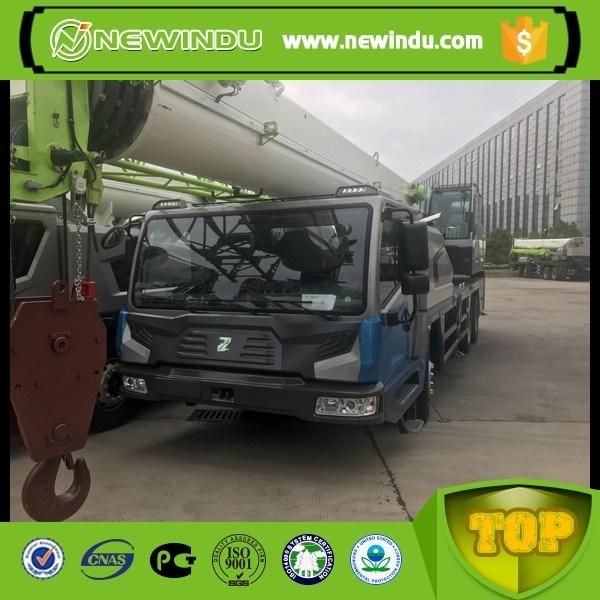

Pictures






Company Information
Newindu Construction Engineering (Shanghai) Co., Ltd. is professional in construction machinery for nearly 12 years, exporting with good quality and low price, having excavator, truck crane, bulldozer, wheel loader, motor grader, drilling rig, dump truck, road roller, forklift, reach stacker, and also including the spare parts, etc.
