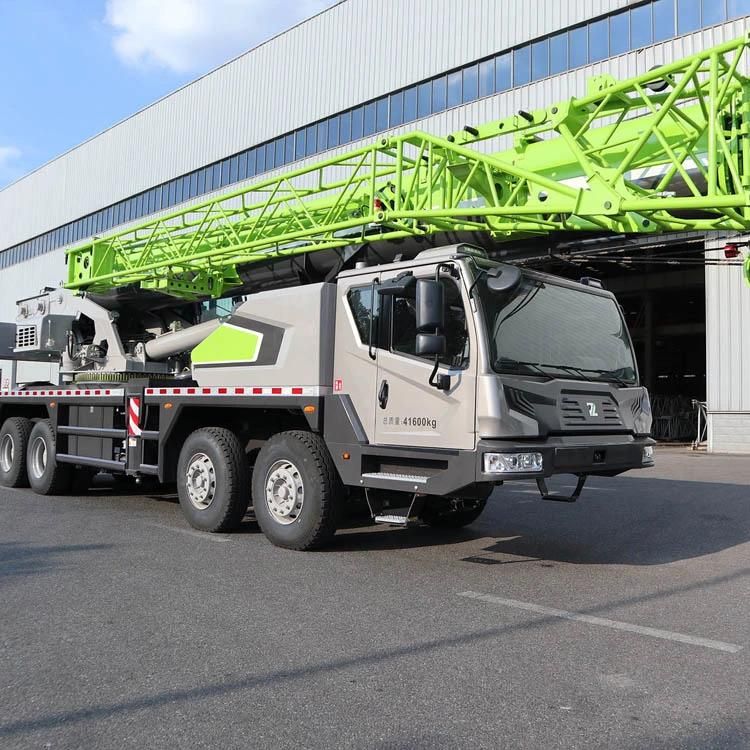

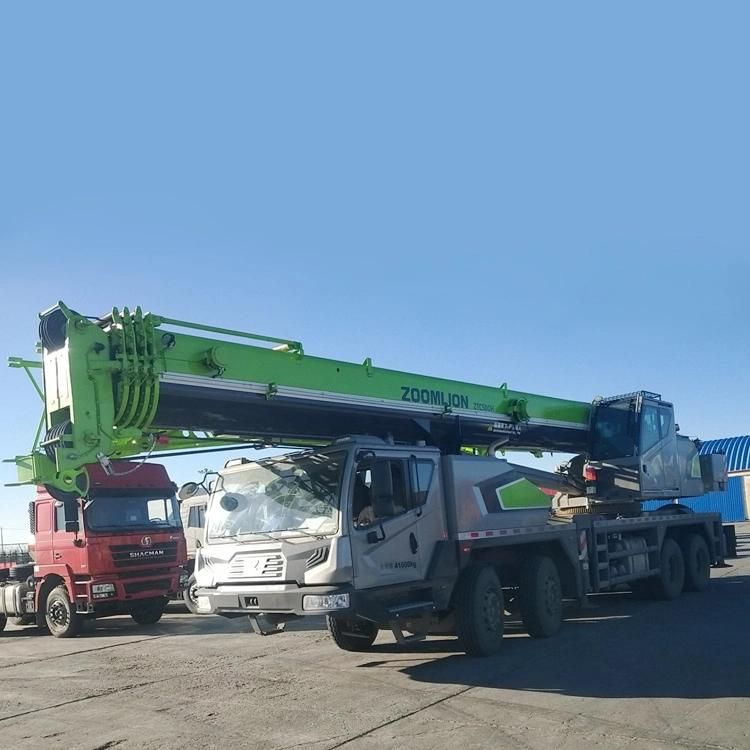

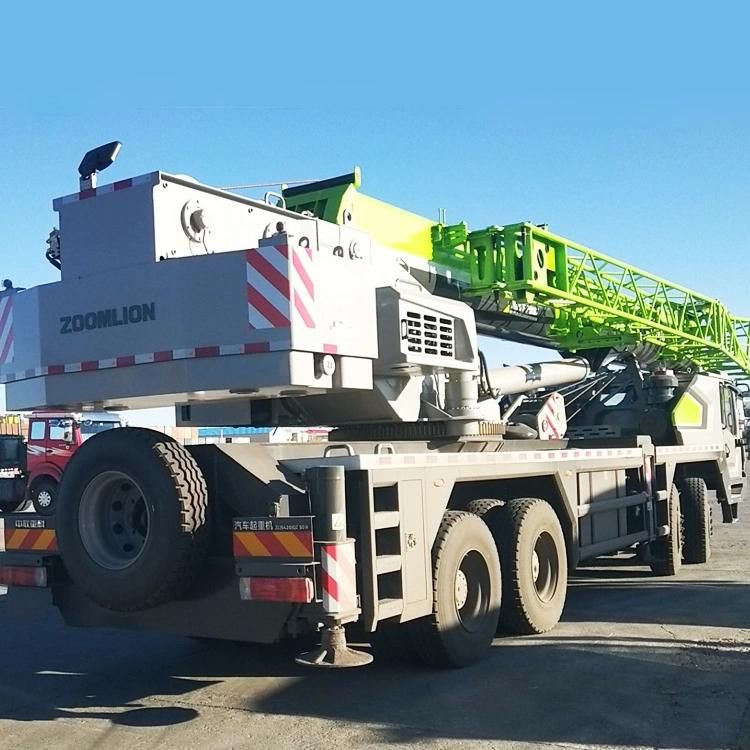

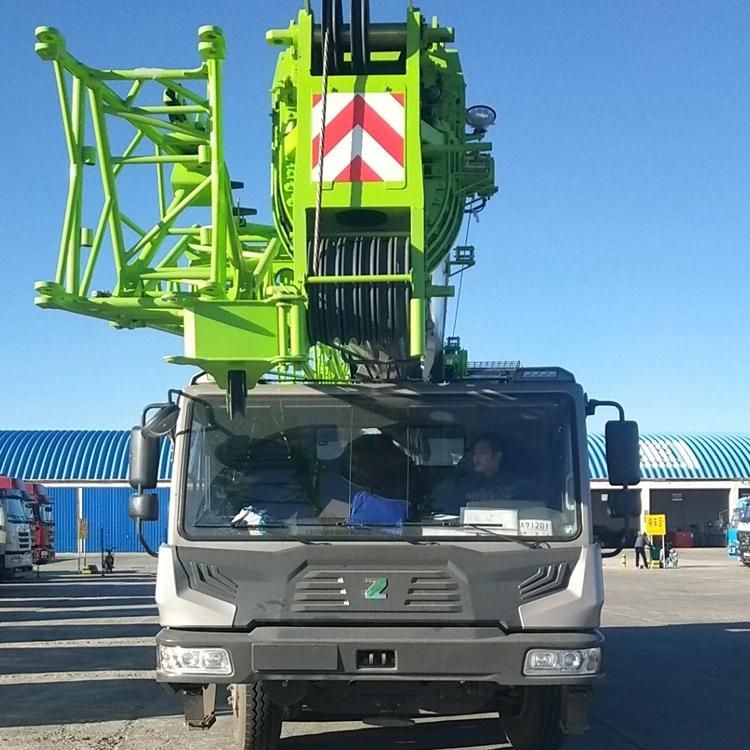

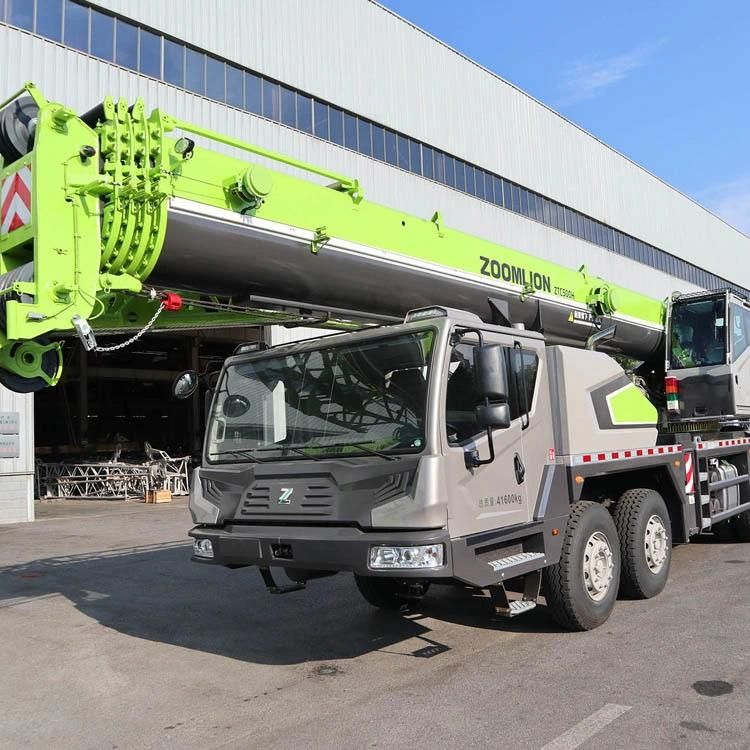

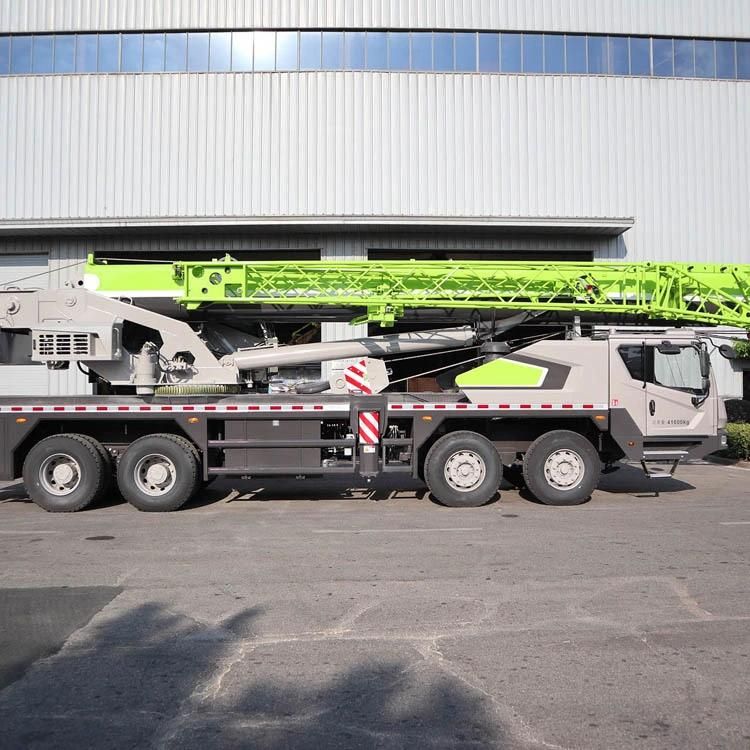

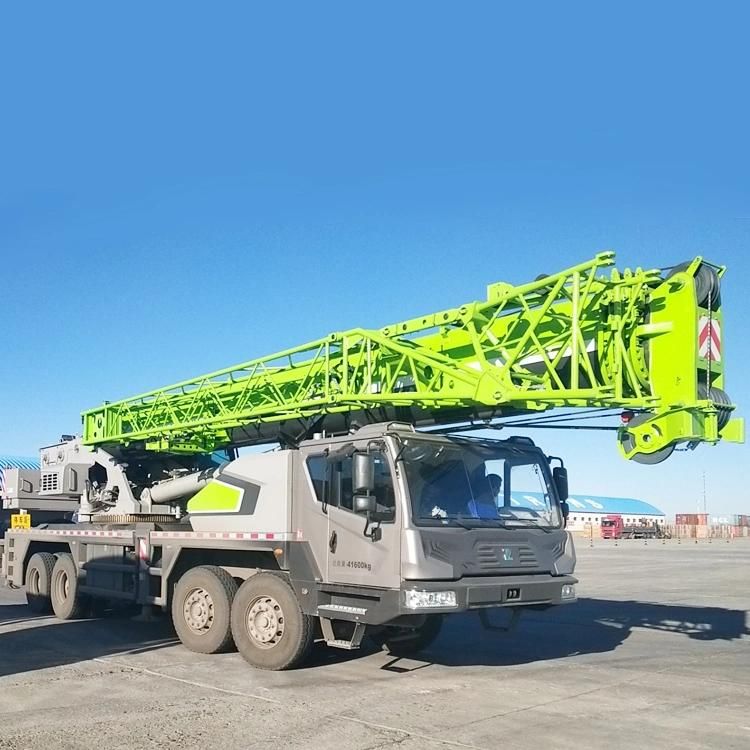

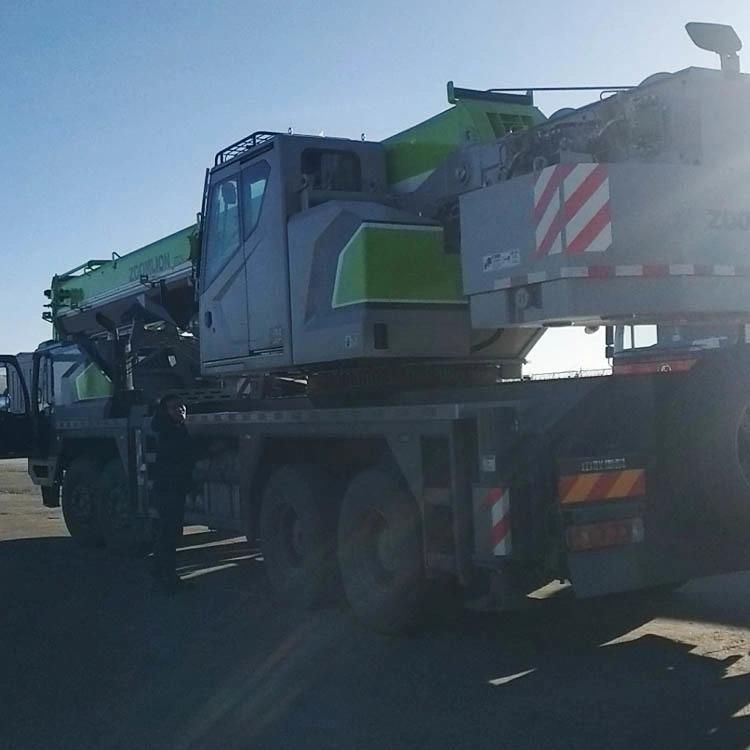

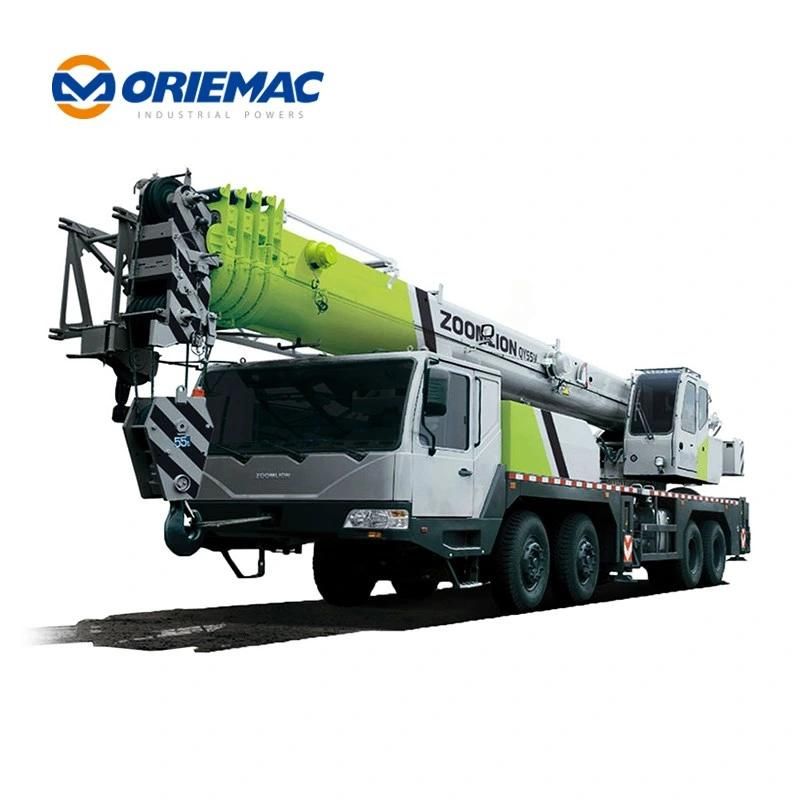

50ton Mobile Truck Crane Ztc500h552
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001, ISO9001: 2000
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：4
- Crane Jib：Four-Arm
Base Info
- Model NO.：ZTC500H552
- Type：Straight Arm
- Rated Loading Capacity：50ton
- Rated Lifting Moment：1764kn.M
- Max. Lifting Height：57.6 M
- Span：30m
- Rated Power：247kw
- Max. Grade Ability：40%
- Power Source：Hydraulic
- Sling Type：Wire Rope
- Application：Construction Usage
- Engine：Euro III, IV
- Transport Package：Nude Packing
- Specification：50ton
- Trademark：ZOOMLION
- Origin：Jiangsu, China
- Production Capacity：500,Month
Description
ItemUnit Parameter Outline Dimensions Overall length mm 13750 Overall width mm 2800 Overall height mm 3520 Wheel base 1st and 2nd Axle mm 1470 2nd and 3rd Axle mm 4105 3rd and 4th Axle mm 1350 Track Front wheel mm 2304 Rear wheel mm 2075 Weight Total vehicle mass in travel configuration kg 41000 Axle load 1st and 2nd Axle kg 15000 3rd and 4th Axle kg 26000 Power Engine rated power kw/(r/min) 247/2200 Engine rated torque N.m/(r/min) 1350/1400 Engine rated speed r/min 2200 Travel Performance Max. travel speed km/h 75 Min. travel speed km/h 3 Min. turning diameter m 24 Min. turning diameter at boom tip m 26.8 Min. ground clearance mm 261 Approach angle ° 17.5 Departure angle ° 11.6 Braking distance (at 30 km/h ) m ≤10 Max. grade ability % 40
