• Model NO.：ZCC850H
• Max. Lifting Capacity × Radius：80×4
• Max. Lifting Capacity on Fixed Jib：7 T
• Max. Lifting Capacity of Luffing Jib：15 T
• Max. Length of Main Boom with Fixed J：49+18m
• Main Boom Length：13 - 58m
• Fixed Jib Length：6 - 18 M
• Luffing Jib Length：16m-34m
• Transport Package：Nude Package
• Specification：80 ton
• Trademark：ZOOMLION
• Origin：Hunan, China
• HS Code：8426491000
• Production Capacity：100pieces,Month

ItemUnitValueRemarksMax. lifting capacity ×    radiust × m80×4 Max. lifting capacity on    fixed jibt7 Max. lifting capacity of    luffing jibt15 Main boom lengthm13 - 58 Fixed jib lengthm6 - 18 Max. length of main boom    with fixed jibt49+18 Luffing jib lengthm16m-34m Max. main boom +max.    luffing jibm43.5m+34m Derricking angle.30 - 80 Fixed jib angle.10, 30 Max. rope  speed

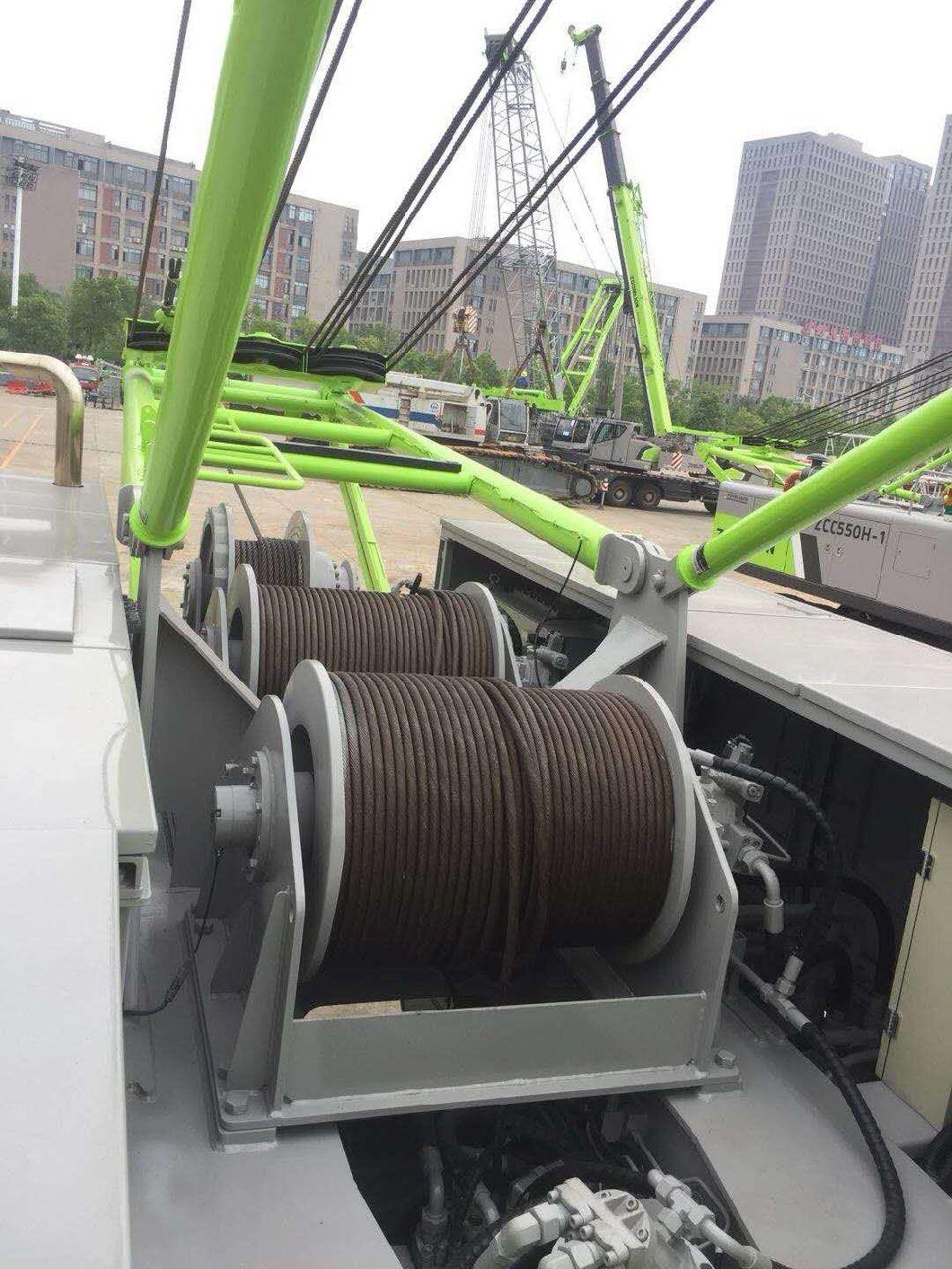

     of winchesHoisting winch 1m/min125/110With optional free-fall functionHoisting winch 2125 Derricking winch93 Slewing speedrpm

0-2

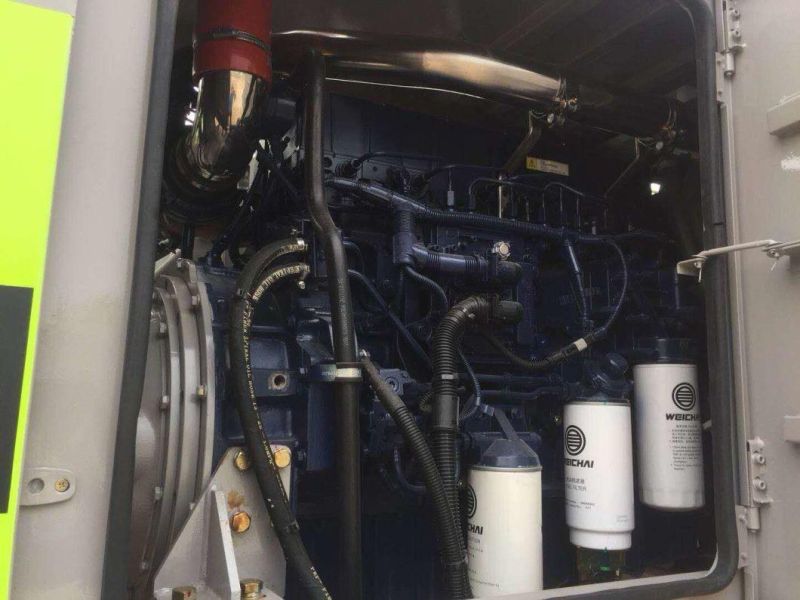

 Traveling speedkm/h0-1.57 Max. gradeability%30With basic boom and    counterweight over frontGround pressureMpa0.083 Deadweightt72.8With basic boomCrane counterweightt27 Overall dimensions(L × W    × H)m13500×5000 (3400) ×3200With A-frame and main    boom pivot sectionEngineModel WP10.270N

Weichai  Power

Rated power / rotational    speedkW/r/min199/1900 Max. output torque    /rotational speedNm/r/min1270/1200-1500 Exhaust emission National Stage II Distance between track    center × crawler contact length × crawler widthmm2600 ×5440×800Crawler carrier    retracted4200 ×5440×800Crawler carrier    extended NoiseNoise level outside operator's    cab during operation(dB)≤107 Noise level in    operator's cab during operation≤79 More pictures:
