• Model NO.：25 Ton Rtg Rubber Tyre Container Lifting Gantry Cr
• Operation Form：Remote Control
• Type：Shipbuilding Gantry Crane
• Main Girder Form：Double Girder
• Capacity Under Hook ( Main Lift )：85ton
• Capacity Traverse：70ton
• Traverse Weight：15ton
• Hooks Transported：with Load Trolleys
• Power Supply：Diesel Genset Mounted on The Crane
• Control：Radio Remote Control + Emergency Control Unit
• Protection：Automatic Overload Protection
• Wheel：4 Swivel Wheels
• Double Lifting Speed：No Load , Full Load - 5.2 , 2.5 M , Min
• Ravel Speed：2.2 Km , H
• Wheel Pressure on The Coating：10 Kg , Cm2
• Transport Package：Export Packing
• Specification：20 or 40 feet container
• Trademark：Nucrane
• Origin：China
• Production Capacity：500sets,Year

Basic Info.

Model NO. 25 Ton Rtg Rubber Tyre Container Lifting Gantry Cr Operation Form Remote Control Type Shipbuilding Gantry Crane Main Girder Form Double Girder Capacity Under Hook ( Main Lift ) 85ton Capacity Traverse 70ton Traverse Weight 15ton Hooks Transported with Load Trolleys Power Supply Diesel Genset Mounted on The Crane Control Radio Remote Control + Emergency Control Unit Protection Automatic Overload Protection Wheel 4 Swivel Wheels Double Lifting Speed No Load / Full Load - 5.2 / 2.5 M / Min Ravel Speed 2.2 Km / H Wheel Pressure on The Coating 10 Kg / Cm2 Transport Package Export Packing Specification 20 or 40 feet container Trademark Nucrane Origin China Production Capacity 500sets/Year

Product Description

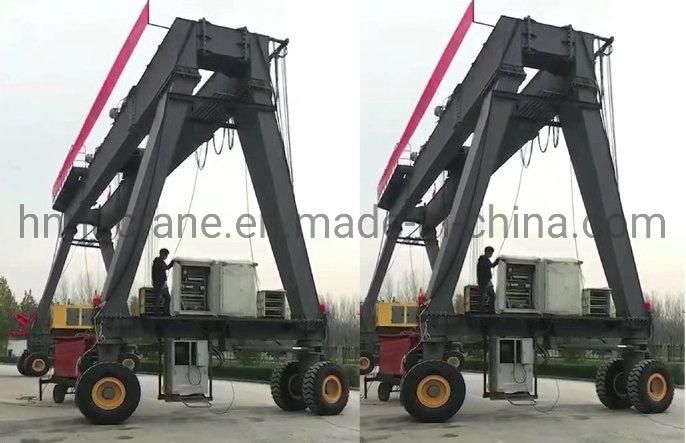

New Design Port 25 Ton Rtg Rubber Tyre Container Lifting Gantry Crane Price

Tyred gantry crane is mainly used for hoisting track board, sleeper, formwork, track, rail and fork road in the construction of ballast-less track of high-speed railway and passenger dedicated line. It mainly has the following characteristics:
1. High reliability, low fuel consumption, large torque reserve coefficient engine, reasonable power matching and excellent cooling system.
2. The span can be changed under the condition of no disintegration to meet the construction requirements of different line spacing and different span of single line.
3. The height of the column is variable, which can meet the construction site with transverse slope.
4. Reasonable load distribution, four-wheel support, four-wheel balance, hydraulic brake, reliable and stable.
5. The key hinge points are sealed and lubricated with dustproof, and the pin shaft and shaft sleeve have long service life.
6. Good expansibility of equipment function, the sphanger can be automatically arranged into any transverse and longitudinal angles, and can be equipped with various track plate sphanger, pillow device, tool rail pliers and other hoisting tools.
Fully closed driver's cab, sound insulation and noise reduction, wide vision; Reasonable arrangement of instruments and operating devices, real-time monitoring, easy operation.
At present, our company can produce 20-300 tons of tyred fixed or variable span gantry crane according to customers' requirements

Note: The above data is only for reference. Lifting capacity, span, lifting height, spare parts brand could be customized according to your requirements.

The main features are as follows:
1. High reliability, low fuel consumption, large torque reserve coefficient engine, reasonable power matching and excellent cooling system.
2. The span can be changed under the condition of no disintegration to meet the construction requirements of different line spacing and different span of single line.
3. The height of the column is variable, which can meet the construction site with transverse slope.
4. Reasonable load distribution, four-wheel support, four-wheel balance, hydraulic brake, reliable and stable.
5. The key hinge points are sealed and lubricated with dustproof, and the pin shaft and shaft sleeve have long service life.
6. Good expansibility of equipment function, the sphanger can be automatically arranged into any transverse and longitudinal angles, and can be equipped with various track plate sphanger, pillow device, tool rail pliers and other hoisting tools.
Fully closed driver's cab, sound insulation and noise reduction, wide vision; Reasonable arrangement of instruments and operating devices, real-time monitoring, easy operation.
Using the most advanced systems and spare parts for mobile equipment to minimize potential leaks.
Mobile Rubber Type Gantry Crane turning pivot is equipped with slewing bearing, which can simplify maintenance operations, thus reducing maintenance costs and prolonging the service life of the equipment.

With the movement of flashlight and acoustooptic alarm, everyone in the working area will know that the crane has been started, so as to better ensure the safety of operators and other workers.
Operation Mode Of Rubber Type Gantry Crane: Wireless remote control, cab. Two operation modes can be both equipped.


Wheel gantry crane and rail gantry crane are two commonly used lifting equipment in large gantry crane, so which one is more economical and practical, convenient and fast? Analyze the characteristics and differences of tyred gantry crane and track gantry crane:

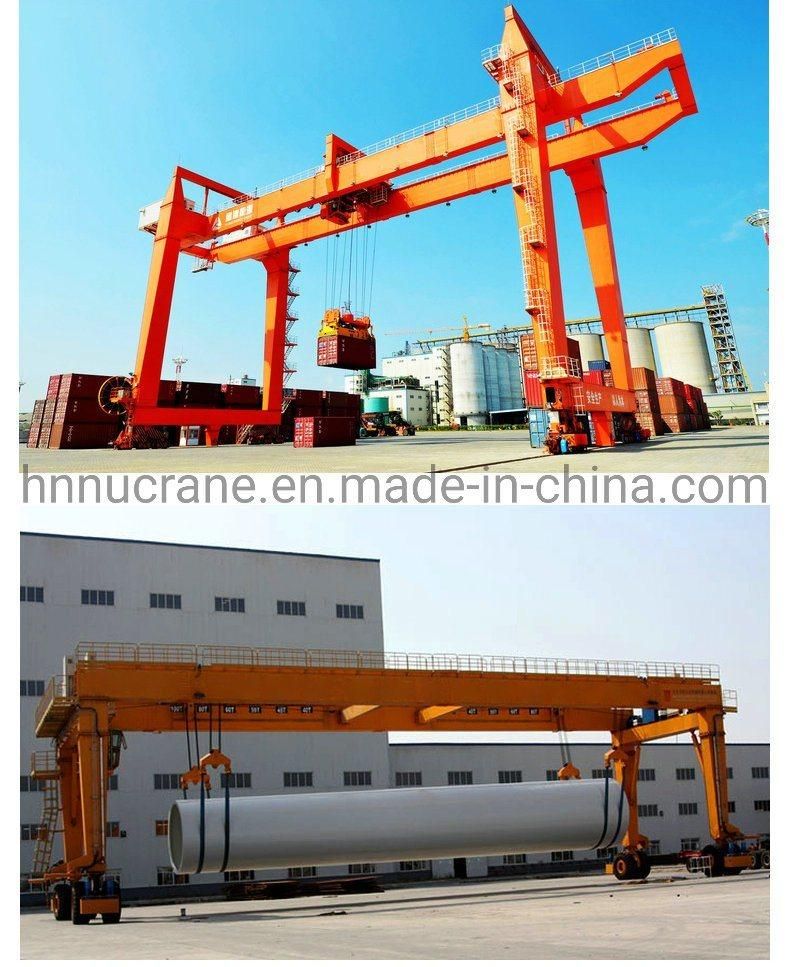

Gantry crane is mainly used for outdoor yard, yard goods, bulk cargo loading and unloading operations. Its metal structure is like a portal frame, and two legs are installed under the bearing girder, which can walk directly on the track on the ground. The two ends of the girder can have overhanging cantilever beams. The gantry crane has the characteristics of high site utilization rate, wide operating range, wide adaptability and strong versatility, etc. It is widely used in the port freight yard. Rail gantry crane and tire gantry crane are the two most widely used gantry cranes. Which one is more economical when the factory chooses gantry crane? Is one of the biggest concerns of customers.

The gantry crane is the rail type container crane, which has the advantages of energy saving and environmental protection, high reliability, large lifting capacity, small maintenance workload, easy to realize automatic operation and so on. However, its biggest disadvantage is that it is not convenient to transfer the position.

Because the large truck of the tyre gantry crane adopts the wheel type to walk, it can be flexible and flexible to cross the truck and work in the field. Its power system is generally imported from foreign countries, its power supply is diesel generator sets; Rail system for gantry crane is powered by electricity, now the market is the price of diesel power three times, and maintain a tyre crane ineffective idle every day, only consider from the diesel consumption, you need to nearly 800 yuan, the light on the cost of energy consumption, tyre crane rail crane is almost 2 times, the maintenance cost is extremely expensive.

Track type: longer service life, a wide range of uses, is more common

Disadvantages: because the track is stipulated so the use of the range is not free to adjust the tyres are different

Tyred: it not only has the advantages of rail gantry crane to improve the utilization rate and stacking capacity of the yard, but also has the advantages of straddle truck mobile flexibility, can transfer the field operation, and it has the advantages of low energy consumption, low maintenance cost, environmental protection, etc.

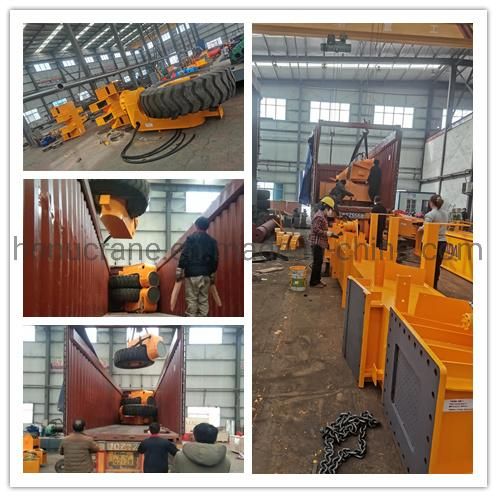

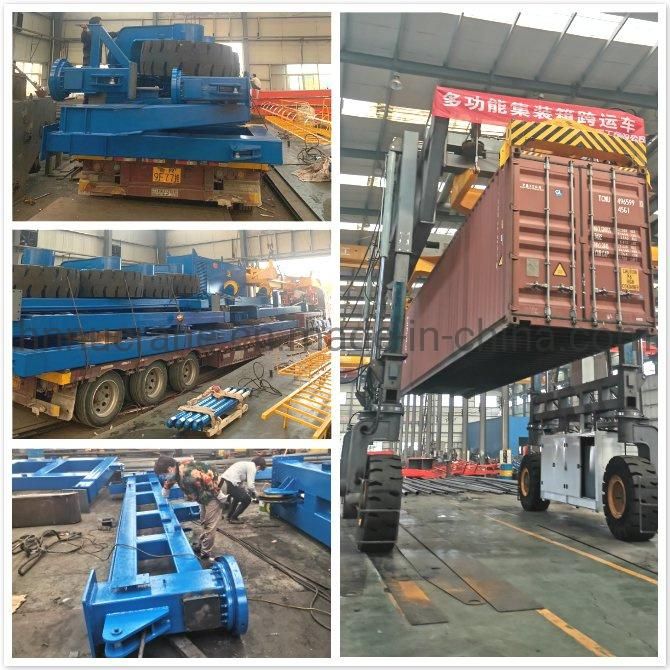

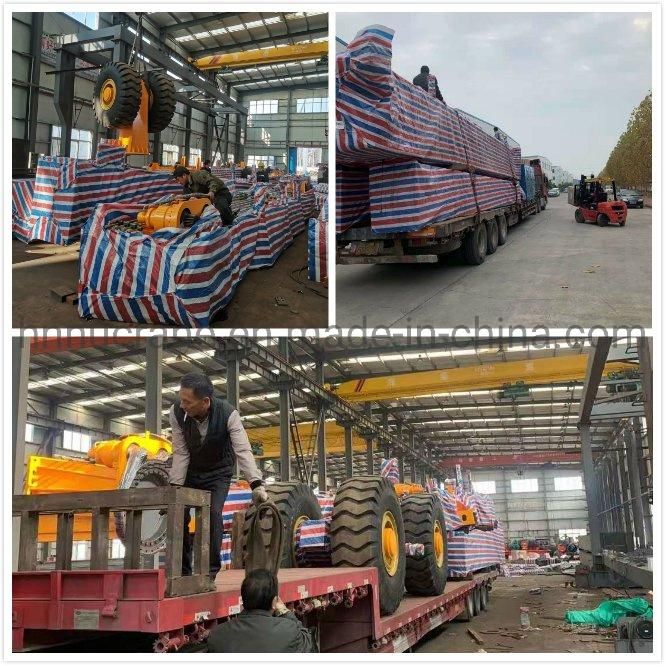

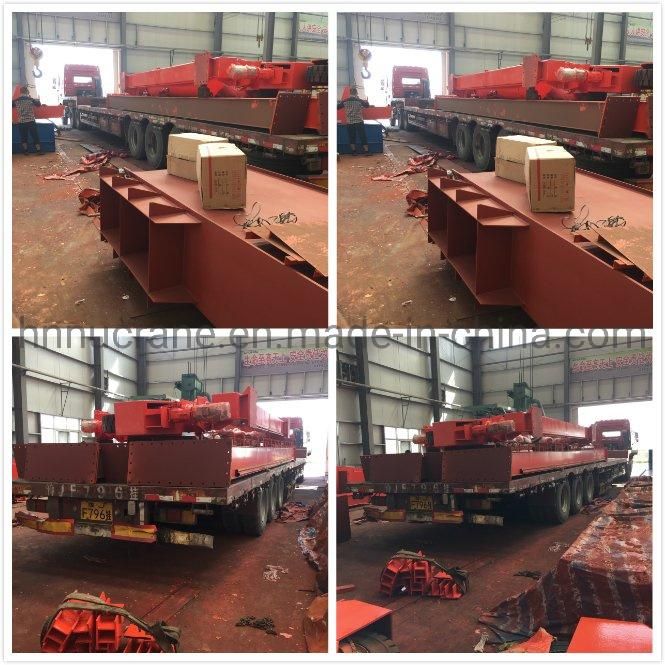

Packaging &  Delivery Details

1. Electrical components are packed in high-quality plywood boxes to reduce deformation during transportation.
2. Large metal parts are packed in plastic woven cloth to reduce wear during transportation.
3. If the size is too large, it is usually transported in bulk carriers or containers after truncation.
4. Adopt a transportation method that reduces costs for you and maintains crane performance.


Rubber Type Gantry Crane Technical Data Need To Be Confirmed

1. Lifting capacity: Includes the hoisting material load and the spreader(grab, hook etc) weight.

2. Lifting height: Includes the sum of the lifting height above the rail and below the rail.

3. Working speed: Should be determined on the basis of the required productivity.

Model Selection Parameters Needed

-- Single Girder / Double girder

-- The object dimension (length x width x height)

-- The hoisting height from the ground
