Crane

Home > Product > Truck Crane

Sany Stc75 75 Tons Used Truck Crane with Euro III for Second Hand Crane

SANY GROUP CO., LTD.
  • After-sales Service：1year
  • Warranty：1year
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：Used
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：75ton

Base Info

  • Model NO.：STC75
  • Shaft Number：2
  • Crane Jib：Two-Arm
  • Type：Straight Arm
  • Transport Package：Export Package
  • Specification：STC750
  • Trademark：SANY
  • Origin：China
  • Production Capacity：5000PCS Per Month

Description

Basic Info.

Model NO. STC75 Shaft Number 2 Crane Jib Two-Arm Type Straight Arm Transport Package Export Package Specification STC750 Trademark SANY Origin China Production Capacity 5000PCS Per Month

Product Description

SANY STC750 75 Tons heavy duty 2020 Year Truck Mounted Crane

High Lights:

1. Made in 2010 Year

2. Emission: EURO III

3. Original factory renovation

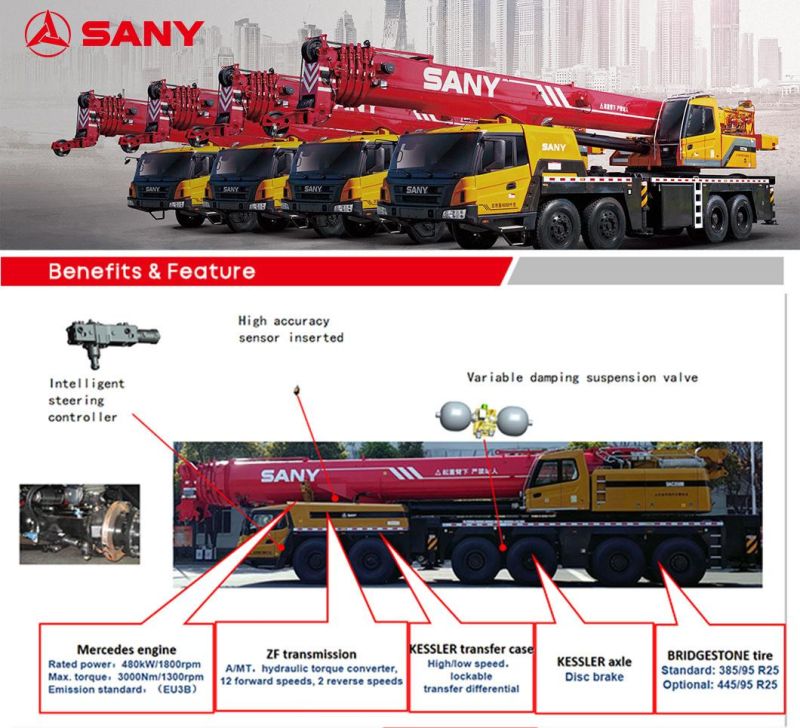

Benefits & features

Operator's cab
Fabricated from corrosion -resistant steel, equipped fullcovered flexible decorations,front window door could open,adjustable seat provide comfort for the driver.

Boom
Five sections boom, hexagonal crosssection ; telescopic mechanism assis ted by two cylinders and sheaves.

Counterweight

4.5t, mounted on the turntable through connecting bolts. 2.0t active counterweight for option.

Hydraulic system

Load feedback system (Kawasaki main pump+ US Husco main valve),regulating main pump through load feedback pressure, to make pressure and flow adjust load, pivot pressure through pivot handle to realize infinite speed.

Safety devices

Colorful LCD , integrated load moment indicator, hook load, rated load, boom length, angle, lifting height. Load charts and working parameter set-up, equipped with safety-limit function.

Main winch

Variable displacement piston motor, hydraulic braking system, equipped Rexroth balance valve , max speed(single rope) 130m/min, rope length 235m.

Aux. winch
Variable displacement piston motor, hydraulic braking system, mounted balanced valve. Max speed(single rope) 130m/min, rope length 130m.

Elevation
Dead weight - dependent elevation control, stable operation and fine slowmotion.

Slew
Germany Rexroth constant displacement piston motor and reducer, slewing system composed of Husco slewing switch valve, max slewing speed 2r/min, constant closed brake.

Sany Stc75 75 Tons Used Truck Crane with Euro III for Second Hand CraneSany Stc75 75 Tons Used Truck Crane with Euro III for Second Hand Crane
Sany Stc75 75 Tons Used Truck Crane with Euro III for Second Hand Crane
Sany Stc75 75 Tons Used Truck Crane with Euro III for Second Hand CraneSany Stc75 75 Tons Used Truck Crane with Euro III for Second Hand CraneSany Stc75 75 Tons Used Truck Crane with Euro III for Second Hand Crane



FAQ

1: What kind terms of payment can be accepted?

A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?

A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?

A: 7-20 days after receiving the deposit.

4: What about the warranty time?

A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?

A: The MOQ is 1 pcs
