• Long Travel Speed：20 M,Min, 5,20 M,Min
• Stepless Speed Control：Available (Variable Frequency Control)
• Operation Method：Pendant, Remote Controller
• Applicable Work Duty：A3~A5
• Power Feeding：380V,400V,415V,440V
• Paint Color：Industrial Yellow
• Electrical System Brand：Siemens,Schneider,Chint
• Affiliate Documents：English Operation Manual, Wiring Diagram
• Application：Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage, Warehouse
• Tower Crane Type：Under Slewing Cranes
• Sling Type：Wire Rope
• Power Source：Electric
• Moving Type：Wheel
• Installation：Assembled
• Transport Package：Wooden Box, Plywood
• Specification：CE, ISO
• Trademark：Shengqi
• Origin：Xinxiang, Henan, China
• Production Capacity：15000 Per Year

Basic Info.

Long Travel Speed 20 M/Min, 5/20 M/Min Stepless Speed Control Available (Variable Frequency Control) Operation Method Pendant, Remote Controller Applicable Work Duty A3~A5 Power Feeding 380V/400V/415V/440V Paint Color Industrial Yellow Electrical System Brand Siemens/Schneider/Chint Affiliate Documents English Operation Manual, Wiring Diagram Application Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage, Warehouse Tower Crane Type Under Slewing Cranes Sling Type Wire Rope Power Source Electric Moving Type Wheel Installation Assembled Transport Package Wooden Box, Plywood Specification CE, ISO Trademark Shengqi Origin Xinxiang, Henan, China Production Capacity 15000 Per Year

Product Description

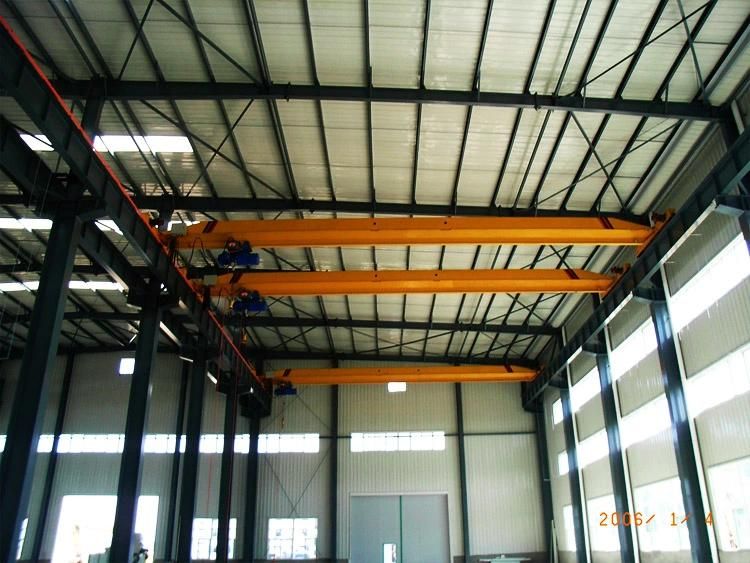

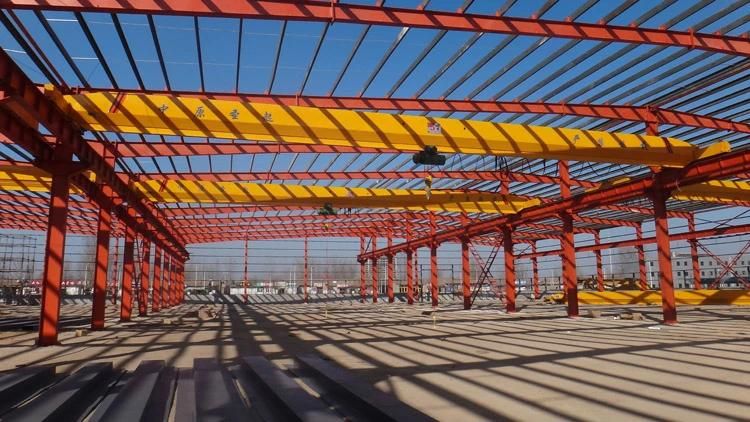

LD-A type single girder overhead crane 5 ton

 Brief Introduction:

 Single girder overhead crane is a kind of material lifting equipment which was hung on the top of the workshop, ware house and stock ground. Both of its ends are located on tall concrete pillars or metal stents. The bridge structure lies and runs on both sides of the elevated track, This type crane can take full advantages under bridge space of lifting materials and not hindered by ground equipment It's owns the largest number used lifting machinery.

 Specifications:

 LD-A type electric single-girder overhead crane is designed and manufactured according to standard JB/T1306-1994. It is usually fitted with single/double speed electric hoists. Its rated lifting capacity is 1t-20t, span is 7.5m~31.5m, applicable temperature is -25°C~ +40°C, and the humidity is no higher than 85%.

 Warranty:

 14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.

 2 years free spare-parts provided for better maintenances.

 Oversea experienced technician provide installation, commissioning and training services.

 Technical advisory for any time.
