• Model NO.：ZCC1100H
• Transport Package：Standard Package
• Specification：110ton
• Trademark：Zoomlion
• Origin：China
• HS Code：84264910
• Production Capacity：500,Month

Basic Info.

Model NO. ZCC1100H Transport Package Standard Package Specification 110ton Trademark Zoomlion Origin China HS Code 84264910 Production Capacity 500/Month

Product Description

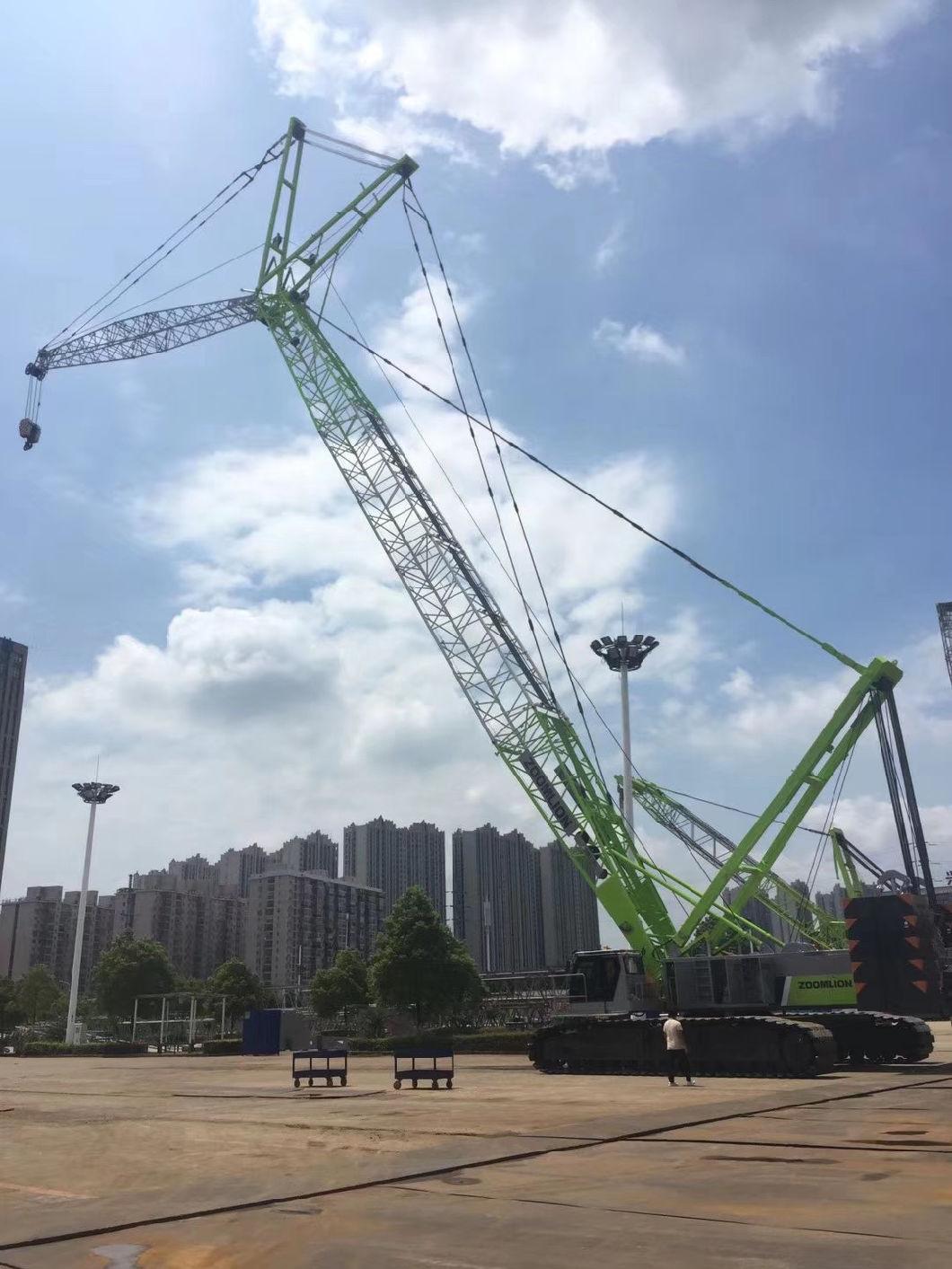

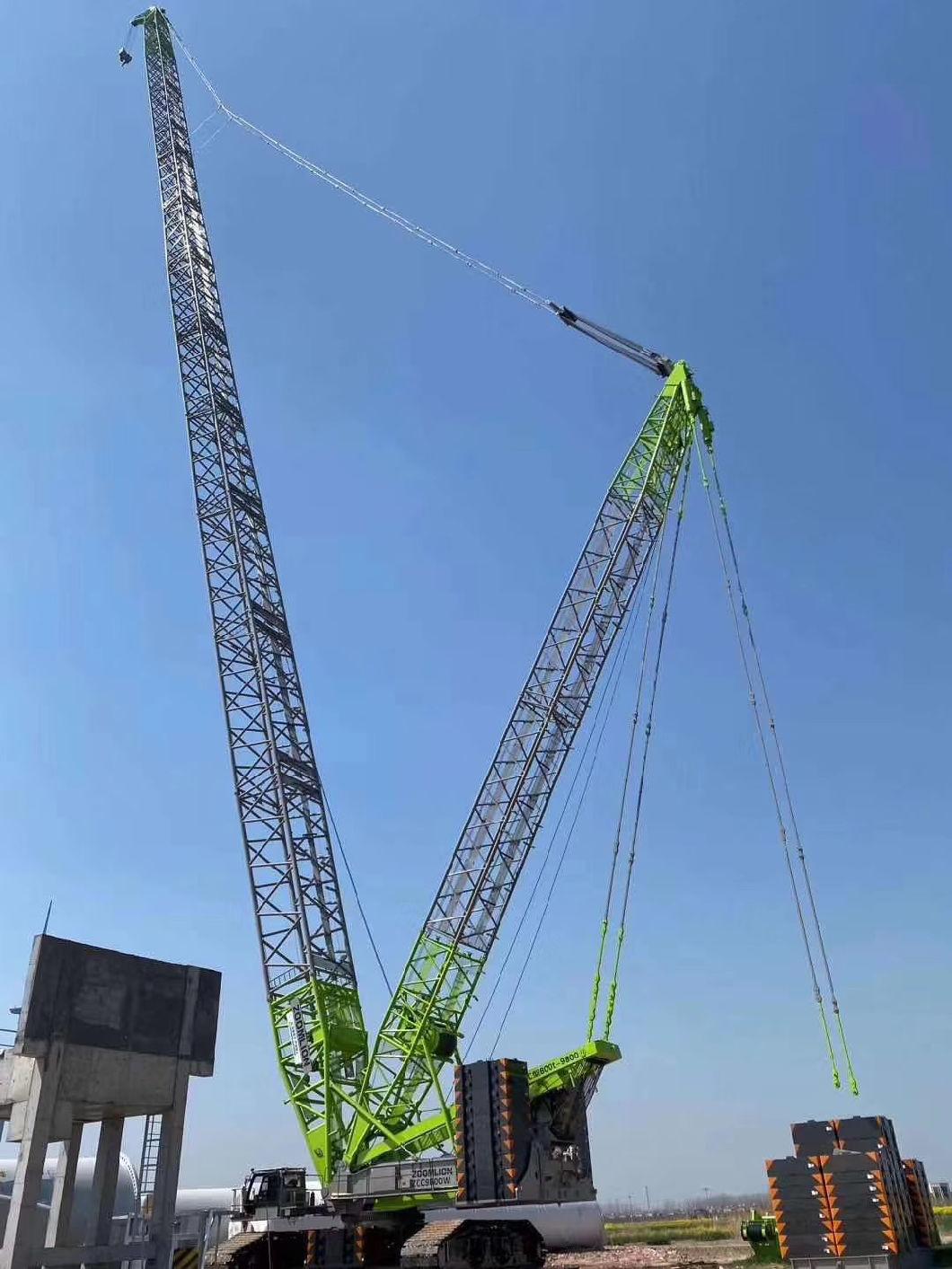

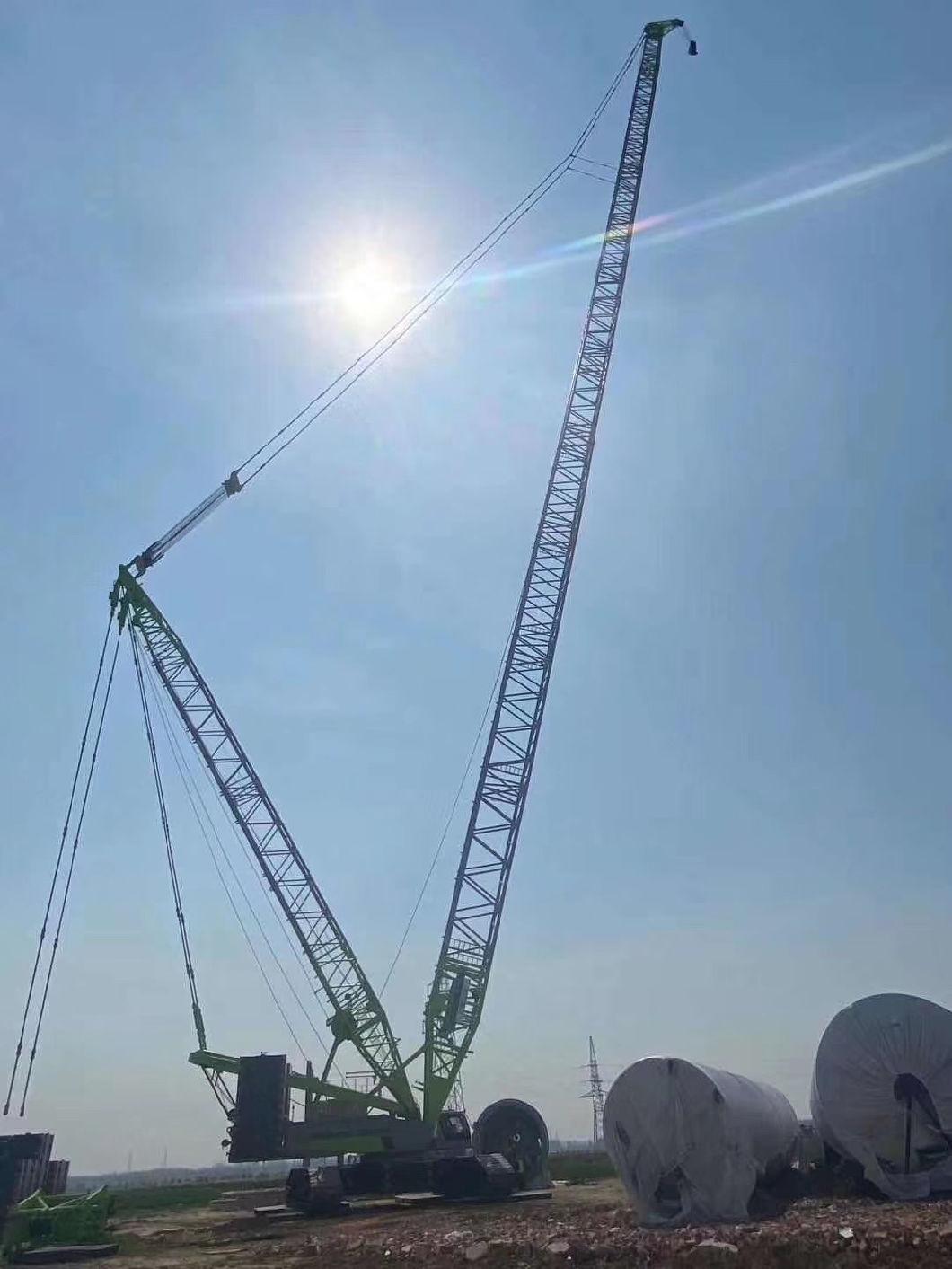

110 Ton Crawler Crane With EPA Tier4 In America ZCC1100H Mobile Crawler Cranes





Powerful self-assembly and dismantling function Loading vehicle - transportation as a whole dismantling crawler carriers for separate transportation
Loading Vehicle Dimensions And Weight Of Transport Units
The basic machine mainly consists of main boom pivot section,hoisting winches 1 and 2(inclusing wire rope),
derricking winch (including wire rope and derricking pulley block),left and right crawler carriers,etc. The designed
transport width is 11'2"(3.4m) and the weight is 99887lb(45.3mt).
The basic machine mainly consists of main boom pivot section,A-frame assy,hoisting winches 1 and 2 (including
wire rope),derricking winch (including wire rope and derricking pulley block),etc.The designed transport width is
11'2"(3.4m)and the weight is 63945lb (29mt).
The crane can assemble and dismantle the rear counterweight, central counterweight,and crawler carriers by itself.In
assembly mode,the load moment limiter must monitor the status of mounting cylinder in real time when it is used to
lift the load so as to ensure safe crane operation.Raise the whole vehicle by four support cylinders to unload the whole vehicle
from the low-loader.Assembly and dismantling of crawler carriers and central counterweight,and the pilling of rear counterweight
plates are performed via the mounting cylinder on main boom pivot section.Assemble and dismantle the rear counterweight via
two counterweight lifting cylinders on the rear part of the slewing table.
