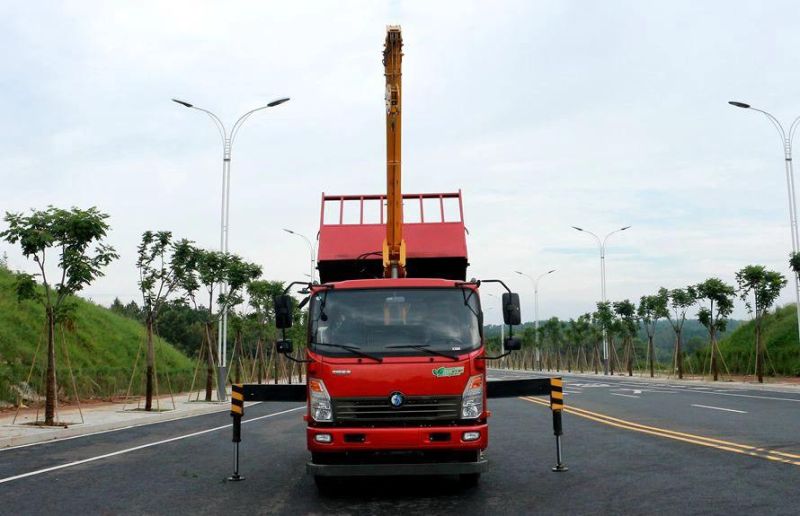

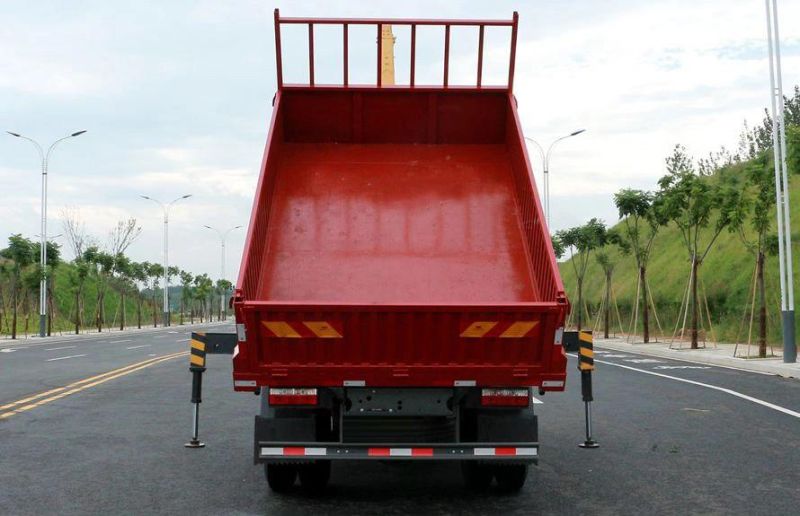

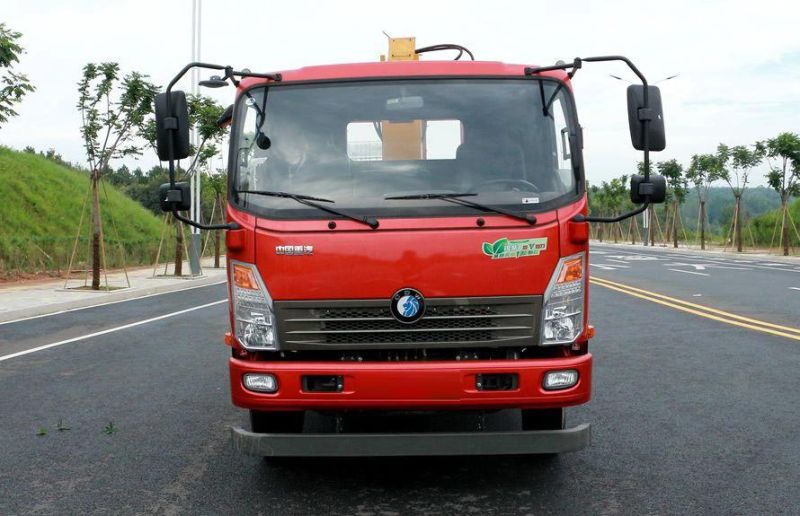

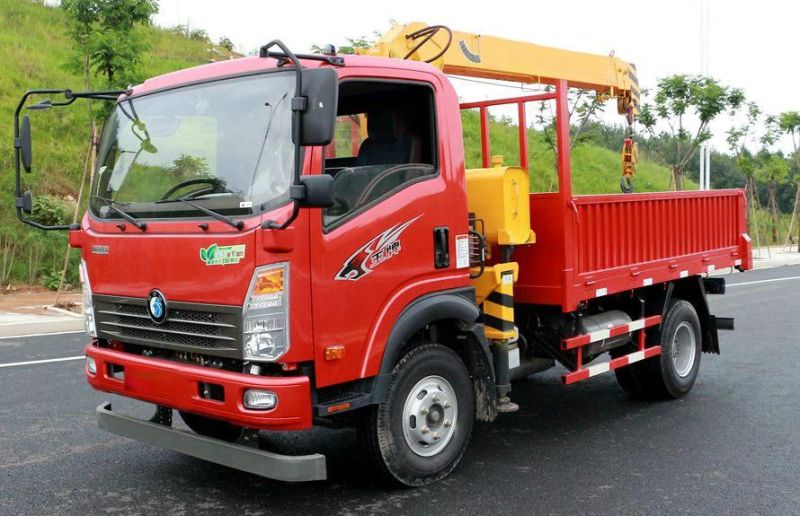

Hot Sales Hydraulic Lifting 2ton 3ton 3.2tons Knuckle Boom Mounted Truck Crane Factory Direct Supply

HUBEI RUILI AUTOMOBILE CO., LTD.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：<10m
  • Maximum Lifting Weight：2-4t
  • Shaft Number：2
  • Crane Jib：Three-Arm

Base Info

  • Type：Straight Arm
  • Chasis Brand：Dongfeng, Isuzu, Foton, HOWO, etc.
  • Gearbox：5forwards & 1reverse
  • Crane Capacity：2ton, 3ton, 3.2ton, 4ton, etc.
  • Delivery Time：30 Days
  • Logo：as Per Customer′s Request
  • Boom Type：Straight 3-Arm Telescopic Boom
  • Warranty：1 Year
  • Engine Brand：Yuchai, 115HP
  • Crane Brand：Sany, Clw, etc.
  • Crane Boom Type：Straight Telescopic Crane, Knuckle Crane
  • Cargo Material：Q235 Carbon Steel
  • Transport Package：Naked, Waxed, Bulk Ship, RO-RO
  • Specification：2ton, 3ton, 3.2ton
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

General Technical ParametersOverall Dimension5995×2350×3200 (mm)Gross Vehicle Weight4495(Kg)Curb Weight3255(Kg)Chassis SpecificationChassis BrandSinotruk KingDrive model4*2CabinSingle, Left Hand Driving, with air conditionalNumber of Passengers2EngineModel4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGRPower85KW/115HPEmission standardEURO 3Displacement2982(ml)Fuel typeDieselGearbox5Forwards & 1ReverseBrake SystemAir breakWheel Base3360mmFront/Rear Axle Loading1500/3000(Kg)Approach/Departure Angle23/12(°)Overhang1250/3545(mm)Tire7.00R16Max Driving Speed90(km/h)Upperstructure SpecificationCargo BodyDimension3450×2150×600(mm)MaterialQ235 carbon steelCargo ThicknessSide 1.5mm, Bottom 2.5mmWorking SystemBoom TypeStraight 3-Arm telescopic boomCraneCrane BrandSANY or CLWRange of Sprayer30mMax Lifting Moment25(T.M)Max Lifting Capacity2000(kg)Max lifting height12(m)Rotation angle360(°)Installation space1150(mm)Recommented power30(kw)Maximum working pressure26(Mpa)Max Flow63(l/min)Crane weight3800(kg)Oil tank capacity160(L)LegLeg typeH typeLeg Span2.28-5.9(m)Hydraulic systemPressure18(M pa)Capacity70(l)Other ConfigurationControl system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.OptionsCaution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. Hot Sales Hydraulic Lifting 2ton 3ton 3.2tons Knuckle Boom Mounted Truck Crane Factory Direct Supply
Hot Sales Hydraulic Lifting 2ton 3ton 3.2tons Knuckle Boom Mounted Truck Crane Factory Direct Supply
Hot Sales Hydraulic Lifting 2ton 3ton 3.2tons Knuckle Boom Mounted Truck Crane Factory Direct Supply
Hot Sales Hydraulic Lifting 2ton 3ton 3.2tons Knuckle Boom Mounted Truck Crane Factory Direct Supply
Hot Sales Hydraulic Lifting 2ton 3ton 3.2tons Knuckle Boom Mounted Truck Crane Factory Direct Supply
Hot Sales Hydraulic Lifting 2ton 3ton 3.2tons Knuckle Boom Mounted Truck Crane Factory Direct Supply
Hot Sales Hydraulic Lifting 2ton 3ton 3.2tons Knuckle Boom Mounted Truck Crane Factory Direct Supply
Hot Sales Hydraulic Lifting 2ton 3ton 3.2tons Knuckle Boom Mounted Truck Crane Factory Direct Supply
Hot Sales Hydraulic Lifting 2ton 3ton 3.2tons Knuckle Boom Mounted Truck Crane Factory Direct Supply
Hot Sales Hydraulic Lifting 2ton 3ton 3.2tons Knuckle Boom Mounted Truck Crane Factory Direct Supply
