Sunward Swtc55b Crane Boom with The Lowest Price
Sunward Intelligent Equipment Co., Ltd.- Certification：ISO9001
- Condition：New
- Rated Loading Capacity：10.91t
- Warranty：2 Years
- After Warranty Service：Field Maintenance and Repair Service
- Feature：Other
Base Info
- Color：Blue
- Rated Lifting Moment：10.5t.M
- Applicable Industries：Advertising Company, Building Material Shops
- Local Service Location：Indonesia
- After-Sales Service Provided：Field Installation, Commissioning
- Application：Engineering
- Max. Lifting Height：5.3m
- Showroom Location：Indonesia
- Span：4.63m
- Trademark：SUNWARD
- Origin：Hunan, China
- Production Capacity：100000 Set,Sets Per Year
Description
SizeSize(L×W×H) mm 13960×3300×3280 A Track base mm 5300 B Crawler length mm 6200 C Ground clearance of platform mm 1230 D Tail swing radius mm 4535 E Chassis width mm 3300 / 4960 F Track width mm 760 G Min.ground clearance mm 400 J Track height mm 980 K The top of the operating room is off the ground mm 3280 Parameters Max.lifting load t 55 Max.torque of basic boom t.m 193 Max.lifting force of fullextending boom t.m 73.2 Length of basic boom m 11.5 Longest arm length m 43.5 Max.lifting height of the basic arm m 11.6 Max.lifting height of the longest arm m 43.8 Work Parameters Boom rising / descending time s 70 / 55 Boom extending / retracting time s 106 / 100 Slewing speed rpm 1.3 Max.line speed m/min 130 Traveling speed km/h 2.1 Micro-traveling speed km/h 1.4 Total weight t 58 Max.gradeability % 40 Ground pressure MPa 0.089 Engine Brand Cummins Model QSB6.7-C215 Operation type Displacement L 6.7 Power / Speed kW/rpm 158/2000 Full tank capacity L 430
turbol, air-air intercooler

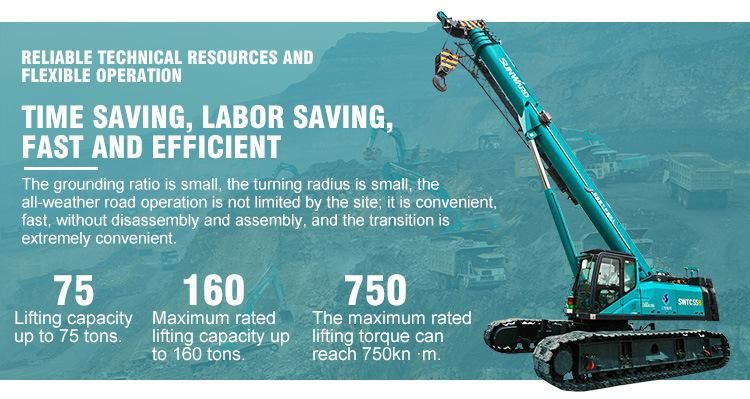

SUNWARD SWTC55B crane boom Low Price
boom crane
