• Color：Blue
• Rated Lifting Moment：10.5t.M
• Applicable Industries：Advertising Company, Building Material Shops
• Local Service Location：Indonesia
• After-Sales Service Provided：Field Installation, Commissioning
• Application：Engineering
• Max. Lifting Height：5.3m
• Showroom Location：Indonesia
• Span：4.63m
• Trademark：SUNWARD
• Origin：Hunan, China
• Production Capacity：100000 Set,Sets Per Year

SizeSize(L×W×H)mm12870×2900×3190ATrack basemm3945BCrawler lengthmm4610CGround clearance of platformmm1185DTail swing radiusmm3675EChassis widthmm2900 / 3950FTrack widthmm700GMin.ground clearancemm460JTrack heightmm990KThe top of the operating room is off the groundmm3190ParametersMax.lifting loadt26Max.torque of basic boomt.m98Max.lifting force of fullextending boomt.m45Length of basic boomm10.6Longest arm lengthm33.1Max.lifting height of the basic armm10.5Max.lifting height of the longest armm33Work ParametersBoom rising / descending times48 / 46Boom extending / retracting times60 / 55Slewing speedrpm2.2Max.line speedm/min125Traveling speedkm/h2.5Micro-traveling speedkm/h1.25Total weightt34.6Max.gradeability%40Ground pressureMPa0.062EngineBrand CumminsModel QSB6.7-C190Operation type

water cooled, intercooler,
turbol

DisplacementL6.7Power / SpeedkW/rpm142/2200Full tank capacityL450

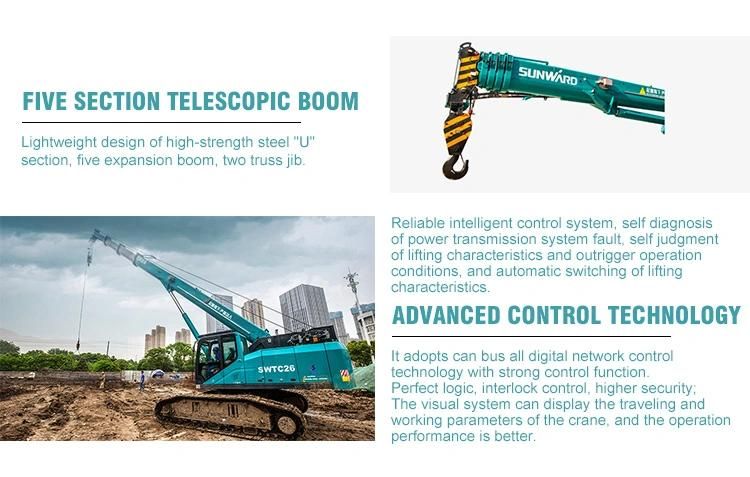

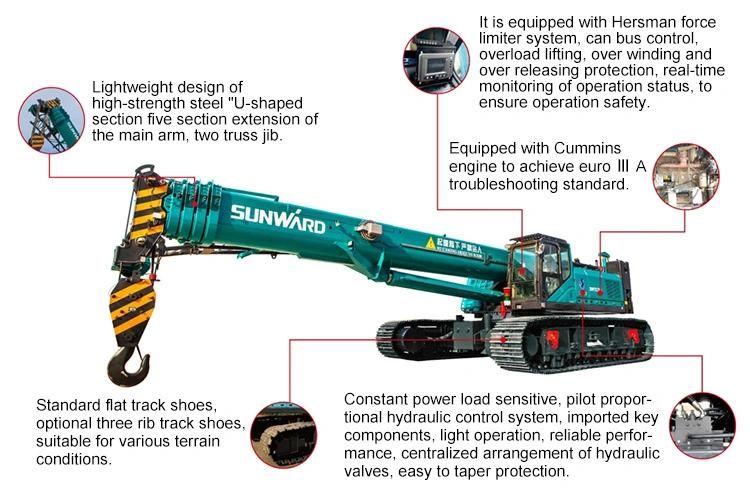

SUNWARD SWTC26 crane crawler 25ton with fair price

crawler crane 25ton
