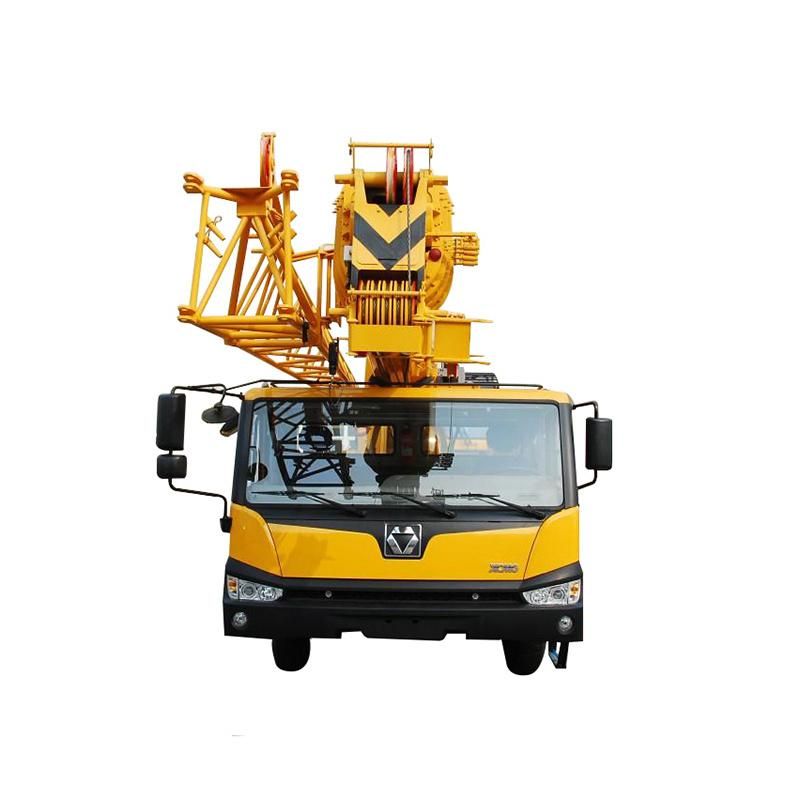

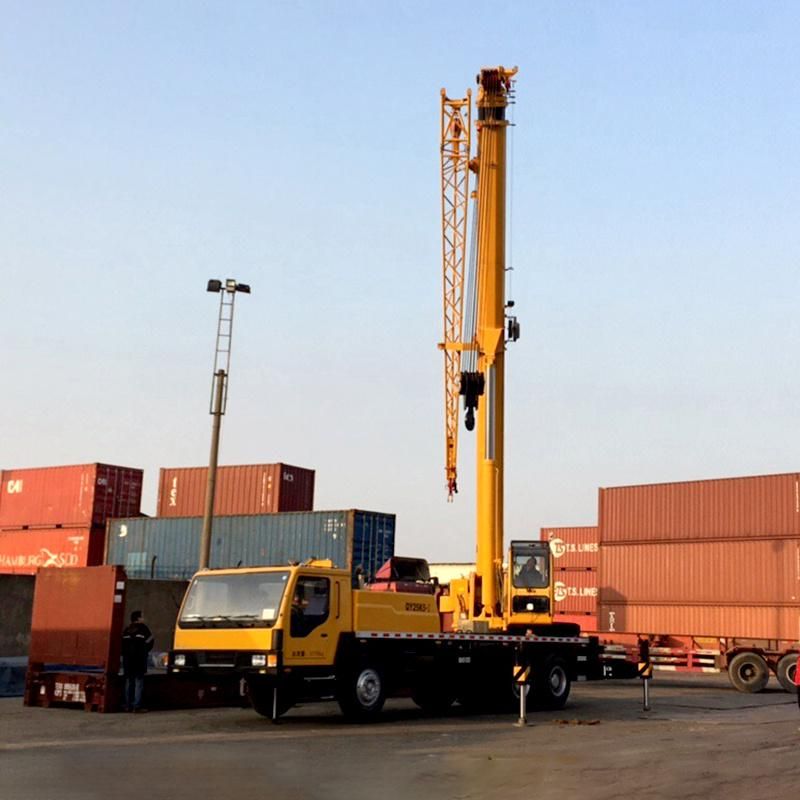

25t Qy25K5-I Five Section Booms Mobile Truck Crane
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Available
- Warranty：2 Years
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：47.2m
- Maximum Lifting Weight：25t
Base Info
- Model NO.：QY25K5-I
- Shaft Number：3
- Crane Jib：Five-Arm
- Transport Package：Nude Package
- Trademark：Top Brand
- Origin：China
- HS Code：8429521200
Description
DimensionUnitQY25K5-IOverall lengthmm12300Overall widthmm2500Overall heightmm3350Weight Total weight in travelkg31750Front axle loadkg6550Rear axle loadkg25200Power Engine model SC8DK280Q3WD615.329Engine rated powerkW/(r/min)206/2200213/2200Engine rated torqueN.m/(r/min)1112/14001160/1400Travel Max. travel speedkm/h80Min. turning diameterm22Min. ground clearancemm260Approach angle°16Departure angle°13Max. grade ability%40Fuel consumption for 100kmL≈37Main performance Max. rated total lifting capacityt25Min. rated working radiusmm3000Turning radius at turntable tailm3.065Max. lifting torquekN.m961Base boomm10.4Fully extended boomm39.5Fully extended boom+jibm47.8Longitudinal outrigger spanm5.14Lateral outrigger spanm6Working speed Boom luffing times68Boom full extension times150Max. swing speedr/min2.5Max. speed of main winch (single rope) (no load)m/min125Max. speed of aux. winch (single rope) (no load)m/min125
