• Model NO.：QY100K-I
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Folding
• Transport Package：Cartons
• Trademark：top Brand
• Origin：Jiangsu, China
• HS Code：8429521200

Main performanceMax. rated total lifting capacitym100Min. rated working radius 3Turning radius at turntable tail  Counterweightmm4200Aux. winchmm4590Max. lifting torque 3450Base boomkN.m3450(4m×88t)Fully extended boomkN.m1950(24m×7.1t)Fully extended boom+ jibkN.m1230(19.2m×6t)Outrigger span (full extension)  Longitudinalm7.56Lateralm7.6Lifting height  Base boomm13.5Fully extended boomm50.9Fully extended boom+ jibm70.4Boom lengthm13.5Fully extended boomm51Fully extended boom+ jibm51+18.1+4Working speed  Jib setting angle°0,15,30Boom luffing times75Boom  Boom telescoping time  Full extensions160Max. swing speedr/min2Outrigger extension/retraction time  Outrigger beam in extension/retractions25/15Outrigger jack in extension/retractions45/25Lifting speed (single rope, layer 4)  Main winchm/min105Aux. winchm/min104

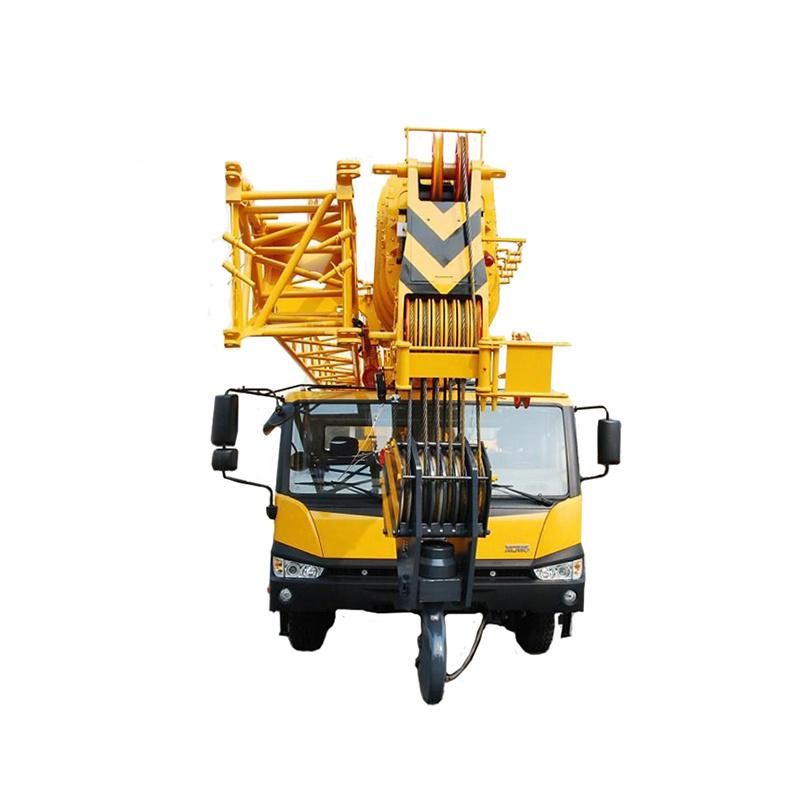

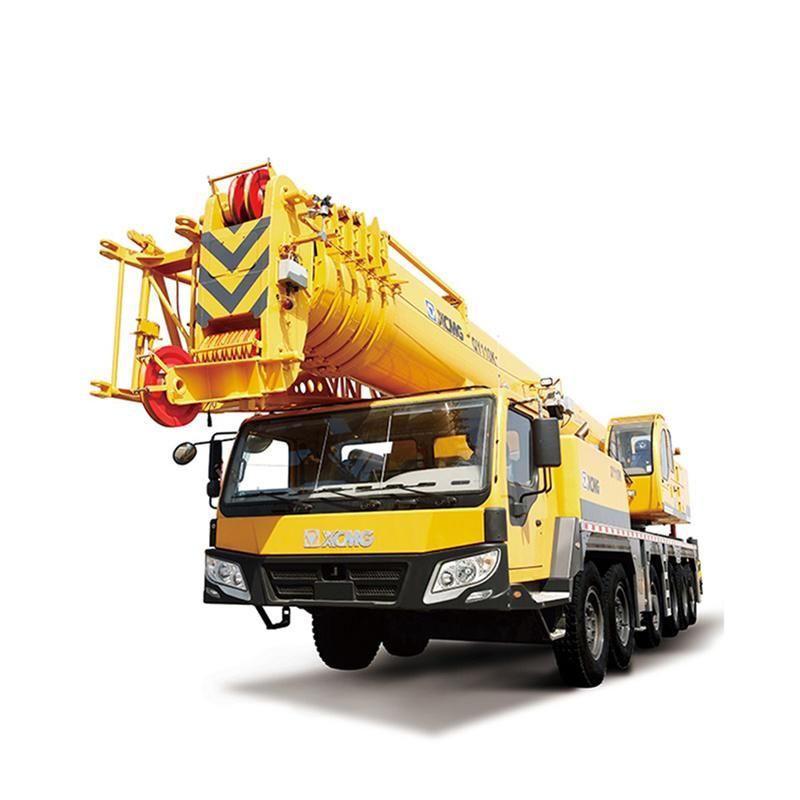

Product Pictures

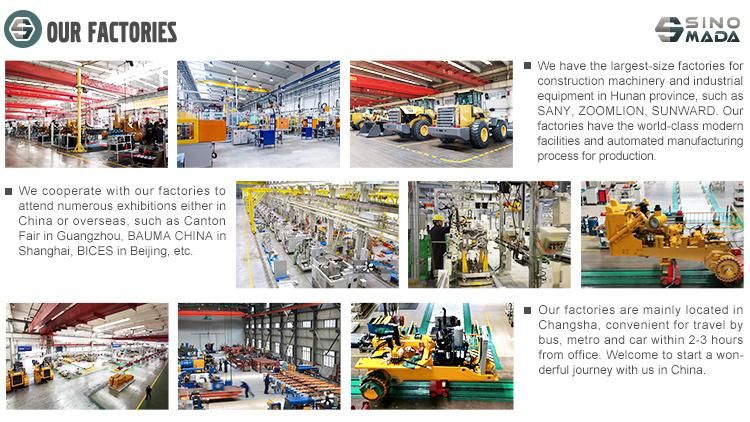

Company
