• Color：Blue
• Rated Lifting Moment：10.5t.M
• Applicable Industries：Advertising Company, Building Material Shops
• Local Service Location：Indonesia
• After-Sales Service Provided：Field Installation, Commissioning
• Application：Engineering
• Max. Lifting Height：5.3m
• Showroom Location：Indonesia
• Span：4.63m
• Trademark：SUNWARD
• Origin：Hunan, China
• Production Capacity：100000 Set,Sets Per Year

SizeSize(L×W×H)mm12200×2800×3120ATrack basemm3820BCrawler lengthmm4580CGround clearance of platformmm1192DTail swing radiusmm3540EChassis widthmm2800 / 3600FTrack widthmm700GMin.ground clearancemm458JTrack heightmm985KThe top of the operating room is off the groundmm3120ParametersMax.lifting loadt16Max.torque of basic boomt.m61.2Max.lifting force of fullextending boomt.m30.6Length of basic boomm10Longest arm lengthm31.3Max.lifting height of the basic armm10.1Max.lifting height of the longest armm31.5Work ParametersBoom rising / descending times40 / 35Boom extending / retracting times50 / 40Slewing speedrpm2.5Max.line speedm/min140Traveling speedkm/h4Micro-traveling speedkm/h2.4Total weightt28.5Max.gradeability%40Ground pressureMPa0.053EngineBrand CumminsModel QSB5.9-C180Operation type

turbol, air-air intercooler

DisplacementL5.9Power / SpeedkW/rpm132/2200Full tank capacityL330

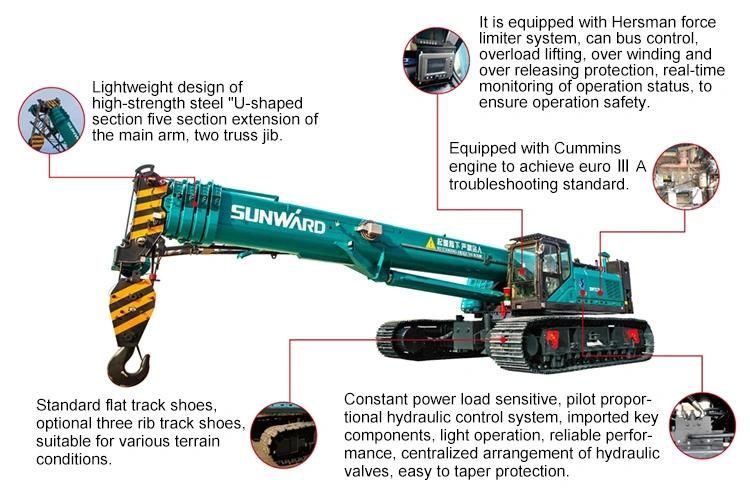

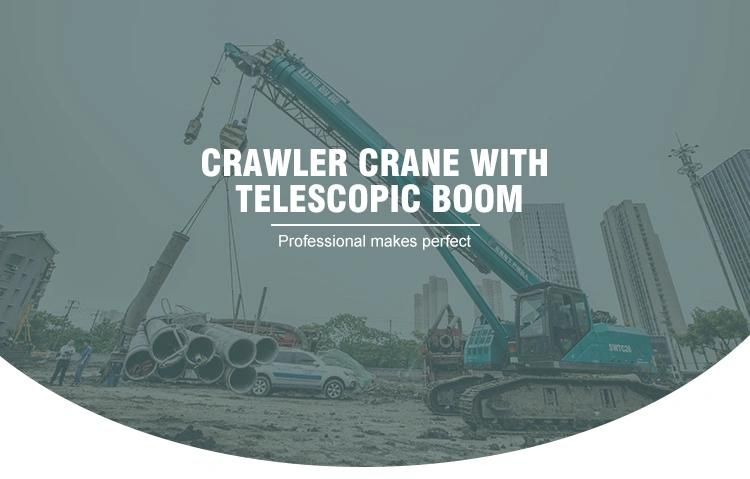

SUNWARD SWTC16B crane 55 ton crawler Competitive Price

sunward 55 ton crawler crane
