• Color：Blue
• Rated Lifting Moment：10.5t.M
• Applicable Industries：Advertising Company, Building Material Shops
• Local Service Location：Indonesia
• After-Sales Service Provided：Field Installation, Commissioning
• Application：Engineering
• Max. Lifting Height：5.3m
• Showroom Location：Indonesia
• Span：4.63m
• Trademark：SUNWARD
• Origin：Hunan, China
• Production Capacity：100000 Set,Sets Per Year

Machine weightt20.5

Main

performance

parameters

Max. rated lifting capacityt10Min. rated rangem2.5Turntable tail swing radiusmm2750

Maximum

load

moment

Basic boomkN.m333Full extensional main boomkN.m156

Lifting

heigh

Basic boomm7Full extensional main boomm21.5Full extensional boom + jibm26

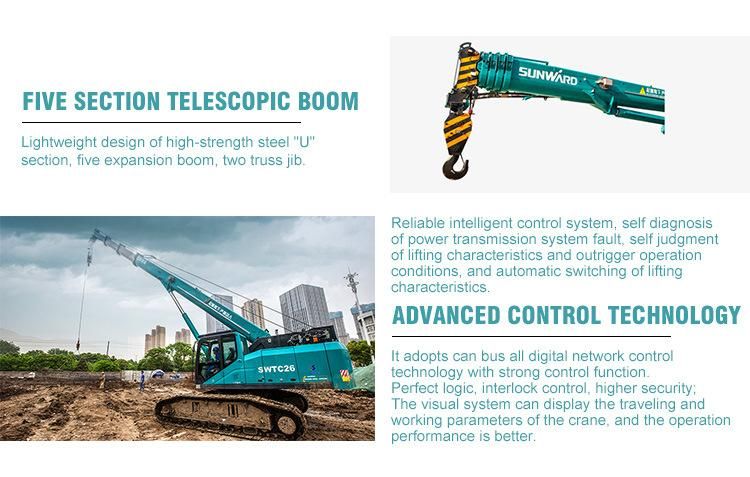

Boom

length

Basic boomm6.8Full extensional main boomm21.2Full extensional boom + jibm21.2+5Installation angle of jib°0153045DimensionsOverall lengthmm9073Overall width (extension/retraction)mm2800Overall heightmm3070TravelSpeedkm/h2.7/4.1Minimum ground clearance of framemm478Max. gradeability%40Ground pressureMPa0.05

Operating

speed

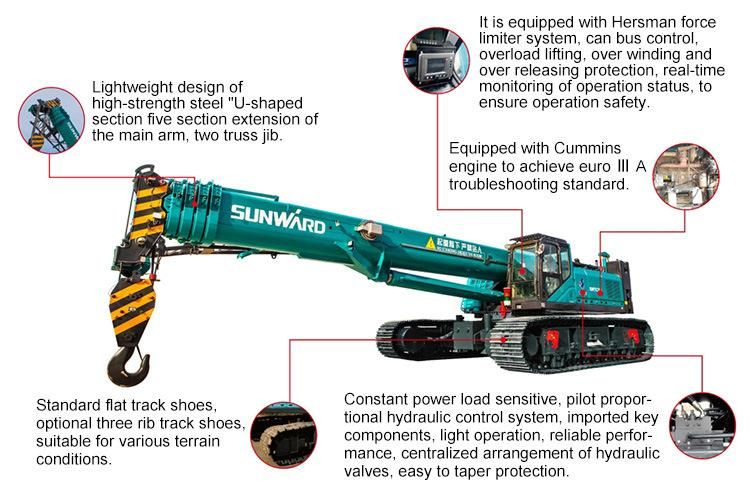

Maximum speed of hoisting single rope (no load)m/min115Boom telescopic time (extension/retraction)s20 / 33Boom luffing time (up/down)s12 / 16Swing speedr/min3EngineBrand CumminsModel QSB6.7Operation type

Direct injection, four-stroke,

turbocharged, inter-cooling

DisplacementL6.7PowerkW129Rotation speedr/min2200Capacity of hydraulic oil tankL

280

Capacity of fuel tankL380



SUNWARD SWTC10 crane 50t mobile Wire-To-Board Connector

50t mobile crane
