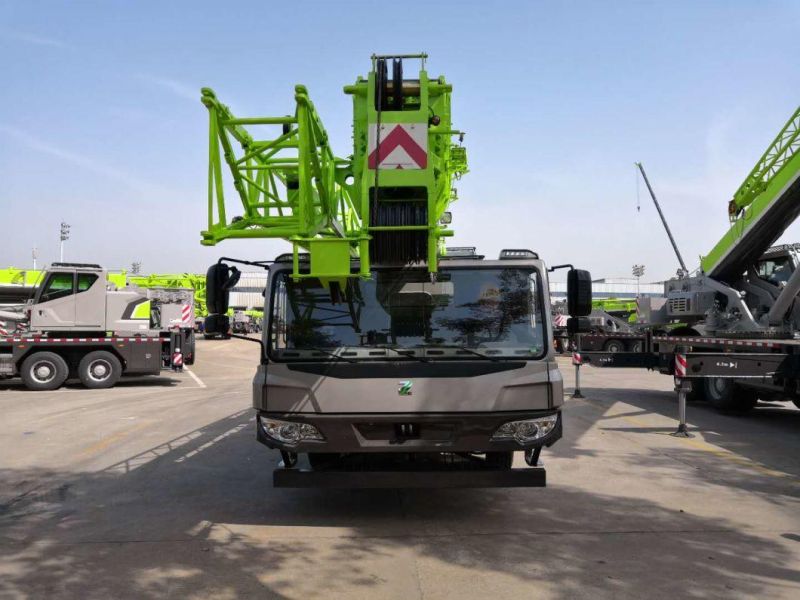

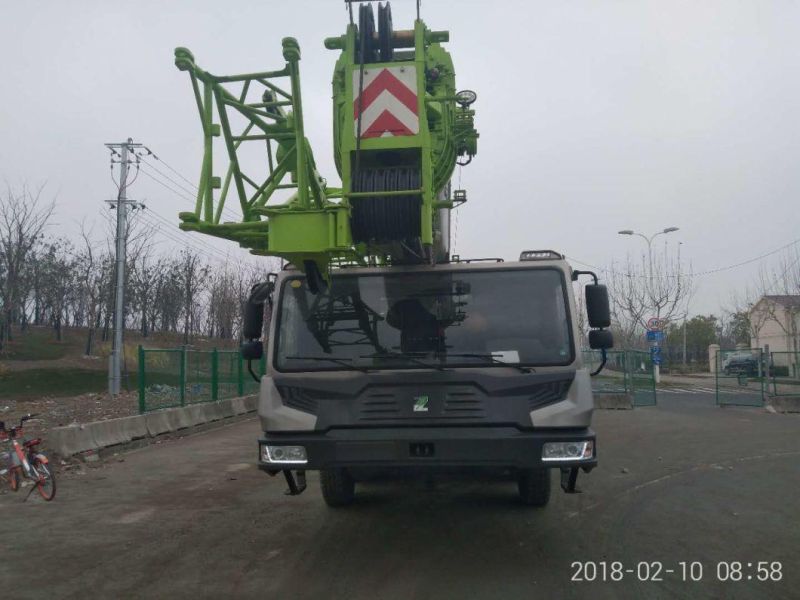

• Model NO.：ZTC250V551
• Type：Folding
• Transport Package：Nude Package
• Specification：12510X2500X3455
• Trademark：zoomlion
• Origin：Hunan, China
• Production Capacity：1000pieces

orking performanceMax. rated lifting capacitykg25000 Max. load moment of basic boomkN.m950 Max. load moment of main boom(fully extended)kN.m525 Max. lifting height of main boomm38.7These parameters do not include deflection of main boom and jibMax. lifting height of jibm46.58Working speeds    Max. hoist rope speed(Main winch)m/min135At the 3rd  layerMax. hoist rope speed(Auxiliary winch)m/min100At the 3rd   layerBoom derricking up times40 Boom derricking up times120 Slewing  speedr/min2.6 Driving
parametersMax. driving  speedkm/h72 Max. gradeability%34 Min. turning diameterm≤20 Min.  ground clearancemm235 Limits for exhaust pollutants and smoke Comply with related standardsGB3847-2005  GB17691-2005  National stage IIIOil consumption per hundred kilometersL38 MassDeadweight in driving conditionkg29400 Complete vehicle kerb masskg29270 Front axle loadkg6370 Rear axle loadkg22900 DimensionsOverall dimensions(L×W×H)mm12510×2500×3455 Outrigger spread(L)m5.15 Outrigger spread(W)m6.1 Main boom lengthm10.3-38.5 Boom angle°-2-80 jib lengthm8 Offset°0,30 ChassisModel ZLJ5323JQZ Type IICode: ZLJ5323JQZV3EngineModelkw/r/minWP6.240 Rated power n.m/r/min176/2300 Max. output torque 900/1400 - 1600 Manufacturer

Zoomlion Heavy Industry Science and Technology Co., Ltd.
