• Model NO.：SARTC100
• Type：Folding
• Max. Lifting Cap.(T/M)：100
• Max. Load Moment：3500 Kn.M
• Engine Rated Output：224 Kw
• Engine Max Torque(N.M：987
• Total Weight in Travel：79500 Kg
• Dimension (L*W*H)：14900*3500*3990
• Min.Turning Radius：15 M
• Approach Angle：21.1
• Departure Angle：17.3
• Max. Grade Ability：60 %
• Max.Total Rated Lifting a Load：70 T
• Min.Rated Working Radius：3 M
• Rated Power：224 Kw
• Braking Distance：9 M
• Transport Package：Roro Ship
• Specification：79500kg
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705102100
• Production Capacity：300set,Year

Basic Info.

Model NO. SARTC100 Type Folding Max. Lifting Cap.(T/M) 100 Max. Load Moment 3500 Kn.M Engine Rated Output 224 Kw Engine Max Torque(N.M 987 Total Weight in Travel 79500 Kg Dimension (L*W*H) 14900*3500*3990 Min.Turning Radius 15 M Approach Angle 21.1 Departure Angle 17.3 Max. Grade Ability 60 % Max.Total Rated Lifting a Load 70 T Min.Rated Working Radius 3 M Rated Power 224 Kw Braking Distance 9 M Transport Package Roro Ship Specification 79500kg Trademark Super-above Origin Jiangsu, China HS Code 8705102100 Production Capacity 300set/Year

Product Description

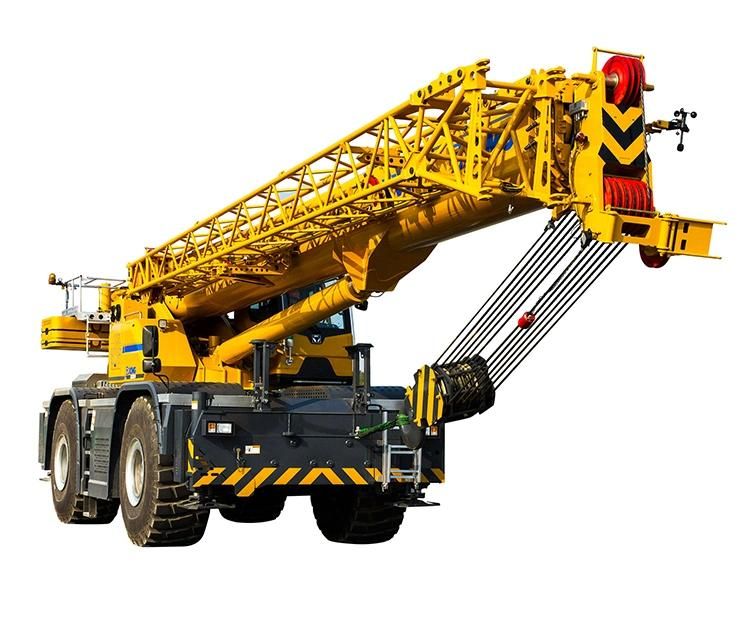

Specifications of 100 tons Rough Terrian Crane
RT100 is a high-end model and an experienced R&D institute in Europe, which has been approved by CE in Europe.
It is equipped with a two-axle loading chassis and has two types of driving model, four types of turning models and
back-and-forward driving function. It has five sections of quadrangular main doom, H-type outrigger as well as
combined self-removal and installation counterweight. It has three types of operation models such as operation with

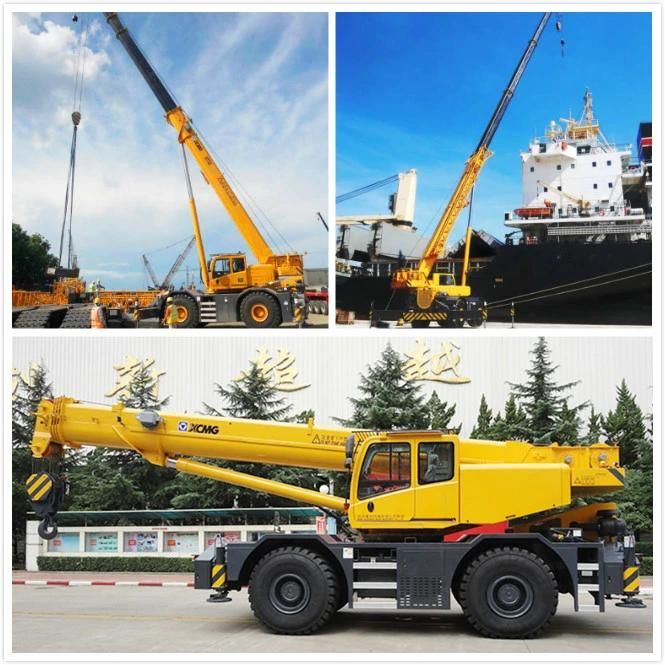

the support of outrigger, operation with the support of tire and hanging when driving. It is widely used in the oil field,
mine, road and bridge construction, warehousing base and other construction sites.

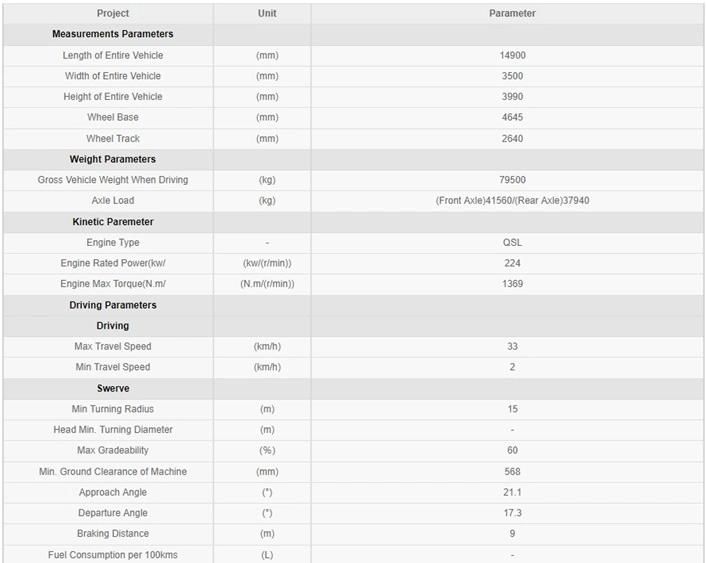

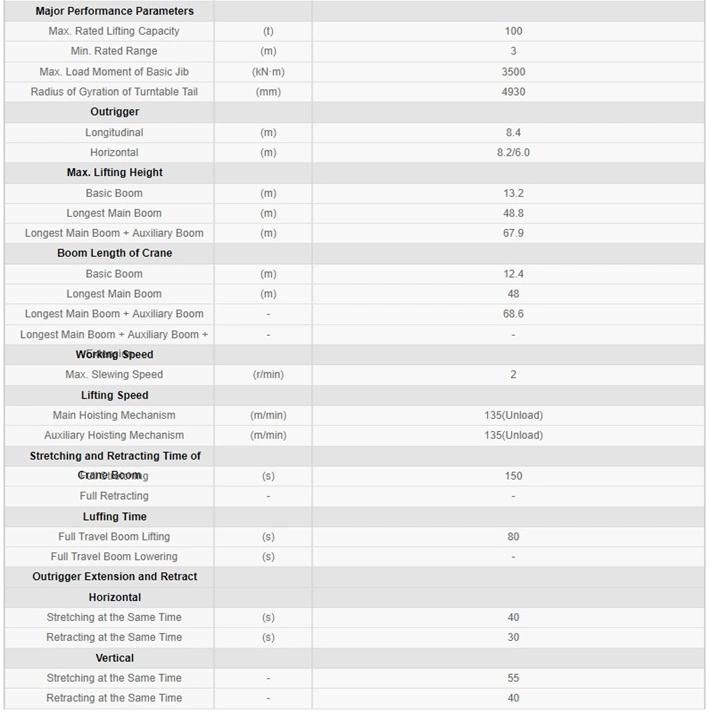

PARAMETERS

Product Highlights
Strong Power of Hoisting, Wide Range of Work

It has 31m main booms, 13m auxiliary booms, with the longest main booms and the highest comprehensive hoisting
performance in the product of the same tonner.

Maneuvering and Flexible, Quick and Efficient

The max speed reaches 50km/h and the max grade ability is 55% and the min. The turning radius is 5m. All these
three factors make it flexible.

Self-localization and self-locked Jib stowed under booms make it needs no auxiliary operator and no equipment,
and can quickly retract, and efficiently work.

Safe and Reliable, No Worry to Handle

The product is equipped with lifting protection control system in case of overload, over-retracting, and over-stretching
as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving
automatic protection system. All these elevate its safety performance largely;

The product is equipped with top features in this field, professional matching upgrading, and systematic evaluation test.
And it has passed a test like driving 11,000km and 10,000 times hanging. Both ensure its reliability.

Economic and Environmental Protection, with Cost Saving

The product is equipped with an optical matching power transmission system and torque converter with lockout function,
which decreases oil consumption by over 20% at high speed.

The one-way stabilized current control of parallel hydraulic pressure system reduces the loss of flow; the gravity drop
the luffing system needs no extra power and saves oil consumption.

Comfortable to Handle, Convenient to Operate

The product is equipped with the full hydro-steering control system and automatic-manual gearbox, which makes it
easy to handle. And the compounded suspension of leaf spring and hydraulic oil tank, and the self-recognition phased
control of rotary cushion technology make the operation stability and comfortable;

The product is equipped with a humanized climb ladder, maintenance access and control layout. And it is equipped
with professional man-machine engineering simulation analysis; exquisite man-machine interface and stand-alone
fault diagnose function. It is comfortable to handle and convenient to operate.
