• Model NO.：OKW-25T
• Type：Straight Arm
• Chassis：Heavy Duty Truck Crane Chassis
• Engine Power：196kw
• Tire：1100-20
• Brake：Air Brake
• Driving Direction：Power Steering
• Wheelbase：4.3m 5.7m
• Wheel Track：2500mm
• Maximum Turning Speed (No Load)：2.4r,Min
• Minimum Turning Speed (Full Load：0.3 R,Min
• Single Arm Length：10m
• Boom Section Number：4
• Boom Maximum Elevation Angle：75 Degrees
• Boom Minimum Elevation Angle：0.5 Degrees
• Lifting Leg Number：5 Full-Hydraulic Legs
• Outrigger Span：Lateral Span: 6.1m; Longitudinal Span: 5.55m
• Transport Package：Wooden Package
• Specification：25000KG
• Trademark：OUKE
• Origin：Jining
• HS Code：8425190000
• Production Capacity：200

Basic Info.

Model NO. OKW-25T Type Straight Arm Chassis Heavy Duty Truck Crane Chassis Engine Power 196kw Tire 1100-20 Brake Air Brake Driving Direction Power Steering Wheelbase 4.3m 5.7m Wheel Track 2500mm Maximum Turning Speed (No Load) 2.4r/Min Minimum Turning Speed (Full Load 0.3 R/Min Single Arm Length 10m Boom Section Number 4 Boom Maximum Elevation Angle 75 Degrees Boom Minimum Elevation Angle 0.5 Degrees Lifting Leg Number 5 Full-Hydraulic Legs Outrigger Span Lateral Span: 6.1m; Longitudinal Span: 5.55m Transport Package Wooden Package Specification 25000KG Trademark OUKE Origin Jining HS Code 8425190000 Production Capacity 200

Product Description

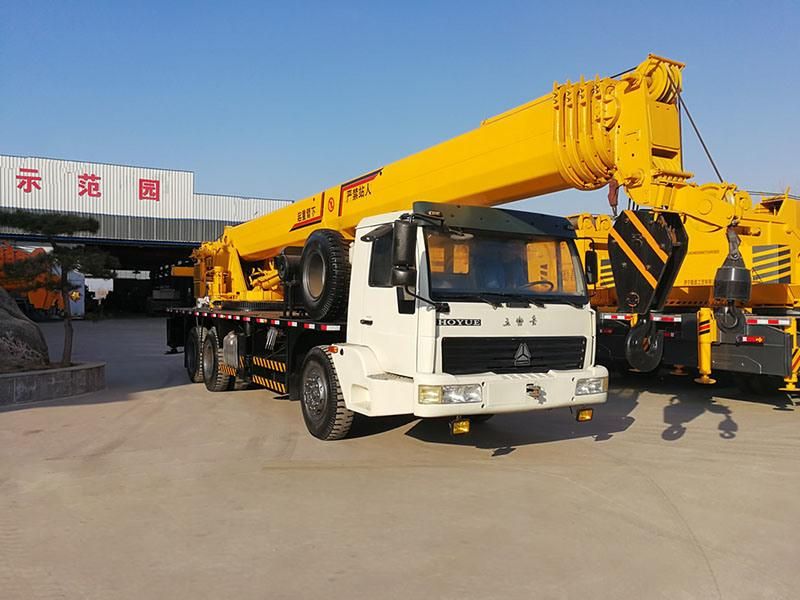

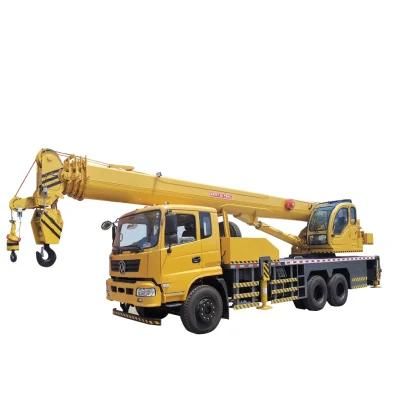

360 Degree Rotation Homemade Truck Crane for Construction 25t

The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.

Technology

Maximum rated starting weight	25T
Engine power	196kw
Axle	Front single bridge rear double bridge
Tire	1100-20
Wheelbase	4.3 meters 5.7 meters
Tread	2.5 meters
Brake	Air brake
Driving direction	Power steering
Basic ARM length	10 m
Number of large arms knots	4 knots
Longest arm length	34 meters
Maximum lifting height	34 meters (from the ground)
Maximum elevation angle of boom	75 degrees
Lifting arm Minimum elevation angle	0.5 degrees
Maximum rotation speed (empty	2.4r/min
Minimum rotation speed (full load):	0.3 r/min
Amplitude time: Full starting arm: The whole drop arm:  46 Telescopic time: Full extension arm: 92s full Arm	Full arm: 85 s full arm: 46 telescopic time: full arm: 92s 75s
legs	5 full hydraulic legs
Vertical span of legs (front and rear):	5.55 meters
Lateral span of leg (side):	6.1 meters
Length, Width and height	13.5 meters 2.5 meters 3.5 meters
Dual hoist	Double hydraulic winch hoist
