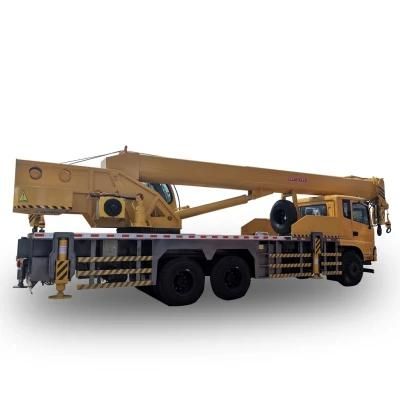

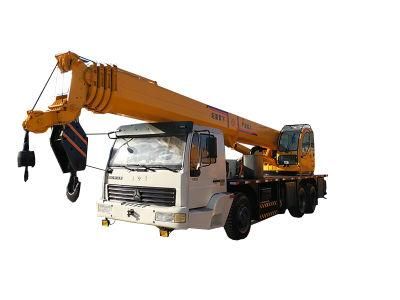

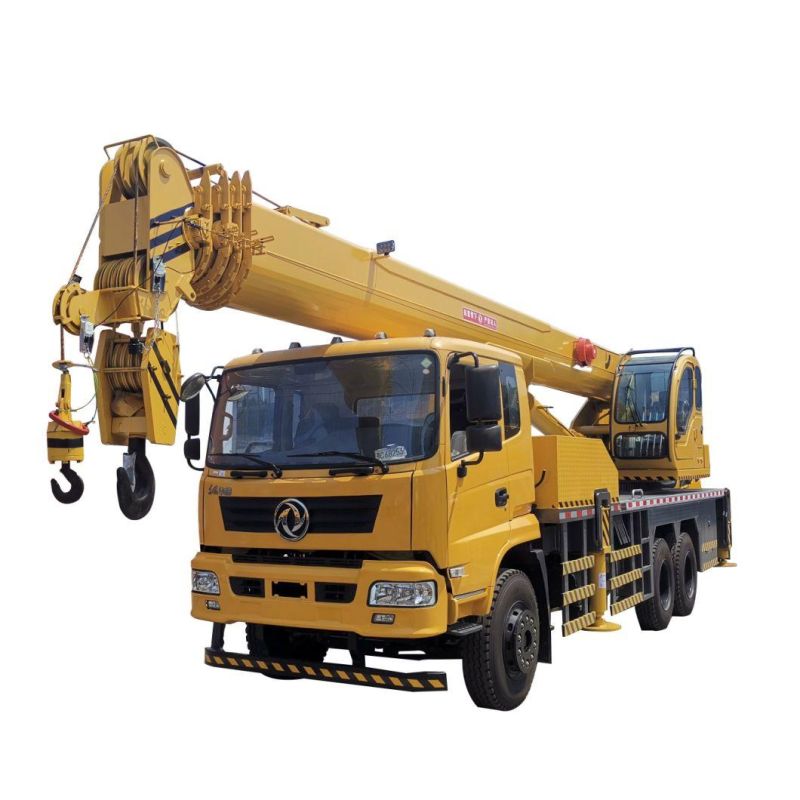

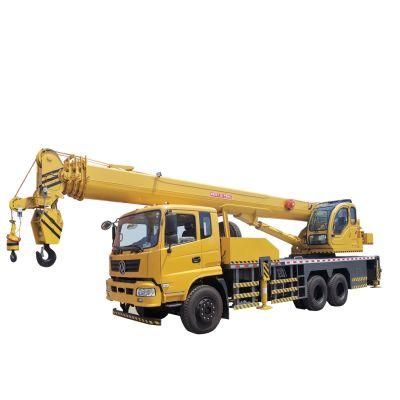

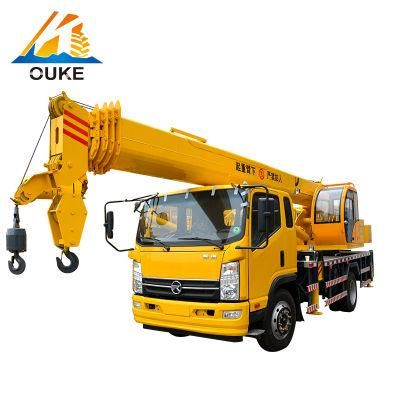

2019 Best Telescopic Boom Hydraulic Truck Mounted Wheel Mobile Crane 16 Ton
JINING OKING TEC CO., LTD.- Certification：GS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：>16t
- Crane Jib：Four-Arm
- Type：Folding
Base Info
- Model NO.：OKT-16T
- Classic：Truck Crane Chassis
- Max. Rated Load：16tons
- Motor Power：18.5kw
- Top Speed：75km,H
- Engine：Cy4bk251
- Boom Section Number：5
- Single Arm Length：8m
- Wheelbase：4400mm
- Outrigger Span：Span: 6.25m; Longitudinal Span: 5m
- Brake：Air Brake
- Lifting Leg Number：5(Two Legs on Each Side and Auxiliary Hind Legs)
- Driving Direction：Hydraulic Booster
- Fan Heat System：Double Curved Neck Plunger Motor Hydraulic Winch
- Weight：17000kg
- Specification：11260mm*2330mm*3260mm
- Trademark：OUKE
- Origin：Jining
- HS Code：8705109100
- Production Capacity：100 Sets Per Month
Description
Basic Info.
Model NO. OKT-16T Classic Truck Crane Chassis Max. Rated Load 16tons Motor Power 18.5kw Top Speed 75km/H Engine Cy4bk251 Boom Section Number 5 Single Arm Length 8m Wheelbase 4400mm Outrigger Span Span: 6.25m; Longitudinal Span: 5m Brake Air Brake Lifting Leg Number 5(Two Legs on Each Side and Auxiliary Hind Legs) Driving Direction Hydraulic Booster Fan Heat System Double Curved Neck Plunger Motor Hydraulic Winch Weight 17000kg Specification 11260mm*2330mm*3260mm Trademark OUKE Origin Jining HS Code 8705109100 Production Capacity 100 Sets Per MonthProduct Description
2019 Best Telescopic Boom Hydraulic Truck Mounted Wheel Mobile Crane 16 Ton
The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
Product parameters
| No | Items |
| Chassis | Futian Ruiwo car crane special chassis. |
| Engine | YC4S140-50 |
| tires | 900R20 |
| brake | air brake |
| Direction | Hydraulic boost |
| wheelbase | 4400mm |
| the highest speed | 85Km / h |
| single arm length | 8m |
| boom number | 5 |
| boom structure | inner rope |
| thick section boom size | height 58 cm, width: 48 cm |
| Number of lifting legs | 5 (two legs on the side, and auxiliary hind legs) |
| side leg structure | double leg, unilateral leg span 2 meters (from the body) |
| Outrigger span | spans 6.25 meters; longitudinal span: 5 meters |
| hydraulic system | three pump confluence system |
| Fan heat system | air-cooled fan heat system |
| motor | 18.5kw (optional) |
| double winch | double inclined shaft plunger motor hydraulic winch |
| large structure | I-shaped steel box large frame |
| Appearance size | length 11250mm; width 2400mm; height 3300mm |
| the total quality | 17500kg |
