• Model NO.：OKT-25T
• Chassis：Dongfeng Chassis
• Max. Rated Load：25tons
• Engine Power：196kw
• Maximum Turning Speed (No Load)：2.4r,Min
• Minimum Turning Speed (Full Load)：0.3 R,Min
• Boom Section Number：4
• Single Arm Length：10m
• Wheelbase：4.3m 5.7m
• Wheel Track：2.5m
• Brake：Air Brake
• Lifting Leg Number：5 Full-Hydraulic Legs
• Driving Direction：Power Steering
• Axle Bridge：Front Single Bridge,Rear Double Bridge
• Double Winch：Double Hydraulic Winch
• Weight：17000kg
• Specification：13500mm*2500mm*3500mm
• Trademark：OUKE
• Origin：China
• HS Code：8705109100
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. OKT-25T Chassis Dongfeng Chassis Max. Rated Load 25tons Engine Power 196kw Maximum Turning Speed (No Load) 2.4r/Min Minimum Turning Speed (Full Load) 0.3 R/Min Boom Section Number 4 Single Arm Length 10m Wheelbase 4.3m 5.7m Wheel Track 2.5m Brake Air Brake Lifting Leg Number 5 Full-Hydraulic Legs Driving Direction Power Steering Axle Bridge Front Single Bridge,Rear Double Bridge Double Winch Double Hydraulic Winch Weight 17000kg Specification 13500mm*2500mm*3500mm Trademark OUKE Origin China HS Code 8705109100 Production Capacity 100 Sets Per Month

Product Description

Euro III Emission Standard 25 Ton Lifting Hoist Truck Mobile Crane in Kenya for Sale

The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.

Technology

Maximum rated starting weight	25T
Engine power	196kw
Axle	Front single bridge rear double bridge
Tire	1100-20
Wheelbase	4.3 meters 5.7 meters
Tread	2.5 meters
Brake	Air brake
Driving direction	Power steering
Basic ARM length	10 m
Number of large arms knots	4 knots
Longest arm length	34 meters
Maximum lifting height	34 meters (from the ground)
Maximum elevation angle of boom	75 degrees
Lifting arm Minimum elevation angle	0.5 degrees
Maximum rotation speed (empty	2.4r/min
Minimum rotation speed (full load):	0.3 r/min
Amplitude time: Full starting arm: The whole drop arm:  46 Telescopic time: Full extension arm: 92s full Arm	Full arm: 85 s full arm: 46 telescopic time: full arm: 92s 75s
legs	5 full hydraulic legs
Vertical span of legs (front and rear):	5.55 meters
Lateral span of leg (side):	6.1 meters
Length, Width and height	13.5 meters 2.5 meters 3.5 meters
Dual hoist	Double hydraulic winch hoist

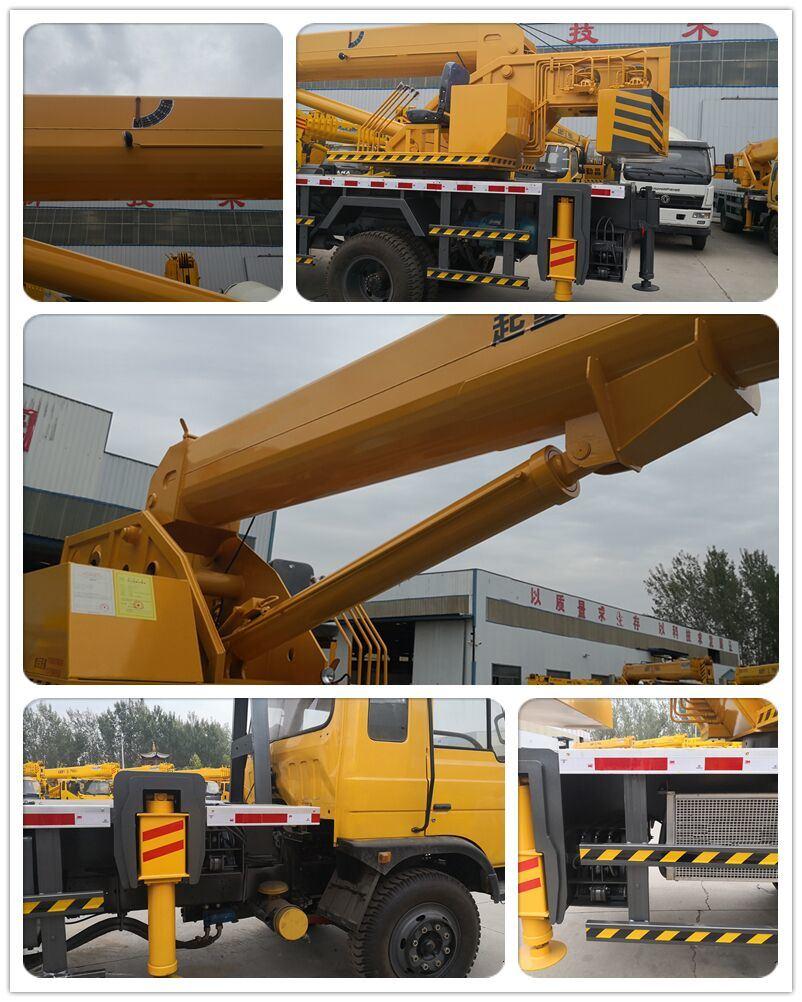

Product details

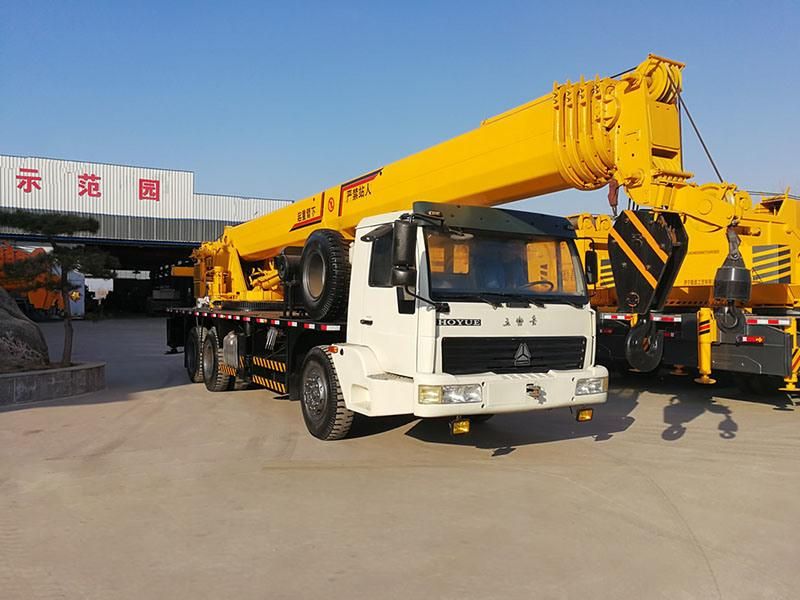

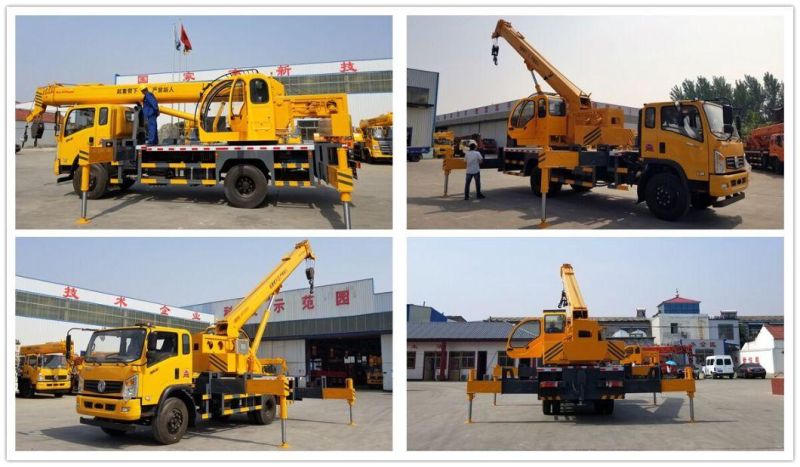

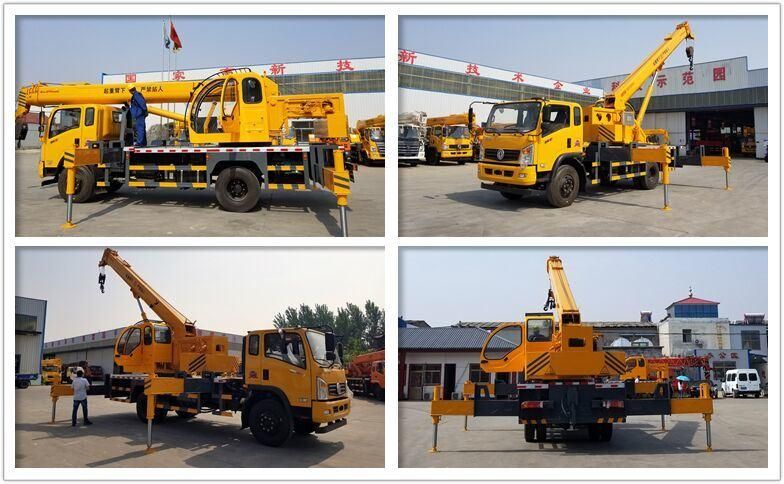

Our products

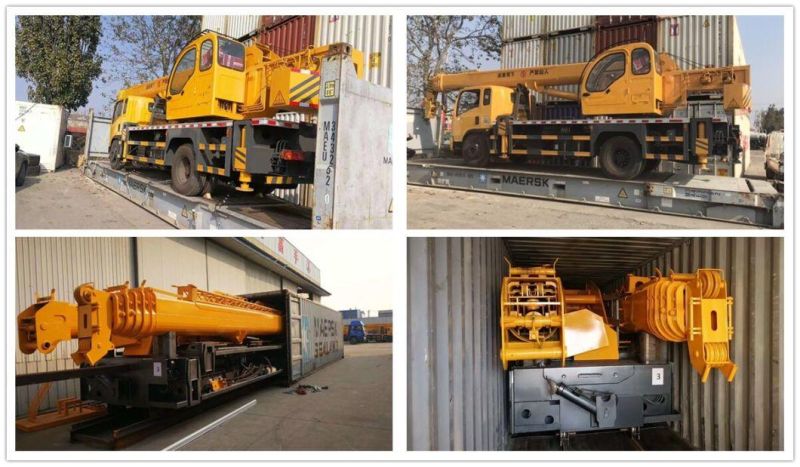

Our packaging
