• Model NO.：SWORC800
• Type：Straight Arm
• Base Boom：11.9 M
• Travel Speed：36 Km,H
• Boom Raising Time：110 S
• Boom Extending Time：155 S
• Transport Package：Nude
• Specification：80 ton lifting capacity
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：200 Unit Per Year

Basic Info.

Model NO. SWORC800 Type Straight Arm Base Boom 11.9 M Travel Speed 36 Km/H Boom Raising Time 110 S Boom Extending Time 155 S Transport Package Nude Specification 80 ton lifting capacity Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 Unit Per Year

Product Description

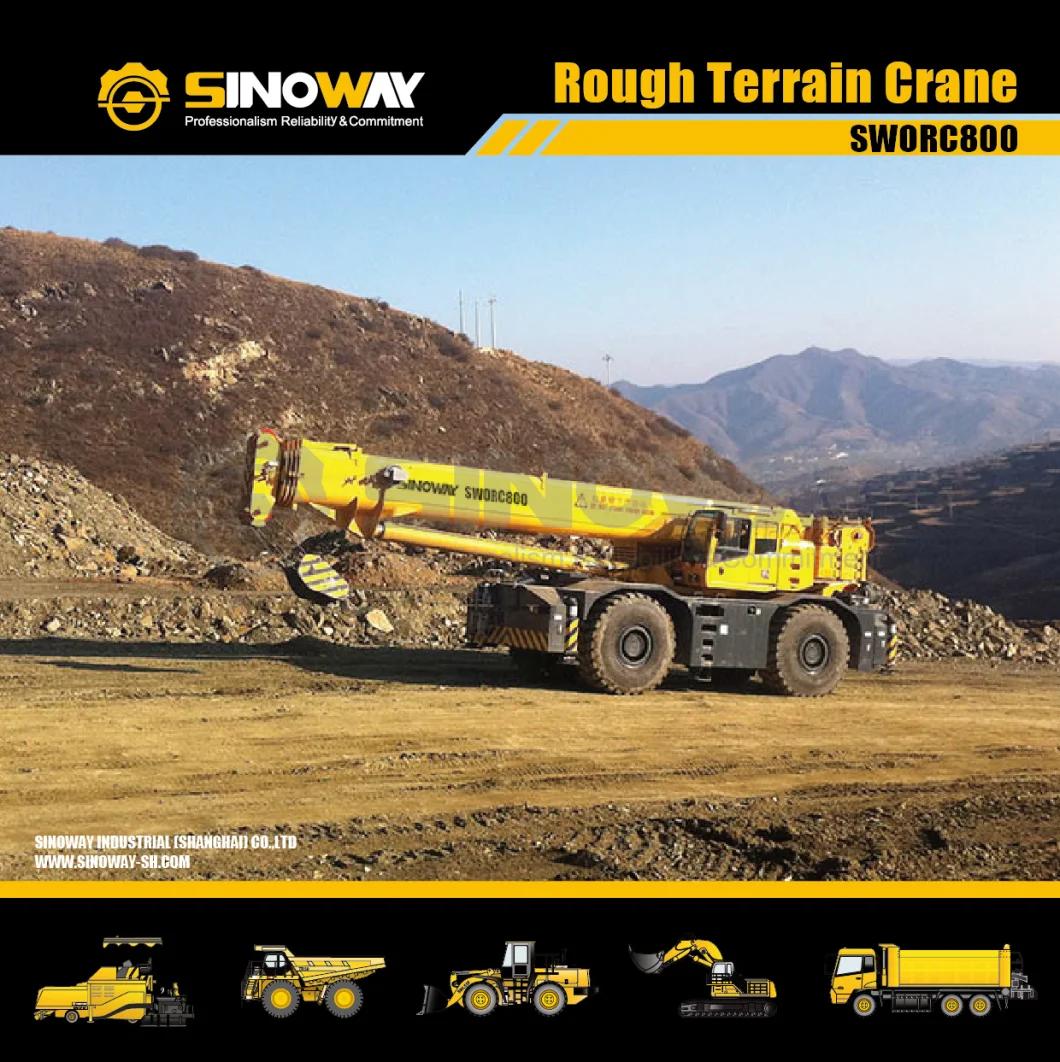

SINOWAY SWOCR800 Rough Terrain Crane Advantages

Three operating modes: superior performance of operation on outriggers, which is not less than that for truck crane in a stationary site; unique performance of operation on tires makes it easy to complete the job what truck crane could not finish when it is difficult to deploy outriggers in a confined site; powerful pick and carry capacity makes fast operation of lifting and transferring load. It is suitable for lifting and transferring operation in oil patch, storage, goods yard, dock and logistic base, etc.

Two driving modes: forward and reverse driving function contributes to fast transferring within a site or from a site to another; four electro-proportional steering modes combined with min. turning radius of 8.5 m offers unmatched maneuver ability in a confined space. Specialized off-road tires and super power system ensure favorable off-road capacity, suitable for applications in various adverse sites.

Swing, rigidly lockable hydraulic suspension technology: the shock absorption function of rear suspension may be performed through the swing mechanism and suspension cylinder when driving on  roads, consequently road shock is buffered and travel smoothness is improved; the rear suspension cylinder may be locked to rigid state so as to meet the requirement for travel with a load suspended; during operation of crane on tires, when the turntable is turned over ±3°, suspension system may automatically switch over to rigid state, operation safety is ensured.

Engine
Model	Cummins
Type	Six-cylinder,water-cooled electronic injection
Rated power	209KW
Rated speed	2100rpm
Crane Parameters
Max. total rated lifting load	80t
Boom	11.9~46m
Fully extended boom+jib	63.5m(two-section,angle 0°,30°)
Base boom	11.32m
Main winch	125m/min
Auxiliary winch	125m/min
Boom angle	-2°~80°
Boom elevating time	110s
Boom extending time	155s
Slewing speed	2r/min
Turning radius at swing table tail	4625mm
Hydraulic System
Lifting device	Axial piston hydraulic motor
Slewing device	Axial piston hydraulic motor
Hydraulic ram capacity	700L
Equipments and Structure
Boom profile	Five-section boom of octagon cross section
Jib profile	Two-section truss (inclination 0°,30°)
Boom extending device	Two-section telescopic cylinder and rope
Boom elevating device	Rear-mounted single cylinder elevation
Lifting device	Isolated main and auxiliary lifting devices,plantary reducer driven by hydraulic motor
Slewing device	Three-row roller slewing ring
Outrigger device
Type	H-shaped hydraulic outrigger with an option of both hand and electric control
Outrigger span	7800x7600mm (longitudinal+lateral)
Steel wire rope of main winch	Φ20~220m
Steel wire rope of auxiliary winch	Φ18~190m
Performance Specification
Max.speed	36km/h
Grade ability	60%
Four wheel steering radius	7.0m
Min.turning radius of jib nose	10.5m
Undercarriage and Structure
Drive type	4×4/4×2
Steering mode	Independent front axle, steering,small truning radius,crab walk and independent rear axle steering
Suspension	Rigid front axle,swing rear axle,hydraulic locking cylinder,electric control
Service brake	Hydraulic dual circle,disc brake
Parking brake	Mechanical disc brake,hydraulic release
Fuel tank capacity	320L
Dimension and weight
Overall length	14050mm
Overall width	3400mm
Overall height	3990mm
Wheel base	4650mm
Front tread	2520mm
Rear tread	2520mm
Overall weight	58000kg
Front axle weight	30350kg
Raer axle weight	27650kg

Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.

Condition	Brand New
Warranty	One year or 2000 working hours, whichever comes earlier.
Shipment Terms	FOB, CFR, CIF, CIP DAF
Company Name	Sinoway Industrial (Shanghai) Co.,Ltd
Add	30 A1, No.58, New Jinqiao Road ,Shanghai, China
Tel	+86 21 68598616
Fax	+86 21 50191951
Website	sinoway-sh.en.made-in-china.com
