• Model NO.：SWORC250
• Type：Straight Arm
• Drive Type：4X4
• Travel Speed：50 Km,H
• Boom Length：9.7 M
• Max. Load Moment (Base Boom)：990kn.M
• Transport Package：Nude
• Specification：Operating weight 26.3 ton
• Trademark：SINOWAY
• Origin：China
• HS Code：84292090
• Production Capacity：100 PCS , Year

Basic Info.

Model NO. SWORC250 Type Straight Arm Drive Type 4X4 Travel Speed 50 Km/H Boom Length 9.7 M Max. Load Moment (Base Boom) 990kn.M Transport Package Nude Specification Operating weight 26.3 ton Trademark SINOWAY Origin China HS Code 84292090 Production Capacity 100 PCS / Year

Product Description

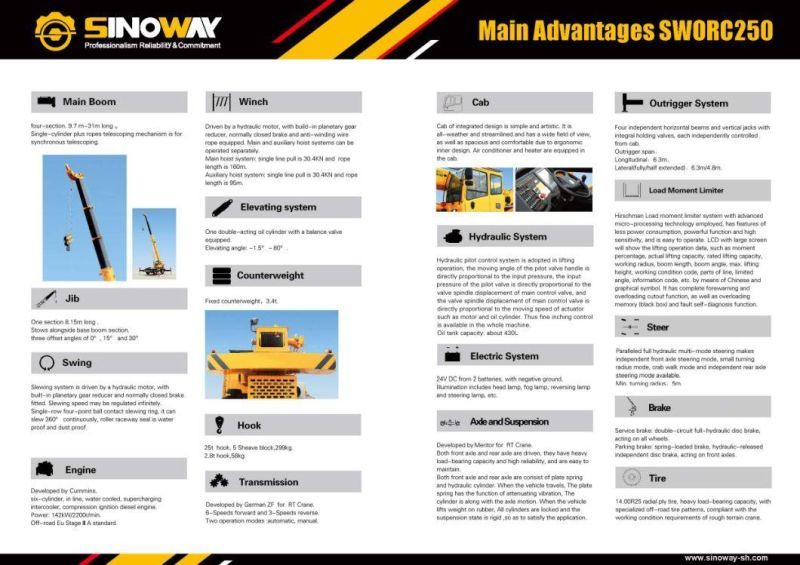

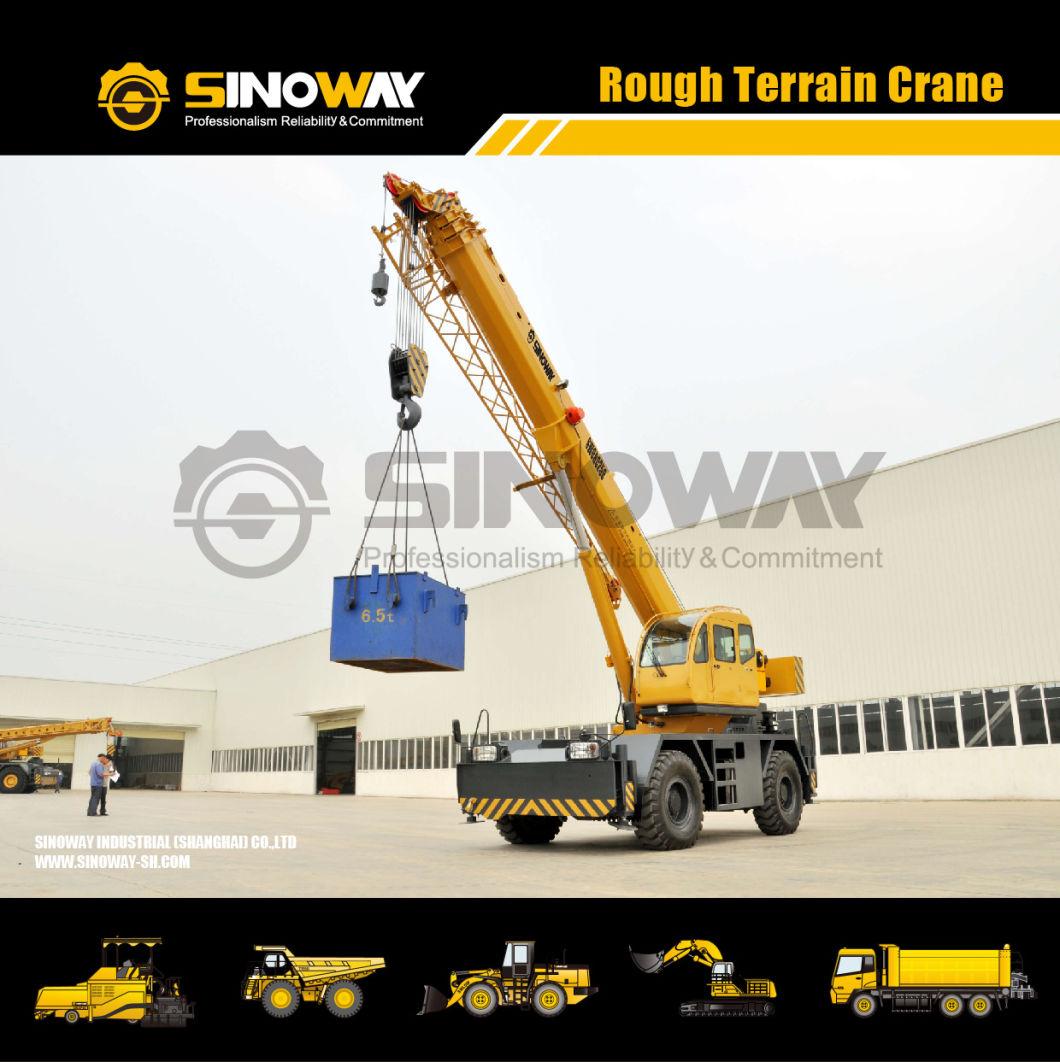

Cummins engine, 142 Kw, Four section boom, 9.7-31 m length.Single-cylinder plus rops telescopicing mechanism is for synchronous telescoping. Winch is driven by hydraulic motor, with build-in planetary gear reducer, normally closed brake and anti-winding wire rope equipped. main and auxiliary hoist system can be operated separately. Main hoist system: single line pull is 31 KN and rope length is 160 m. Auxiliary hoist system: single line pull is 31 KN and rope length is 95 m.
Equipped with German ZF tranmission with F6 & R3 shift, Two operation modes: Automatic and manual. Axles are adoped Meritor for RT crane. Both front and rear axle are drived, they have heavy load-bearing capacity and high reliability, and are easy to maintain. Both front axle and rear axle are consist of plate spring and hydraulic cylinder. When the vehicle travels, the plate spring has the function of attenuating vibration.The cylinder is along with the axle motion. When the vhicle lifts weight on rubber, all cylinders are locked and the suspension stste is rigid, so as to satify the application. Brakeing system for service is with double-circuit full hydraulic disc brake.acyion on all wheels. Parking brake is spring-loaded brake, hydraulic-released independent disc brake, acting on front axles.

Engine
Make	CUMMINS
Rated power	142KW
Rated speed	2200rpm
Emission	Off-road, Eu stage IIIA
Drive type	4×2, 4×4
Dimension & Weight
Overall length	11703mm
Overall width	2700mm
Overall height	3385mm
Wheel base	3700mm
Tread (F/R)	2200m/2200mm
Overhang (F/R)	1601mm/1867mm
Extension (F/R)	4484mm/51mm
Total mass	26300kg
Front axle load	12696mm
Rear axle load	13604mm
Main Technical Specification
Max. Rated lifting capacity	25t
Min. Rated working radius	3m
Slewing radius at turntable tail	3698mm
Max. Load moment
Base boom	989.8kN.m
Fully-extended boom	588kN.m
Outrigger span
Longitudinal	6.3m
Lateral(fully/half extended)	6.3/4.8m
Lifting height
Base boom	9.1m
Fully-extended boom	30.8m
Fully-extended boom+jib	37.7m
Boom length
Base boom	9.7m
Fully-extended boom	31m
Fully-extended boom+jib	39.15m
Jib offset angle	0°, 15°, 30°
Performance Specification
Max. Travel speed	50km/h
Min. Turning radius	5m(4 wheels)/8m(2 wheels)
Min. Ground clearance	345mm
Approach angle	22°
Departure angle	19°
Brake distance(24km/h)	9m
Max. Grade ability	55%
Tire	14.00R25
Number of tires	4
Working Speed
Time for boom raising	55s
Time for boom extending fully	70s
Max. Slewing speed	2.0r/min
Outrigger extending/retracting time
Outrigger beam(extending/retracting)	35s/30s
Outrigger jack(extending/retracting)	45s/35s
Hoisting speed(at 4th layer no load)
Main winch	130m/min
Auxiliary winch	130m/min

Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.

Condition	Brand New
Warranty	One year or 2000 working hours, whichever comes earlier.
Shipment Terms	FOB, CFR, CIF, CIP DAF
