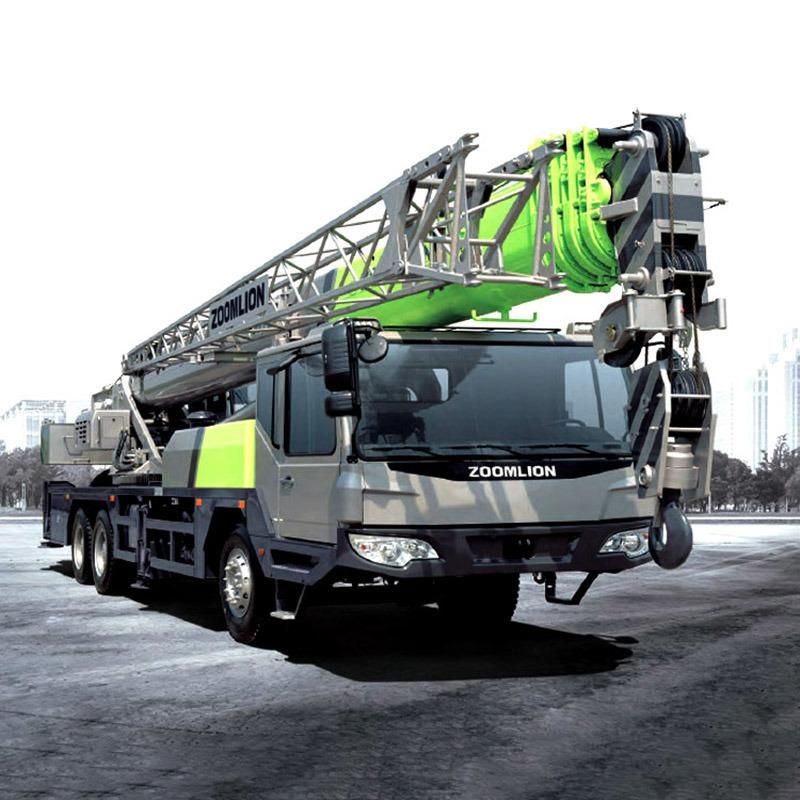

Hot Sale Zoomlion 25 Ton Hydraulic Mobile Crane Truck Cranes Ztc250V431
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：2
- Crane Jib：Four-Arm
Base Info
- Model NO.：ZTC250V431
- Type：Folding
- Max. Driving Speed：90km,H
- Tail Slewing Radius：3265mm
- Transport Package：Container
- Specification：13150*2500*3450 mm
- Trademark：ZOOMLION
- Origin：China
Description
Overview
Product Description
- Detailed Photos
Item Unit Value Remarks Working performance Max. rated lifting capacity kg 25000 Max. load moment of basic boom kN.m 960 Max. load moment of main boom(fully extended) kN.m 600 Max. load moment of basic boom m 11.4 Max. lifting height of main boom m 35.4 These parameters do not include deflection of main boom and jib Max. lifting height of jib m 43.0 Working speeds Max. hoist rope speed(Main winch) m/min 135 At the 4th layer Max. hoist rope speed(Auxiliary winch) m/min 135 At the 2nd layer Boom demrricking up time s 25 Boom demrricking up time s 25 Slewing speed r/min 0 -2.7 Driving parameters Max. driving speed km/h 90 Max. gradeability % 42 Turning diameter m ≤20 Min. ground clearance mm 250 Oil consumption per hundred kilometers L 28 Mass Deadweight in driving condition kg 27800 Complete vehicle kerb mass kg 27670 Front axle load kg 6500 Rear axle load kg 21300 Dimensions Overall dimensions(L×W×H) mm 13100×2500×3450 Outrigger spread(L) m 5.40 Outrigger spread(W) m Fully extended:6.2,
Intermediately extended:4.25Tail slewing radius mm 3265 Main boom length m 10.7 - 35.0 Boom angle ° -1 - 80 jib length m 8.0 Offset ° 0,15,30
