• Model NO.：DG10-004
• Sling Type：Wire Rope
• Power Source：Electric
• Moving Type：Orbital
• Installation：Assembled
• Transport Package：Bulk Shipment Packings
• Specification：SGS
• Trademark：double grand
• Origin：Qingdao
• HS Code：3921110000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. DG10-004 Sling Type Wire Rope Power Source Electric Moving Type Orbital Installation Assembled Transport Package Bulk Shipment Packings Specification SGS Trademark double grand Origin Qingdao HS Code 3921110000 Production Capacity 300 Sets/Month

Product Description

Capacity: Up to 20 Tons
Span: Up to 22.5 Mtr.
Lift of height: 6 Mtrs & Above

Standard Features:

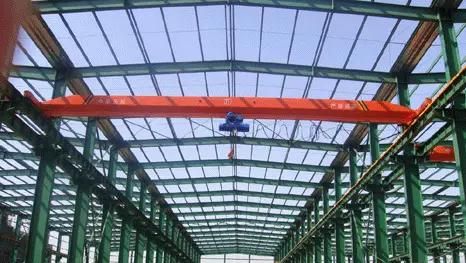

Design: The Electric Overhead Traveling Cranes are designed & manufactured accordance with ISO 9001: 2000 ISO 14001: 2004 and OHSAS 18001 considering factor of safety in respect to appropriate class of duty.

Motors: The motors are used specially crane duty suitable for frequent starting, reversing & braking in accordance with ISO 9001: 2000 ISO 14001: 2004. Motors are totally enclosed in dust proof construction foot / flange mounted TESC / TEFC, Sq. Cage motors with integrated safety brakes, insulation class F, IP54 protection for hoisting, CT & LT motions.

Brakes: Mechanical brake

Gear Box: The entire gear boxes are made of accurate hob cut helical / spur gears & pinions having hardness 250 to 350 BHN made from carbon alloy steel. All gears & pinions running on antifriction type ball / roller bearings in totally enclosed oil bath giving constant splash lubrication. The helical / Spur gear designed for adequate strength and optimum wear resistance for smooth operation & long life.

Wheels: The wheels of crane crab, main beam and end carriage are produced in our special Vacuum casting workshop (No sand inclusion technic) ) which make our wheels more elastic and outer surface hard-wearing and durable.

Electrical Panel: -Modular design, ease to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading.

Limit Switch: Safety limit switches for stoppers will be provided to prevent over traveling in all motions.

Painting: -Two coats of primer before assembly & two coats of synthetic enamel after testing.

Optional Features:
Variable speed through VVF Drive
Soft starter
Slipring motors
Wireless Radio Remote control
Shrouded DSL system for power feeding
Flameproof
Cabin Operated
PLC automatic Control system
