• Model NO.：Twin-mast
• Specification：CE, ISO
• Trademark：BYW
• Origin：CHINA
• Production Capacity：5000 Sets ,Year

Basic Info.

Model NO. Twin-mast Specification CE, ISO Trademark BYW Origin CHINA Production Capacity 5000 Sets /Year

Product Description

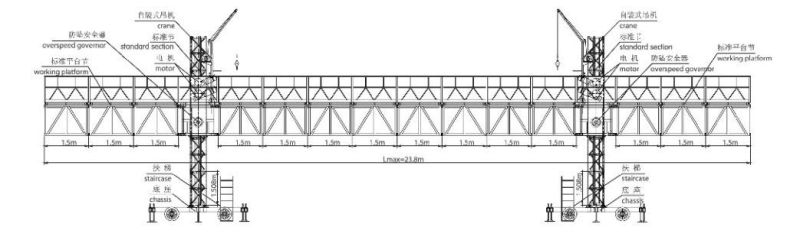

Twin-mast working platform, also called climbing type construction lifting platform, is a kind of aerial operation
machinery which is driven by gear and rack, is lifted and guided by standard section. The aerial operation
platform is mainly composed of the drive elements, underframe, standard section, tripod mounting deck, rail,
wall-attaching rack, electric control system and other spare parts. And this machinery possesses the following
features, like without prefabricated base, large hoisting capacity, high construction efficiency, large working
area and safety and reliable. It can lift the staffs and equipment to the required height and can allow one or
more person to work on the platform. It is especially suitable for the aerial glass wall construction and external
wall fixture and fitting, and it is also suitable for hanging ceiling and installing wire duct. The construction lifting
platform is in stable operation and its installation is convenient, and it can be safely operated. The construction
lifting platform is prevailing in the building construction; To some extent, it can replace aerial operation hanging
baskets and scaffolds.

Details specs pls reference below table.
Besides,we can make according to client's requirements

Model	Twin-mast
Max length of plat form	23.8m
Platform width	1.25m
Rated speed	8.5m /min
Power	2*2*5.5 k w
independent height	8m
Max Height	150m
height (free standard)	8m
Ties distance (Assistant Support Frame)	3 -9 m
Max load	2000kg
Section length	1508mm

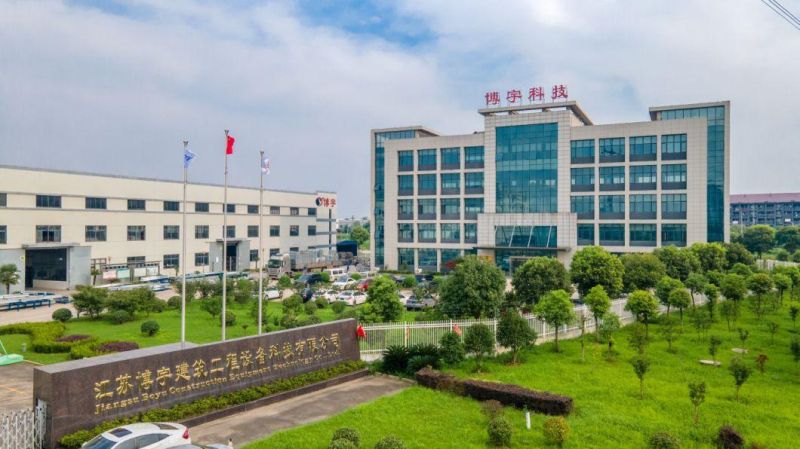

Jiangsu Boyu Construction Equipment Technology Co., Ltd. was founded in 1997 as a high-new technology
enterprise. Our company specializes in designing, manufacturing, selling and installing the permanent or
temporary suspended façade access equipment. After over 20 years of sustained and rapid development,
our company has become the industry's best-known brand and enjoyed good reputation both in domestic
and overseas market. The main products include Building Maintenance Unit, Suspended Working Platform
and Intelligent Three-Dimensional Parking System. Our products sell well all over China and are exported
to Europe (Russia, Romania, Bulgaria, Serbia), the Middle East (UAE, Bahrain, Jordan, Qatar, Saudi Arabia,
Iran), Africa (Nigeria, Ethiopia), Southeast Asia (Singapore, Vietnam, Philippines), America (USA, Mexico,
Brazil, Chile, Uruguay, Bolivia), etc.
