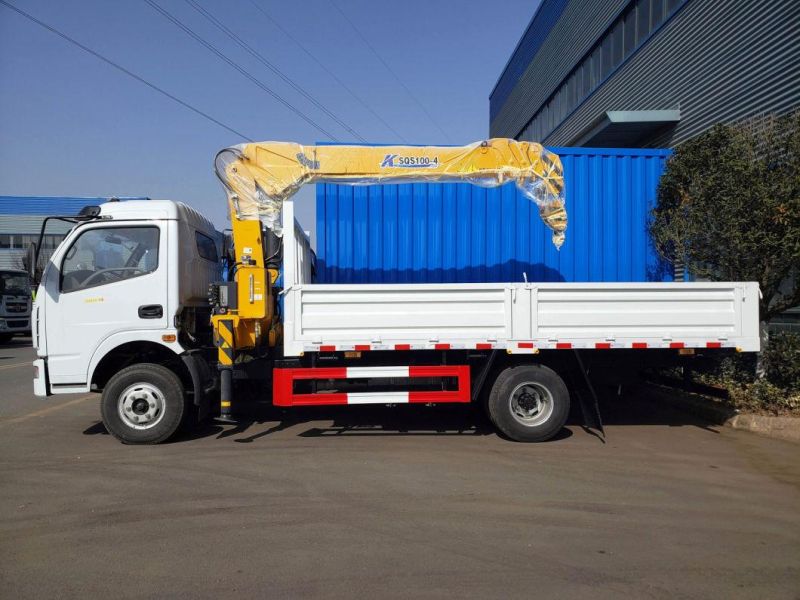

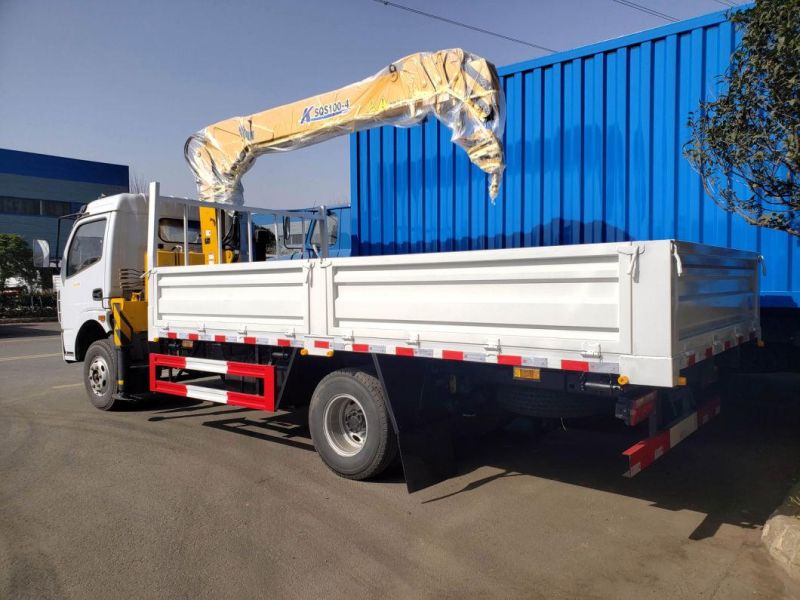

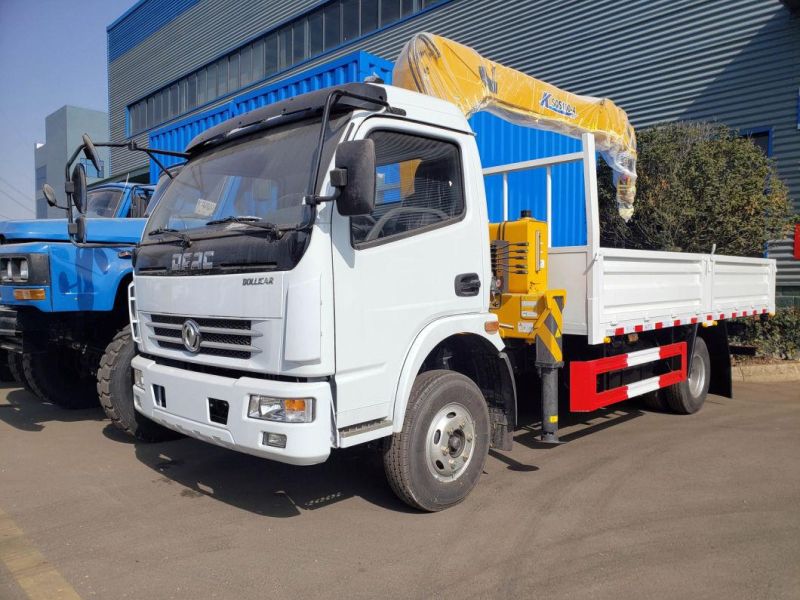

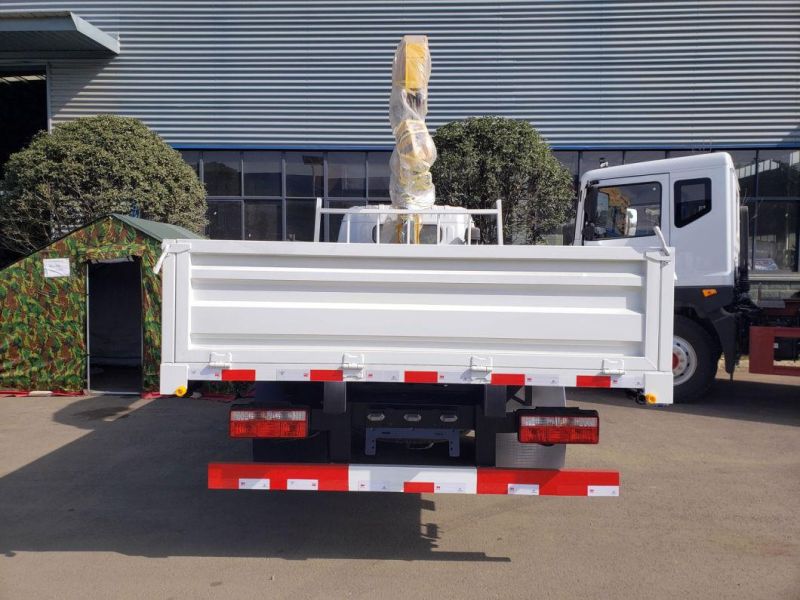

Truck Mounted Crane Sq10sk3q Mobile Truck with Crane 10 Ton

HUBEI RUILI AUTOMOBILE CO., LTD.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：10-15m
  • Maximum Lifting Weight：2-4t
  • Shaft Number：2
  • Crane Jib：Four-Arm

Base Info

  • Model NO.：CLW5089SCD
  • Type：Straight Arm
  • Chassis Brand：Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
  • Gearbox：Fast, 6forwards & 1reverse
  • Engine Brand：Chaochai, 120HP
  • Crane Brand：Sany, Clw, etc.
  • Crane Boom Type：Straight Telescopic Crane, Knuckle Crane
  • Cargo Material：Q235 Carbon Steel
  • Warranty：1 Year
  • Crane Capacity：2ton, 3ton, 3.5ton, 4ton, 5ton, 2.5ton, etc.
  • Boom Type：Straight 4-Arm Telescopic Boom
  • Cargo Thickness：Side 1.5mm, Bottom 2.5mm
  • Transport Package：Naked, Waxed, Bulk Ship, RO-RO
  • Specification：7070*2335*3250 mm
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

Product namedongfengTruck Mounted with Crane with 3.2T CapacityChassis modeldomdongfeng Truck with CraneOD(mm)L×W×HAprro 7070*2335*3250 mmThe size of the box4350*2150*550 mmTotal Mass8250KGAxle load2090KG/4720KGColorAccording to your requirementEngineMaximum power105KWDisplacement3856mlFuel typeDiesel OilWheel Base(mm)3800Type & Size of Tyre7.00-16 14PR,7.00R16 14PRNumber of tyre6Max Speed110Km/hTechnical parameter of crane(Straight Boom & Folding-Type Boom)Crane weight (KG)1200max. lifting weight(KG)4000Rotation Angle360ºEquipment for 4tons Crane Mounted PartsWorking Platform360°turning(left or right), H-shape legs 360°Cargo Box Dimension4350×2150×550mmMaterial of box bodyCarbon steelExtendable boom section1Boom TypeStraightLifting Max. Weight4000KGLifting Max. Height7560 mmWorking Radius7730 mm

Truck Mounted Crane Sq10sk3q Mobile Truck with Crane 10 Ton
Truck Mounted Crane Sq10sk3q Mobile Truck with Crane 10 Ton
Truck Mounted Crane Sq10sk3q Mobile Truck with Crane 10 Ton
Truck Mounted Crane Sq10sk3q Mobile Truck with Crane 10 Ton

Truck Mounted Crane Sq10sk3q Mobile Truck with Crane 10 Ton
Truck Mounted Crane Sq10sk3q Mobile Truck with Crane 10 Ton
Truck Mounted Crane Sq10sk3q Mobile Truck with Crane 10 Ton
Truck Mounted Crane Sq10sk3q Mobile Truck with Crane 10 Ton
Truck Mounted Crane Sq10sk3q Mobile Truck with Crane 10 Ton
Truck Mounted Crane Sq10sk3q Mobile Truck with Crane 10 Ton
