• Model NO.：CLW5089SCD
• Type：Straight Arm
• Chassis Brand：Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
• Driving Model：LHD & Rhd
• Gearbox：8 Forwards and 1 Reverse
• Crane Brand：Palfinger, Clw, etc.
• Crane Capacity：2t 3.2t 4t 5t 6.3t 8t
• Crane Boom Type：Straight Telescopic Crane, Knuckle Crane
• Boom Type：Straight 4-Arm Telescopic Boom
• Cargo Material：Q235 Carbon Steel
• Warranty：1 Year
• Turning Angle：360 Degree
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：12ton, 14ton, 16ton, 18ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension11950X2500X3850 (mm)Gross Vehicle Weight25000(Kg)Curb Weight14110(Kg)Chassis SpecificationChassis BrandDongfengDrive model6*4CabinSingle, Left Hand Driving, with air conditionalNumber of Passengers3EngineModelYC6A260, 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGRPower191KW/260HPEmission standardEURO 3Displacement7250(ml)Fuel typeDieselGearboxFast, 8Forwards & 1ReverseBrake SystemAir breakWheel Base4350mm+1300mmFront/Rear Axle Loading5000/10000(Kg)Approach/Departure Angle23/12(°)Overhang1250/3545(mm)Tire11.00-20,Max Driving Speed85(km/h)Upperstructure SpecificationCargo BodyDimension8500×2290×550(mm)MaterialQ235 carbon steelCargo ThicknessSide 1.5mm, Bottom 2.5mmVolume10m³Working SystemBoom TypeStraight 4-Arm telescopic boomCraneCrane BrandSQ10SK3Q(XCMG)Range of Sprayer30mMax Lifting Moment25(T.M)Max Lifting Capacity10000(kg)Max lifting height12(m)Rotation angle360(°)Installation space1150(mm)Recommented power30(kw)Maximum working pressure26(Mpa)Max Flow63(l/min)Crane weight3800(kg)Oil tank capacity160(L)LegLeg typeH typeLeg Span2.28-5.9(m)Hydraulic systemPressure18(M pa)Capacity70(l)Other ConfigurationControl system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.OptionsCaution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

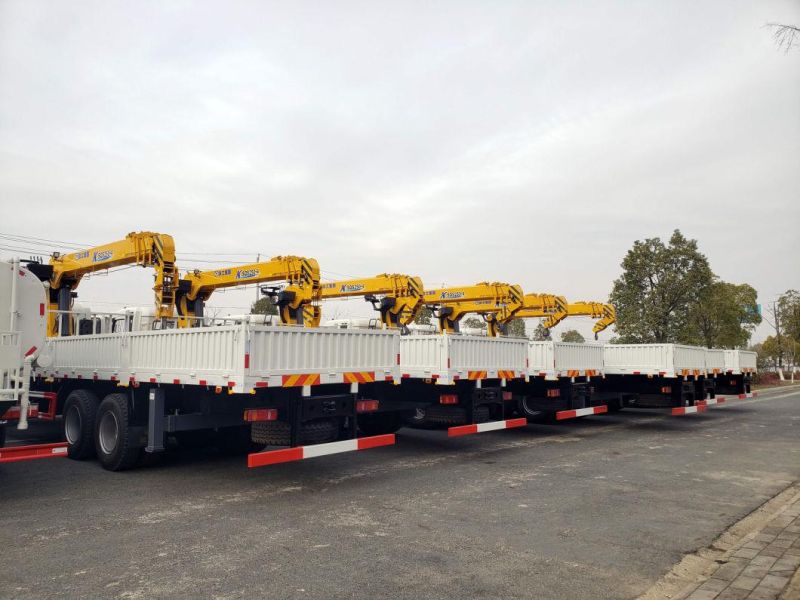

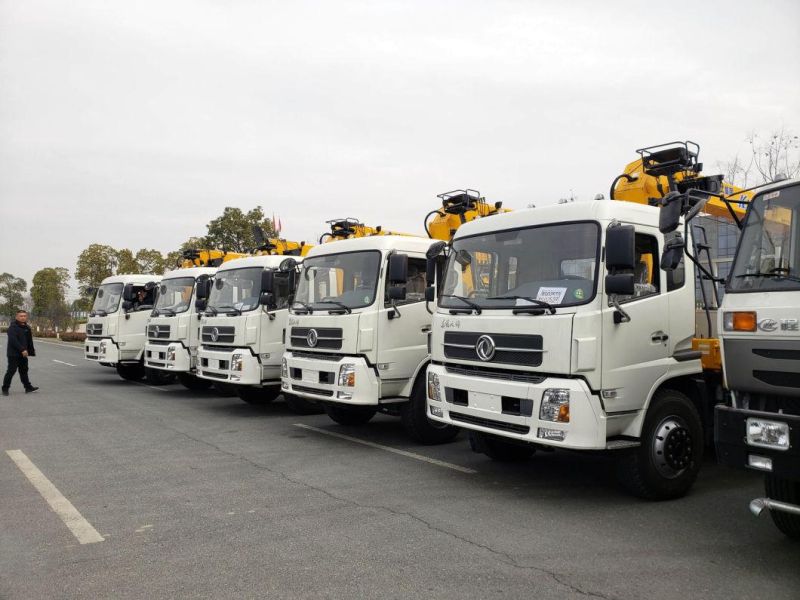

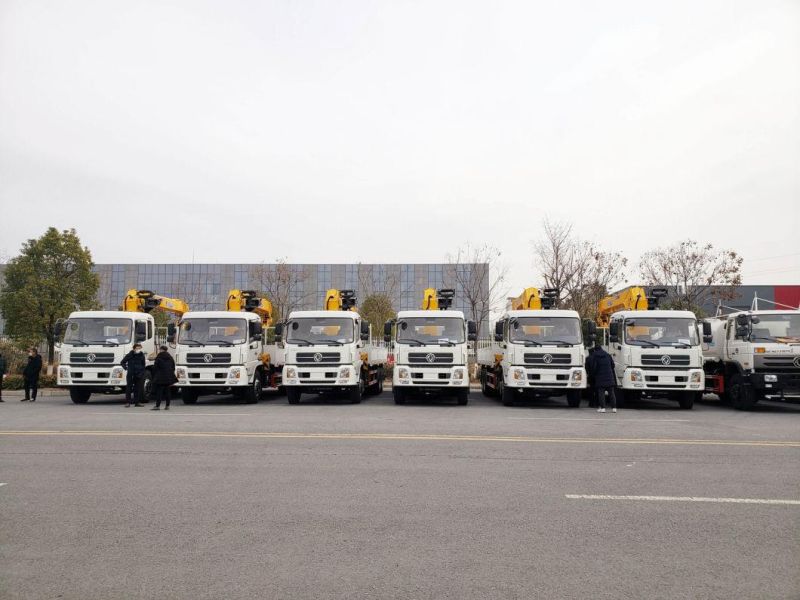

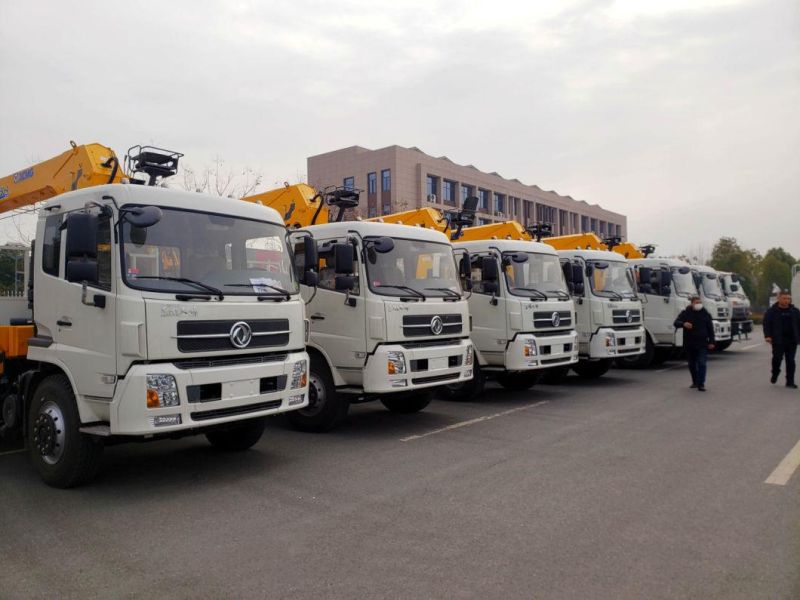

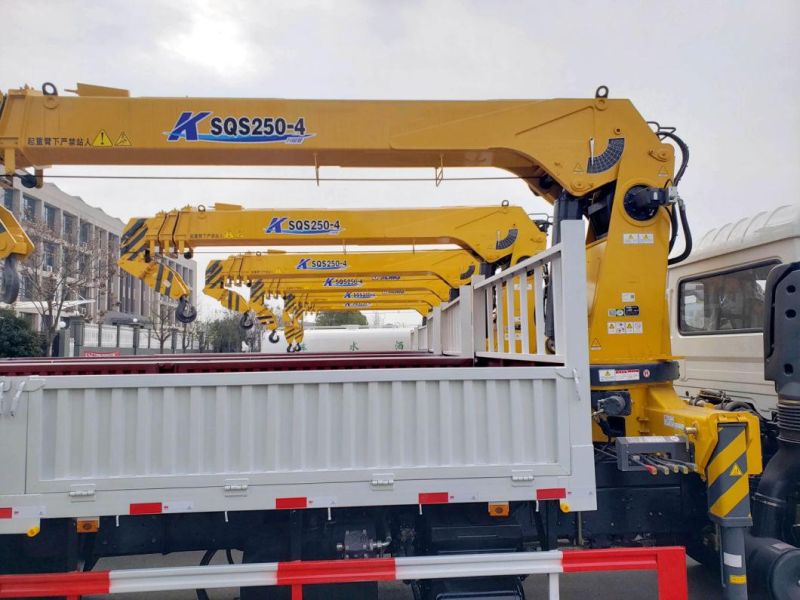

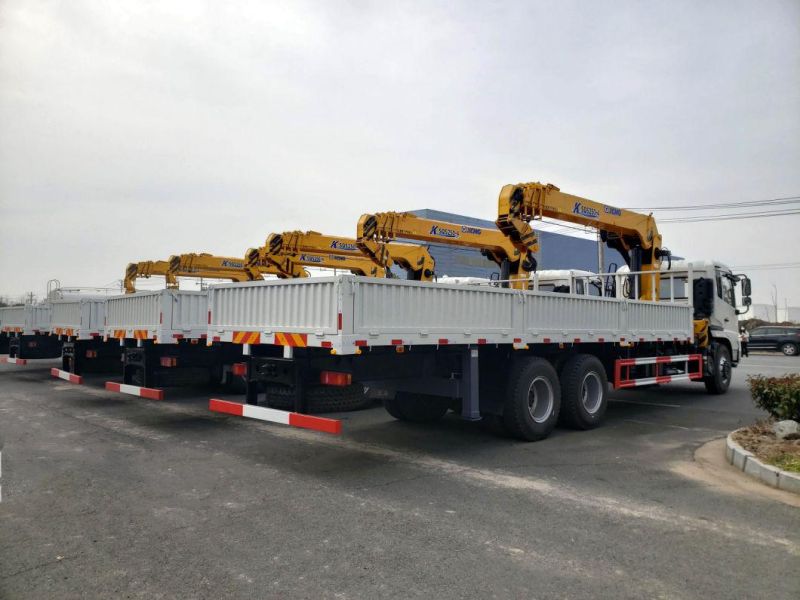

Reference Photos
