• Model NO.：MH
• Type：Single Girder Crane
• Color：Industrial Yellow and Red
• Application：Construction Usage, Workshop Usage
• Sling Type：Wire Rope
• Power Source：380V,50Hz,3p, Can Be Customized
• Stepless Speed Control：Available (Variable Frequency Control)
• Electrical System Brand：Siemens,Schneider,Chint
• Affiliate Documents：Siemens,Schneider,Chint
• Hoist Lift Speed：0.8,8 M,Min
• Cross Speed：20 M,Min
• Long Travel Speed：20 M,Min, 5,20 M,Min
• Transport Package：Wooden or Plastic
• Specification：A3-A5
• Trademark：LYFOO
• Origin：Henan, China
• HS Code：84261930
• Production Capacity：1, 000 Sets Per Year

Basic Info.

Model NO. MH Type Single Girder Crane Color Industrial Yellow and Red Application Construction Usage, Workshop Usage Sling Type Wire Rope Power Source 380V/50Hz/3p, Can Be Customized Stepless Speed Control Available (Variable Frequency Control) Electrical System Brand Siemens/Schneider/Chint Affiliate Documents Siemens/Schneider/Chint Hoist Lift Speed 0.8/8 M/Min Cross Speed 20 M/Min Long Travel Speed 20 M/Min, 5/20 M/Min Transport Package Wooden or Plastic Specification A3-A5 Trademark LYFOO Origin Henan, China HS Code 84261930 Production Capacity 1, 000 Sets Per Year

Product Description

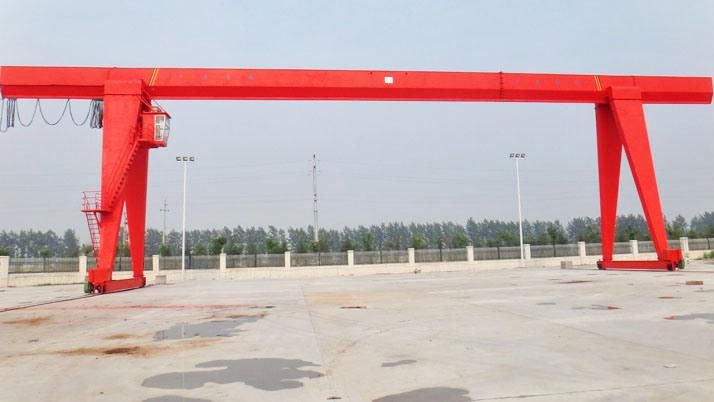

Single Girder Gantry Crane (MH)

Full Gantry Crane



MH single beam full gantry crane is matched with CD1/MD1 model wire rope hoist. It is a kind of track travelling midium-duty class gantry crane. The capacity from 3ton to 32ton, span from 12m to 35m or others , working temperature within-20--+40 centigrade. This gantry crane is commonly used outside yard for loading/unloading and moving materials. The control is pendant pushbutton control, cabin control or remote control. If your workshop does not have any collumn to support an overhead crane, the gantry crane can also be a solution.

Features

  - Designed for indoor & outdoor use.

  - The structure can be box type or truss type

  - Equipped by electric wire rope hoist CD/MD type or Chain hoist.

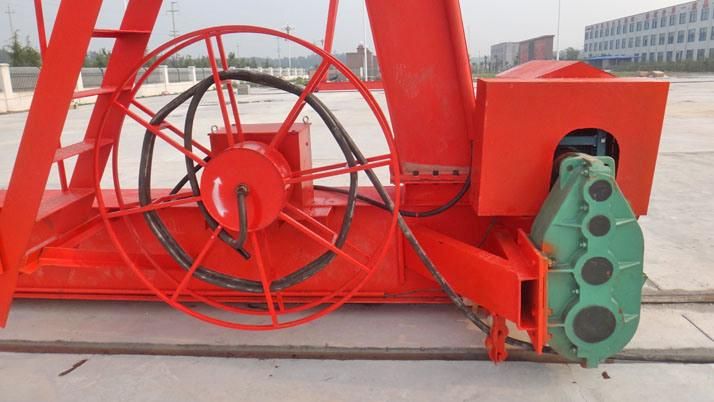

  - Power supply by cable reel system or bus bar

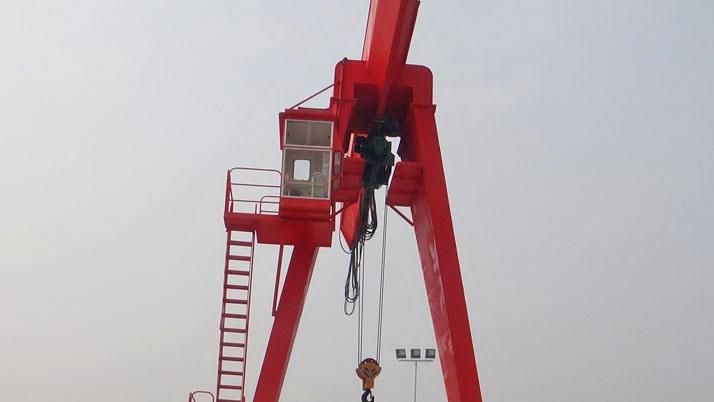

  - Controlled via push button pendant/Radio remote/Cabin, separately or any combination.

  - Tailored based on client's detailed requirement.

Semi-gantry crane

Inside workshop, semi-gantry is available. The top end carriage runs on runway, while bellow end carriage run on the ground. Semi-gantry crane is kind of full gantry crane, and has  the same features of full gantry crane. Semi-gantrycranes are suitable solution for the area in whichoverhead runways are not practical,and also impossible to build double track for crane travelling.



The leg is often desianed with straight on the outside part, so that gives more hook approach.



Features
  - Designed for indoor & outdoor use.
  - The structure can be box type or truss type
  - Equipped by electric wire rope hoist CD/MD type or Chain hoist.
  - Power supply by cable reel system or bus bar
  - Controlled via push button pendant/Radio remote/Cabin, separately or any combination.
  - Tailored based on client's detailed requirement.

Semi-gantry crane
Inside workshop, semi-gantry is available. The top end carriage runs on runway, while bellow end carriage run on the ground. Semi-gantry crane is kind of full gantry crane, and has  the same features of full gantry crane. Semi-gantrycranes are suitable solution for the area in which overhead runways are not practical,and also impossible to build double track for crane travelling.

The leg is often designed with straight on the outside part, so that gives more hook approach.  Notes:This product is widely applicable in factory, warehouse, logistics etc, but it strictly forbid to use in such dangerous operating as easily combustible, explosive, corrosive, acid, alkali, plating, steam, heat liquid, overloading , dust etc.
 Safety insurance:1. Our cranes are all equipped with weight limiters, buffer, distance limit switch, voltage protection equipment, and emergency stop system and so on.2. The equipment is controlled by central control system. Quality guaranty:1. The quality of our crane would be guaranteed for one year, in this period, if any quality problem happens under correct operation, we will be responsible for repairing of replacing it for free.2. Low charge for maintenance when warranty is expired.
