• Model NO.：LD-A
• Type：Ordinary
• Quality：Reliability & Durability
• Types of Electric Hoist：CD1, MD1
• Crane Traveling Speed：20,30 M,Min
• Crane Motor：Zd52-4,18.5kw and Zd41-4,7.5kw
• Lifting Speed(M/Min)：8, 0.8,8; 7, 0.7,7
• Power Supply：380V,50Hz,3, Can Be Customized
• Stepless Speed Control：Available (Variable Frequency Control)
• Operation Method：Pendant, Remote Controller
• Electrical System Brand：Siemens,Schneider,Chint
• Affiliate Documents：English Operation Manual, Wiring Diagram
• Transport Package：Wooden Box, Plywood
• Trademark：LYFOO
• Origin：Xinxiang, Henan, China
• HS Code：84261120
• Production Capacity：15000 Per Year

Basic Info.

Model NO. LD-A Type Ordinary Quality Reliability & Durability Types of Electric Hoist CD1, MD1 Crane Traveling Speed 20/30 M/Min Crane Motor Zd52-4/18.5kw and Zd41-4/7.5kw Lifting Speed(M/Min) 8, 0.8/8; 7, 0.7/7 Power Supply 380V/50Hz/3, Can Be Customized Stepless Speed Control Available (Variable Frequency Control) Operation Method Pendant, Remote Controller Electrical System Brand Siemens/Schneider/Chint Affiliate Documents English Operation Manual, Wiring Diagram Transport Package Wooden Box, Plywood Trademark LYFOO Origin Xinxiang, Henan, China HS Code 84261120 Production Capacity 15000 Per Year

Product Description

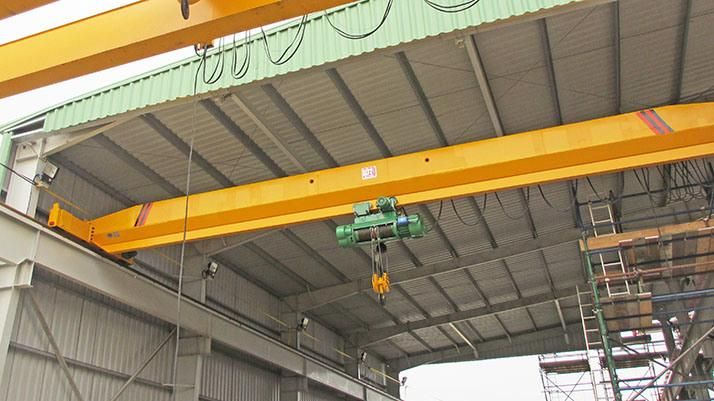

LD type single girder bridge crane with electric hoist (1-20t)
Brief Introduction:

Single girder overhead crane is a kind of material lifting equipment which was hung on the top of the workshop, ware house and stock ground. Both of its ends are located on tall concrete pillars or metal stents. The bridge structure lies and runs on both sides of the elevated track, This type crane can take full advantages under bridge space of lifting materials and not hindered by ground equipment It's owns the largest number used lifting machinery.

The LD type of under running overhead crane (also called bridge crane )is the most popular designing since the very beginning.  Our annual turnout is 20,000 units for the whole market. The main girder adopts 6mm and 8mm thickness steel plate. Chinese workshop has a 1700mm clearrance above the rail, which is excellenct for the maintenance of the crane.  In some Middle East countries, the clearance is  less than this, and please indicate this data when you placing the order.

Steel Plate Cutting and Treatment

The board was cut by auto-cutting machine.



Main Beam

We reserve the concept of "safety factor", and remain the traditional main beam fabrication methord. Each of the beam is made by 6mm thickness of side board, and 8mm top and bellow board.



Bearing System

The  reducer is hardtooth designing. Bearing is HA/WA/LUO 3 brands. Casting box type. The gear box is made by our factory in order to give a reliable quality. The market has many suppliers, and some of them can get 50% price than ours.  However, we do not reduce the quality in order to reduce the cost.



Safety Device

  Long travel limit switch

  Cross travel limit switch

  Counter-weight and pedal limit switch for hoisting

  Pedal limit switch for lowing

  Overload limit switch



End Trucks (Carriage)

Soft start driving system(380v only) makes the long travel smoothly, reduces noise.  Modular system designing gives the crane more free working space. Unique conbinations with steel profiles sections for maximum distance between suspensions.

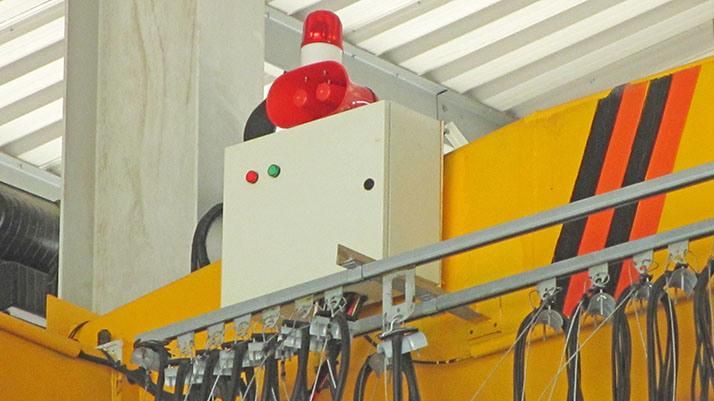

Double C-track Festoon System



 4mm thickness national standard trackpull  and push wheel with sealed bearing

 Flat cable for strong life.

 Electrical box has indication of working.

 This double C-track festoon system makes the driver can be seperate from the hoist , so that give a maximum safety protection.

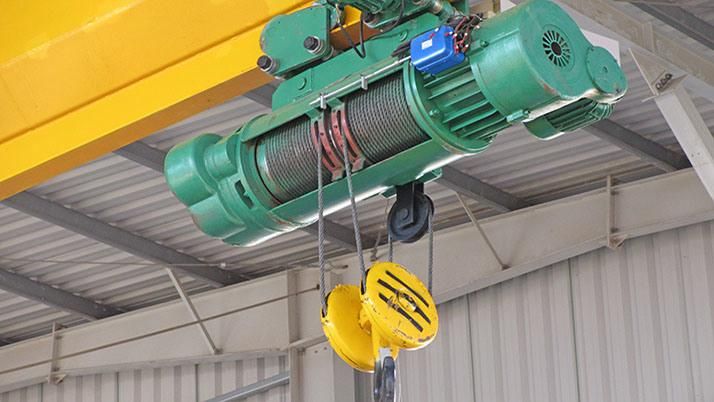

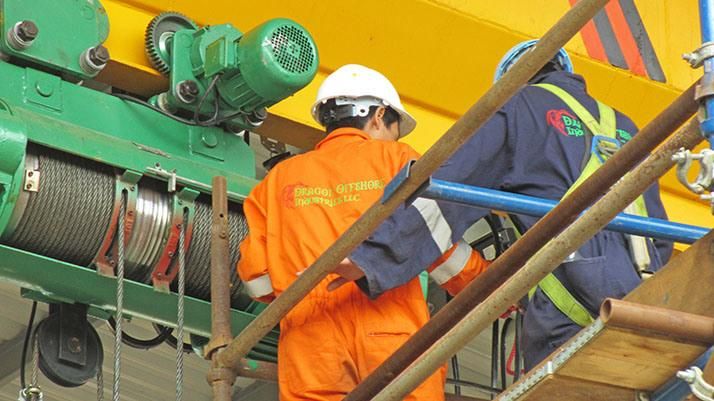

Hoist

The crane forms  a complete set with CD1/MD1 electric hoist. Our Hoist  Motor is a very part of electrical hoist. we choose the Nanjing Zongchang(Best in China) motor to provide you a best usig experience.it has the advantages of soft starting and outstanding electricity saving effect.

Our hooks are all forged under the national standard. we can assure you the good quality.



MD1 type  electrical hoist add one more motor with lower output  based on CD1type.MD1 type can adjust to the work need more accuracy. it can stop at your exact litfing position for you to operate


Notice:

As this kind of crane is customized, in order to offer you most suitable design and solution, please confirm following information when you send inquiry.

1. Lifting capacity.
2. Span length. (rail center to rail center)
3. Lifting height. (hook center to ground)
4. Do you need bus bar, rail from us?
5. Local power supply 380V 50Hz 3P?
6. Working condition: What goods to lift?
7. Drawings of working place would be appreciated.
