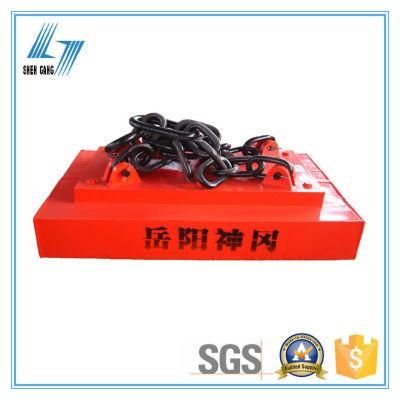

Steel Billet Electro Lifting Magnet for Overhead Crane
Yueyang Shengang Lifting Electromagnet Co., Ltd.- Certification：ISO9001
- Condition：New
- Operation Form：Remote Control
- Maximum Lifting Height：15-20m
- Maximum Lifting Weight：20-50t
- Color：Red
Base Info
- Model NO.：MW22-16090L,1
- Shape：Rectangular
- Rated Voltage：DC-220V
- Duty Cycle：60%
- Cold-State Power：13.8kw
- Mass：3000kg
- L*W*H：1600*900*300mm
- Conductor Coil：Aluminum or Copper Optional
- Magnet Application：Lifting Blooming Billet & Girder Billet
- Complete Sets of Equipment：Magnet,Cable Reel,Control Cabinet etc.
- Transport Package：Standard Export Package
- Specification：ISO9001: 2008
- Trademark：SHENGANG MAGNET
- Origin：China
- HS Code：85059010
- Production Capacity：100 Sets Per Month
Description
Technical data for normal temperature type: DC-220V, TD-60%Model MW22-7090L/1 MW22-12595L/1 MW22-15095L/1 MW22-16090L/1 MW22-16095L/1 MW22-20090L/1 MW22-25090L/1 Overall
dimension (mm) A 700 1280 1500 1600 1600 2000 2500 B 900 950 950 900 950 900 900 C 1000 1150 1120 1275 1150 1700 1700 D 200 300 500 700 640 600 600 E 125 125 125 125 125 230 230 F 200 200 200 200 200 370 370 G 38 38 38 38 42 70 70 Mass(kg) 1500 2480 3860 3000 4130 5500 6000 Cold-state power (kw) 6.6 8.6 10 13.8 8.8 15 15.4 Example for lifting capacity
(combination of two units) Blooming billet (mm) (4 units lifting) 115×115×20500 256×295×12000 (4 pieces) 320×420×10000 (2 pieces) (4 units lifting) 115×115×20000 (10 pieces) 320×420×10000 (2 pieces) 350×550×10000 (2 pieces) 350×550×10000 (3 pieces) Girder billet (mm) 570×300×10000 (2 pieces) 550×300×10000 (2 pieces) 550×300×10000 (2 pieces) 1200×400×10000 (1 piece) 1200×400×10000 (2 pieces)
