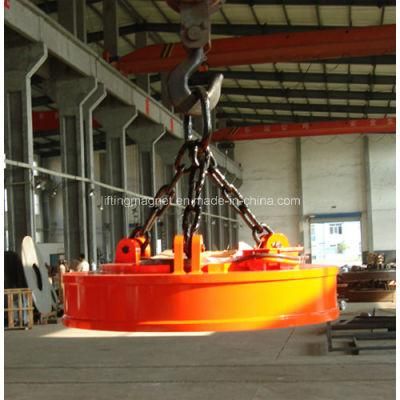

Circular Type Lifting Electromagnet for Overhead Crane
Yueyang Shengang Lifting Electromagnet Co., Ltd.- Certification：ISO9001
- Condition：New
- Operation Form：Crane Console
- Maximum Lifting Height：10-15m
- Maximum Lifting Weight：<20t
- Color：Red
Base Info
- Model NO.：MW5-120L,1
- Shape：Round,Circular
- Rated Voltage：DC-220V
- Duty Cycle：60%
- Electric Current：45.5A
- Cold-State Power：10kw
- Diameter of Magnet：1200mm
- Lifting Capacity of Single Steel：7.5ton
- Weight：1700kg
- Conductor Coil：Aluminum or Copper Optional
- Transport Package：Standard Export Package
- Specification：ISO9001: 2008
- Trademark：SHENGANG MAGNET
- Origin：China
- HS Code：85059010
- Production Capacity：100 Sets Per Month
Description
Normal temperature type(Rated voltage DC-220V;Power-on sustaining rate TD-60%) Model Electric
current
(A) Cold-state
power
(kw) lifting capacity (kg) cold/hot state Mass
(kg) Overall dimension (mm) steel ball cast iron steel scrap A B C D E MW5-70L/1 15 3.3 2500 380/200 120/100 490 700 800 160 90 30 MW5-80L/1 18 3.96 3000 480/250 150/300 620 800 800 160 90 30 MW5-90L/1 26.6 5.9 4500 650/440 250/200 800 900 1090 200 125 40 MW5-110L/1 35 7.7 6500 1000/800 450/400 1350 1100 1140 220 150 45 MW5-120L/1 45.5 10 7500 1300/1000 600/500 1700 1200 1100 220 150 45 MW5-130L/1 54 12 8500 1400/1100 700/600 2010 1300 1240 250 175 50 MW5-150L/1 71.2 15.6 11000 1900/1500 1100/900 2830 1500 1250 350 210 60 MW5-165L/1 75 16.5 12500 2300/1800 1300/1100 3200 1650 1590 370 230 75 MW5-180L/1 102 22.5 14500 2750/2100 1600/1350 4230 1800 1490 370 230 75 MW5-210L/1 129 28.4 21000 3500/2800 2200/1850 7000 2100 1860 400 250 80 MW5-240L/1 154 33.9 28000 4800/3800 2850/2250 9000 2400 2020 450 280 90
To help you get the best electro lifting magnet for your application, we should have the following information:
1. What are the materials you want to lift?
2. What kind of steel and iron?
For example: Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
3. What's the lifting capacity you expect?
4. What kind of working site does the magnet work? Indoor or outdoor?
5. Kindly provide information of your power information (__V, DC/AC,
___Hz), and information for crane (single beam or double beam, single hook or double hook, how about the lifting capacity).
(More details, please feel free to contact us directly. )
Quick Response:
--We highly appreciate your any enquiry by email, fax or instant message.
--We will reply your email or fax within 24 hours.
--Please fell free to call us at any time if there is any questions.
Mobile: +86-(0)15073061783
Tel: +86-730-8648777 Fax: +86-730-8647119
