• Model NO.：ZAT1500
• Type：Straight Arm
• Boom Angle：-0.5 - 82°
• Jib Length：11, 18.6m
• Max. Gradeability：40%
• Max. Driving Speed：75km,H
• Max. Lifting Height of Jib：87,(95)M
• Transport Package：Roro,Container
• Specification：15390× 3000× 4000mm
• Trademark：Zoomlion
• Origin：Hunan, China
• Production Capacity：1000 Pieces,Per Month

ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg150000At 3m radiusMax. load moment of basic boomkN.m4704At 6m radiusMax. load moment of max. length boom boom(fully extended)kN.m1505At 32m radiusMax. load moment of basic boomm13.0 Max. lifting height of main boomm72These parameters do not include deflection of main boom
and jib. The value in the brackets is the value with the
extension installed.Max. lifting height of jibm87/(95)Working speeds                             Max. hoist rope speed(Main winch)m/min114At the 4th  layerMax. hoist rope speed(Auxiliary winch)m/min74 At the 3rd  layerBoom derricking up times94 Boom extendingt times860 Max. Slewing  speedr/min1.4 Driving parametersMax. driving  speedkm/h75 Max. gradeability%40 Turning diameterm≤20 Min.  ground clearancemm305 Limits for exhaust pollutants and smoke Conform to related standardsGB3847-2005/GB17691-2005(National Stage 4)Fuel consumption per hundred kilometersL76 MassDeadweight in driving conditionkg60000 Complete vehicle kerb masskg59805 Load on axles 1,2 and 3kg12000 Load on axles 4 and 5kg12000 DimensionsOverall dimensions(L×W×H)mm15390×3000×4000 Outrigger spread(L)m8.43 Outrigger spread(W)mFully extended:7.8,       Intermediately extended:5.3 Main boom lengthm13.5 - 72 Boom angle°-0.5 - 82 Jib lengthm11,18.6 Jib + extension  lengthm26.6 Offset°0,30

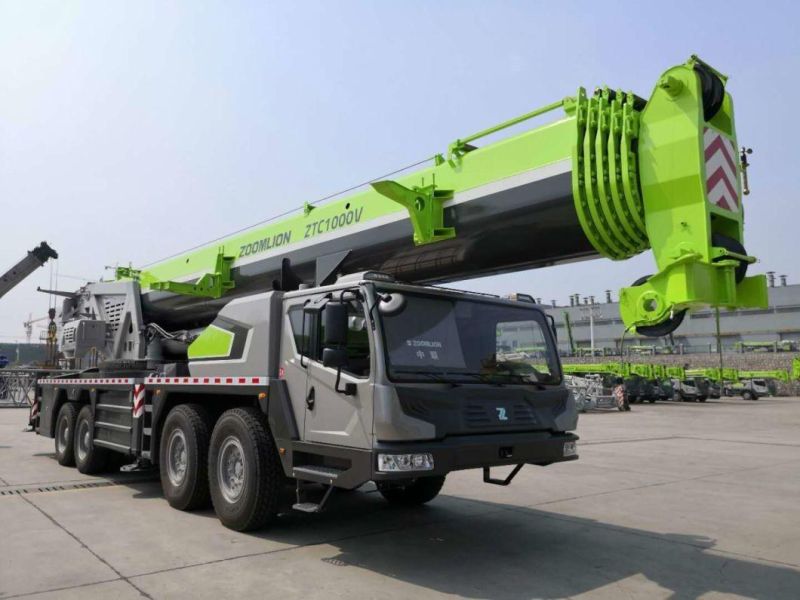

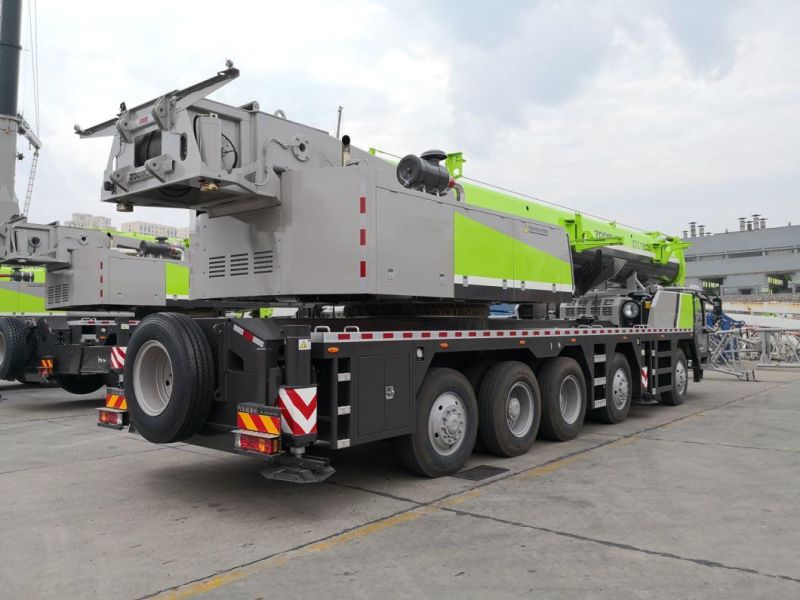

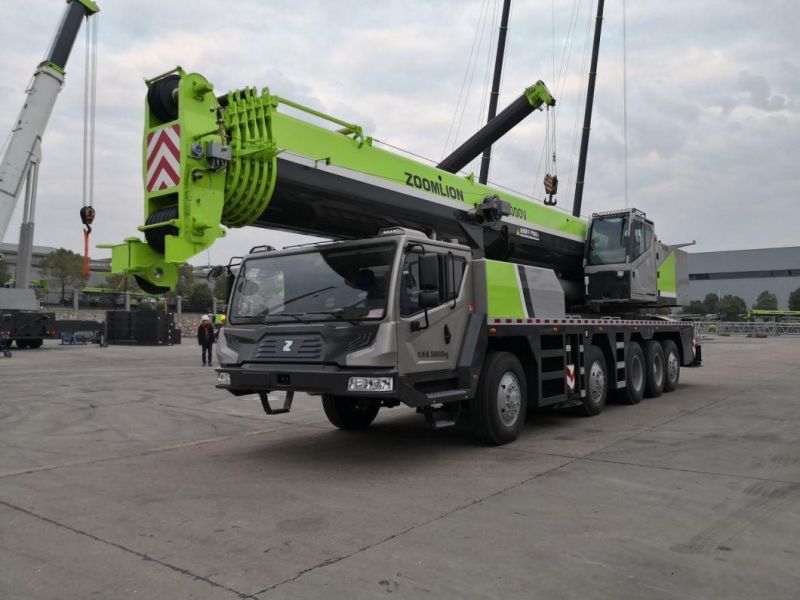

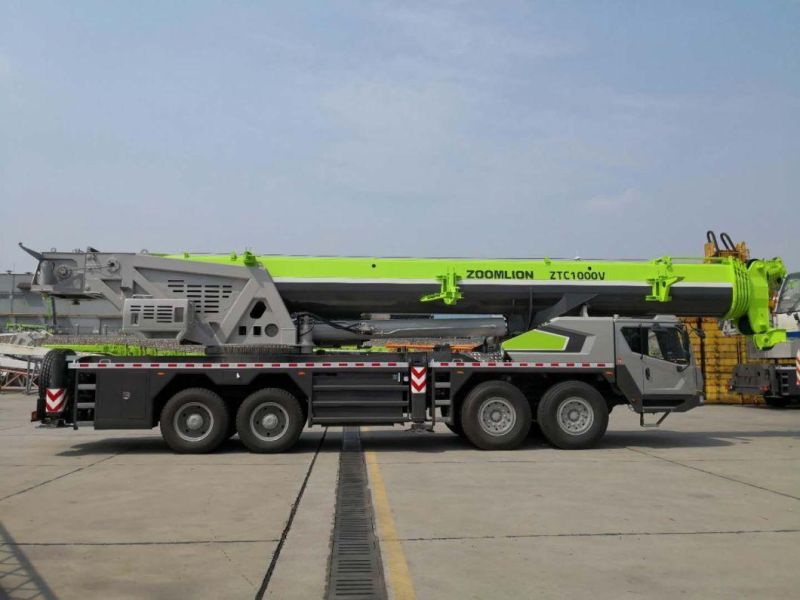

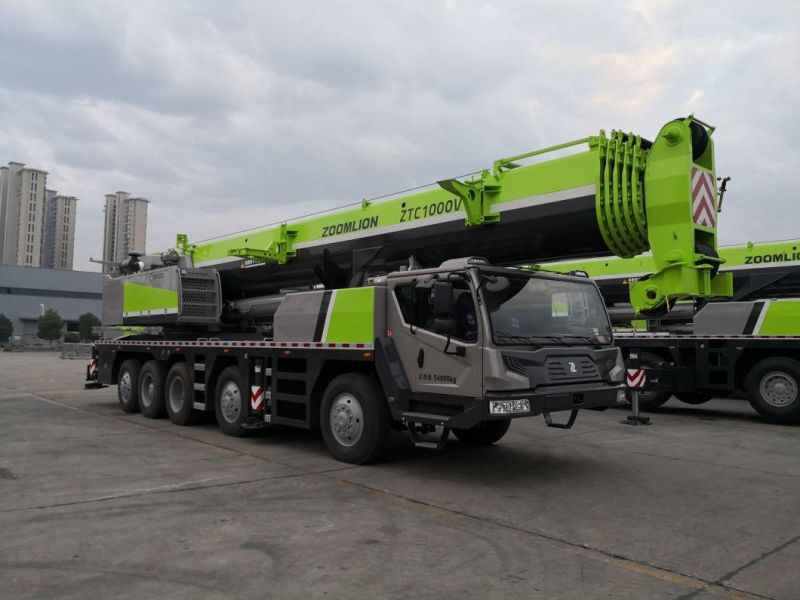

Construction Case Picture
