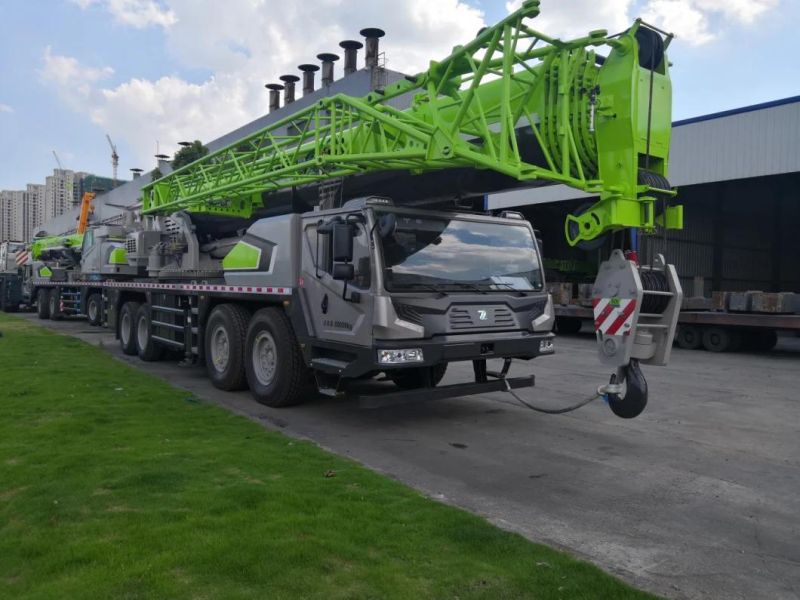

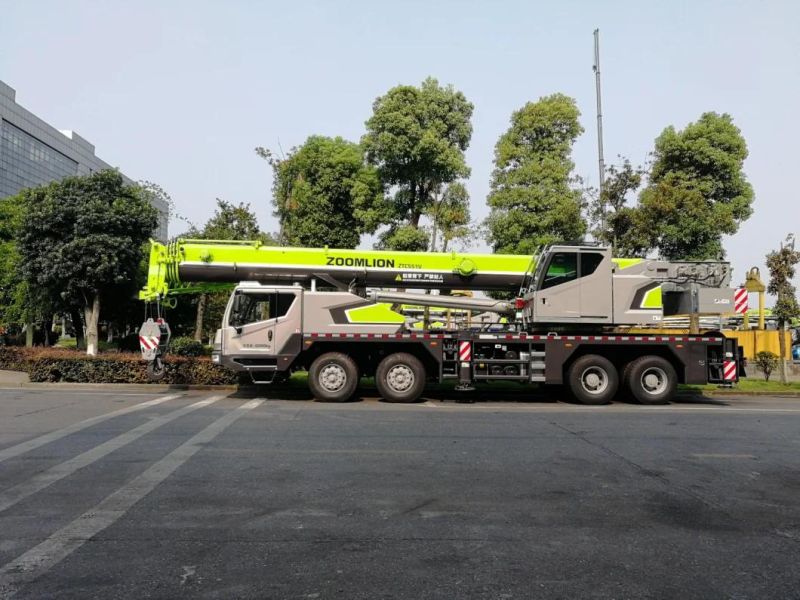

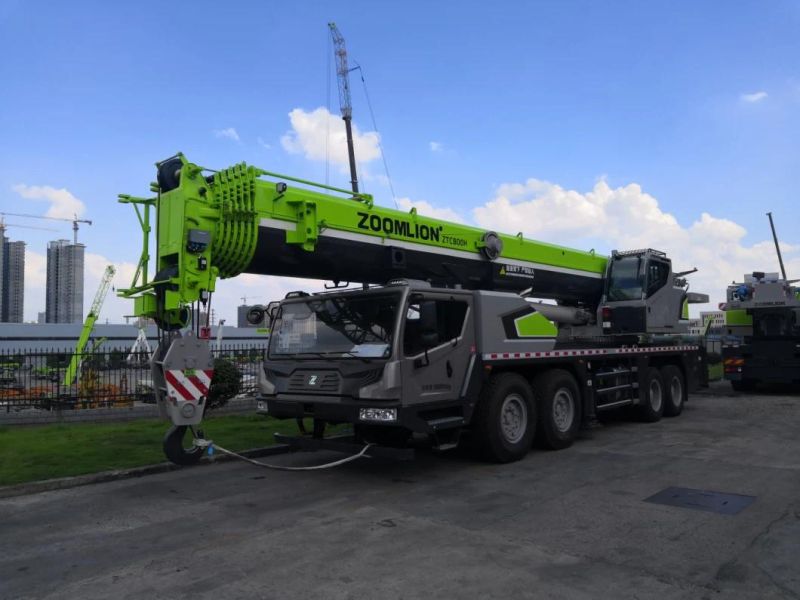

Zoomlion 80ton Truck Crane Ztc800V with Five Boom Section Euro III
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Five-Arm
Base Info
- Model NO.：ZTC800V
- Type：Folding
- Max. Gradeability：37%
- Slewing Speed：1.8r,Min
- Jib Length：9.5, 16.0m
- Crane Type：Hydraulic Crane
- Transport Package：Roro,Container,Nude
- Specification：14100× 2750× 3750mm
- Trademark：Zoomlion
- Origin：Hunan, China
- Production Capacity：100pieces,Month
Description
Type
Ser. No.
Item
Unit
Value
Working performance
1
Max. rated lifting weight × working radius
kg.m
80000×3.0
2
Max. lifting torque of basic boom
kN.m
2940
3
Max. lifting torque of longest main boom
kN.m
1440
4

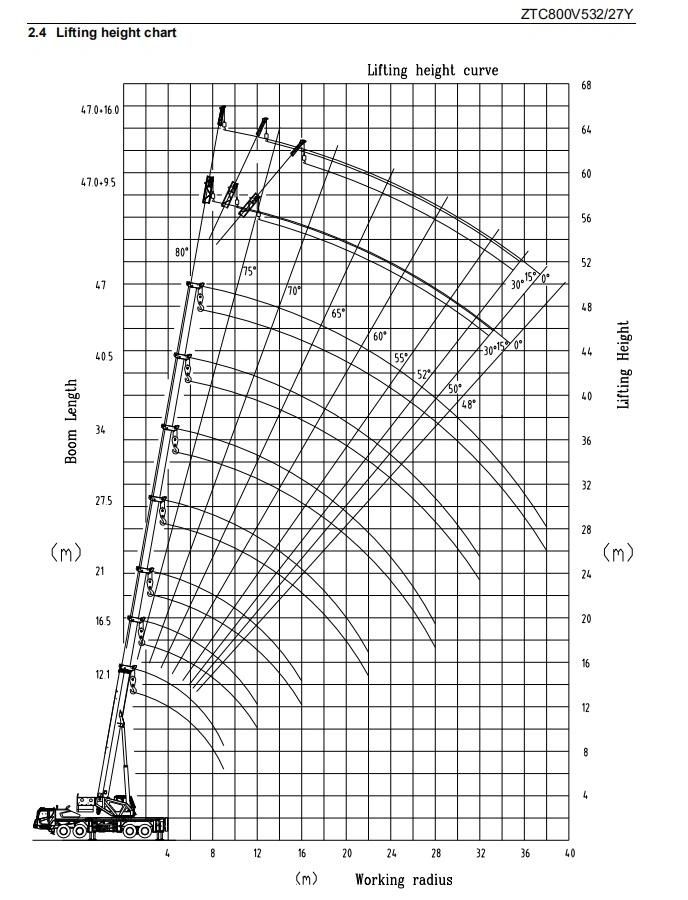

Max. lifting height of longest main boom
m
47.2
5
Max. lifting height of jib
m
64.5
Dimensions
6
Outline dimensions (L×W×H)
mm
14600×2800×3800
7
Distance between outriggers (longitudinal × transversal)
mm
6200×7600
8
Main boom length (completely retracted - completely extended)
m
12.1~46.5
9
Jib length
m
10.3,17.5
10
Main boom angle of elevation
°
-2~80
11
Swing range
360°continuously
Working speed
12
Max.speed of single rope on the drum of main winch
m/min
130
13
Boom extension time
s
140
14
Boom derricking up time
s
70
15
Swing speed
r/min
0~2.2
Mass
16
Complete vehicle kerb mass
kg
49870
17
Front axle load
kg
24000
18
Rear axle load
kg
26000
Traveling
19
Max. traveling speed
km/h
75
20
Max. gradeability
%
38
21
Min. turn radius
m
12
22
Min. ground clearance
mm
270
