• Model NO.：LDA
• Types of Electric Hoist：CD, Md
• Crane Traveling Speed：20,30 M,Min
• Crane Motor：Zd52-4,18.5kw and Zd41-4,7.5kw
• Lifting Speed(M/Min)：8, 0.8,8; 7, 0.7,7
• ISO 14001:2004：Passed
• Ohsas 18001:1999：Passed
• Certificate：CE, GS
• Power Source：Electric
• Sling Type：Wire Rope
• Application：Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage
• Transport Package：Wooden Box, Plywood
• Specification：ISO
• Trademark：ShengQi
• Origin：Xinxiang, Henan, China
• HS Code：84261120
• Production Capacity：500PCS,Month

Basic Info.

Model NO. LDA Types of Electric Hoist CD, Md Crane Traveling Speed 20/30 M/Min Crane Motor Zd52-4/18.5kw and Zd41-4/7.5kw Lifting Speed(M/Min) 8, 0.8/8; 7, 0.7/7 ISO 14001:2004 Passed Ohsas 18001:1999 Passed Certificate CE, GS Power Source Electric Sling Type Wire Rope Application Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage Transport Package Wooden Box, Plywood Specification ISO Trademark ShengQi Origin Xinxiang, Henan, China HS Code 84261120 Production Capacity 500PCS/Month

Product Description

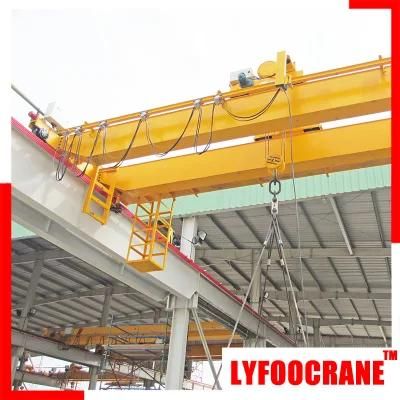

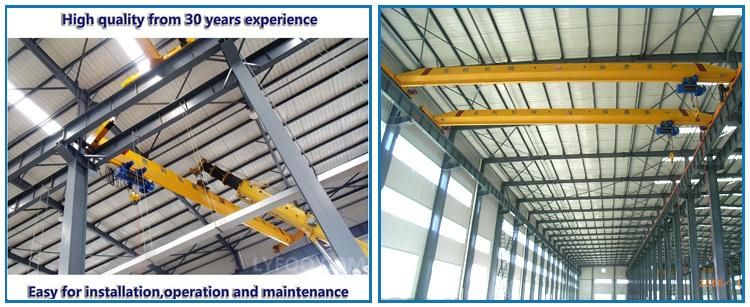

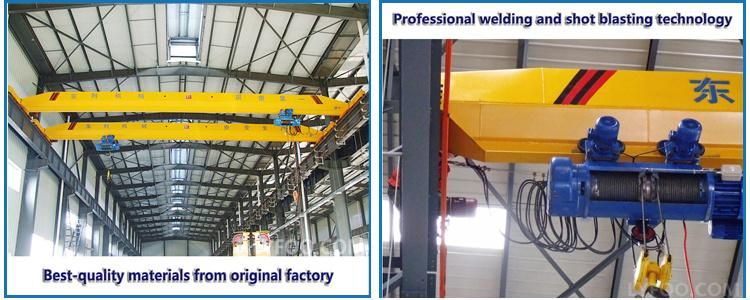

3t Single Girder Overhead Crane
 Brief Introduction: Overhead traveling bridge crane is a kind of material lifting equipment which was hung on the top of the workshop, ware house and stock ground. Both of its ends are located on tall concrete pillars or metal stents. The bridge structure lies and runs on both sides of the elevated track, This type crane can take full advantages under bridge space of lifting materials and not hindered by ground equipment It's owns the largest number used lifting machinery.

Specifications: LDA type Overhead traveling bridge crane is designed and manufactured according to standard JB/T1306-1994. It is usually fitted with single/double speed electric hoists. Its rated lifting capacity is 1t-20t, span is 7.5m~22.5m, applicable temperature is -25° C~ +40° C, and the humidity is no higher than 85%.
Warranty: 14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
2 years spare-parts provided for better maintenances.
Professional technical staffs provide installation, commissioning and training services.
Delivery with English user manual, parts manual, product certification and other relevant certificates.
Technical advisory for any time.
Why us: 1. We are the 2ND biggest crane manufacturer in China mainland.
2. We only choose real, original and top brand of parts sub suppliers. Most of the sub suppliers have been working with us for more than 10 years. The crane has stable quality.
3. All of our cranes are made under Chinese National Standard stringent
4. We have good experience both for domestic and international market
How to get price and technical details?
 1. Capacity?
2. Span?
3. Lifting height?
4. Local power? V/Hz/phase
