Good Quality and Price 10ton Flat Top Tower Crane
SHANDONG TAVOL MACHINERY CO., LTD.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：100-150m
- Maximum Lifting Weight：10t
- Installation：Jack-Up
- Moving Type：Fixed
Base Info
- Model NO.：6515
- Type：Top-Slewing Crane
- Product Name：Good Quality and Price 10ton Flat Top Tower Crane
- Jib Length：65m
- Rated Loading Capacity：10ton
- Mini Load Capacity：1.5ton
- Power Source：380V,50Hz,3phase
- Cabin：Linkage Control Desk
- Safety Protection Equipments：Include
- Color：Project Yellow
- Sling Type：Wire Rope
- Foundation Type：Embed Leg, with Ballast
- Transport Package：40hc Container
- Specification：power: 380V
- Trademark：Tavol
- Origin：China
- HS Code：8426200000
- Production Capacity：10000sets,Year
Description
1.suitable for all kinds of construction project and can work under all kinds of work condition.
2.It has high working speed, good speed-adjusting performance, steady operation and high efficiency.
3.The crane has complete set of safety devices, which can guarantee the safe and high efficienct operation of the equipment.
4.Three-speed motor and mono-speed ratio decelerator are applied in the lifting struction, which enables heavy load low speed and light load high speed.
5.Planet gear decelerator is applied in the circumgyrating structure, together with moment-limiting hydraulic coupler, which can relize high load capacity, steady starting and reliable operation.

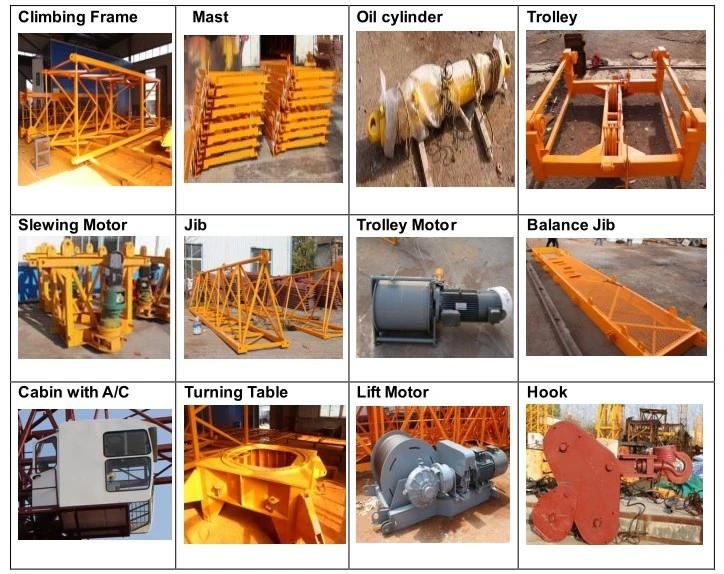

>>>Main Parts for Flat Top tower Crane:
>>>Different Models of Flat Top Tower Cranes are Supplied:
| Model | Standard model | Jib length (m) | Free standing height(m) | Max.load(t) | Max.Tip load(t) | Mast section size(m) |
| QTZ50 | 5010 | 50 | 30 | 4.0 | 1.0 | 1.6x1.6x2.5 Material: ∠160×160×14 |
| QTZ80 | 5610 | 56 | 40 | 6.0 | 1.0 | 1.6x1.6x2.5 Material:135×135×12square tube |
| QTZ80 | 5510 | 55 | 41.5 | 6.0 | 1.0 | 1.68×1.68×2.99 Material:L160X16/Q345B |
| QTZ80 | 6010 | 60 | 41.6 | 8.0 | 1.0 | 1.68×1.68×2.99 Material:L160X16/Q345B |
| QTZ125 | 6018 | 60 | 47.6 | 10 | 1.8 | 1.68×1.68×2.99 Material:L180X18/Q345B |
| QTZ125 | 6515 | 65 | 60.8 | 10 | 1.5 | 2.0×2.0×2.99 Material: L180X18/Q345B |

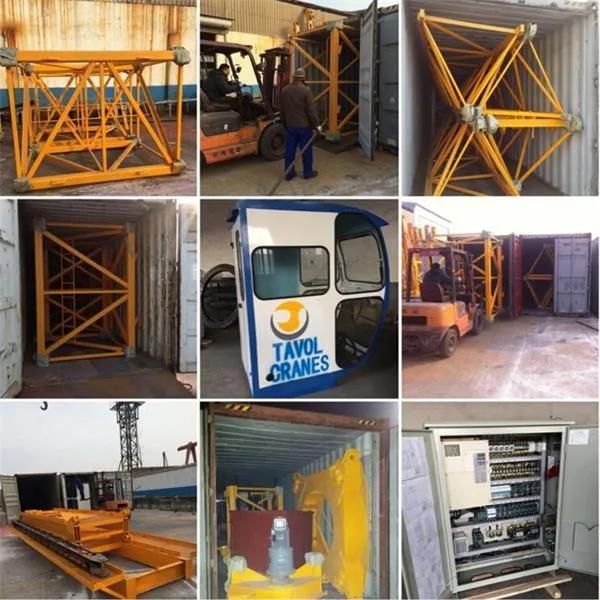

>>>Good package to protect the goods:
>>>Client from all over the world:
>>>Our service:
1.We can design the customerized tower crane as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the tower crane break down to help you repair.

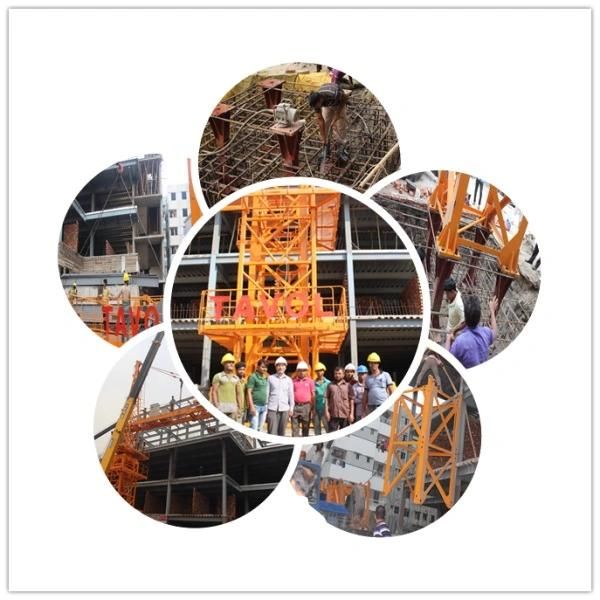

>>>Installation Picture:
