Qtz160 (6516) Self Erecting 10ton Tower Crane with Ce/ISO
SHANDONG TAVOL MACHINERY CO., LTD.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：150-200m
- Maximum Lifting Weight：>10t
- Installation：Jack-Up
- Moving Type：Fixed
Base Info
- Model NO.：QTZ160(6516)
- Type：Top-Slewing Crane
- Product Name：Qtz160 (6516) Self Erecting 10ton Tower Crane
- Material：Shangang Group Steel
- Application：Building, Construction
- Electric：Schneider
- Lifting Speed：105,55,33 M,Min
- Motor Brand：Jiangte
- Max.Lift Load：10t
- Lift Motor：37kw
- Mast Size：1.833*1.833*2.5m
- Control Type：VFD Control
- Transport Package：40hc, Naked and Disassembled Within Container
- Specification：ISO9001, GB3811_83
- Trademark：TAVOL
- Origin：Shandong, China
- HS Code：84262000
- Production Capacity：200 Sets,Year
Description
QTZ805513 55m 1.3 6 45m/17 mast 6010 60m 1.0 6 40m/13 mast 6010 60m 1.0 6 or 8 45m/15 mast QTZ125 6015 60m 1.5 8 or 10 50m/17 mast QTZ160 6516 65m 1.6 10 50m/17 mast QTZ250 7030 70m 3 12 50m/13mast+7m foundation QTZ250 7030 70m 3 16 51.5m QTZ315 7040 70m 4 16 61.5m QTZ315 7040 70m 4 18 50m/13mast+7m foundation QTZ400 7055 70m 5.5 25 71.8m
>>>Packaging & Delivery of Tower Crane:
Packaging Details: 40 HC containers; High quality Wodden cage for electrical parts Delivery
Delivery: 20-25 days after received the deposit in advance
>>>Our Service & Customer Visit:
Tavol Cranes Group is the professional Tower Crane Manufacturer and Exporter in China.We have
our own technical team and sales team, can do all special design according to your requirement.
We have our own factory, welcome to visit our factory at your time and learn about our factory and
products. 24 hours online service and support, call or contact us by Skype, QQ, MSN etc. We are sure we
can give you best service.
1- One year warranty for whole machines.
2- Providing free quick-wear part.
3- Low charge for continue maintenance when warranty is expired.
4- Exclusive engineer support at any time.
5- We can provide free training to end-users.

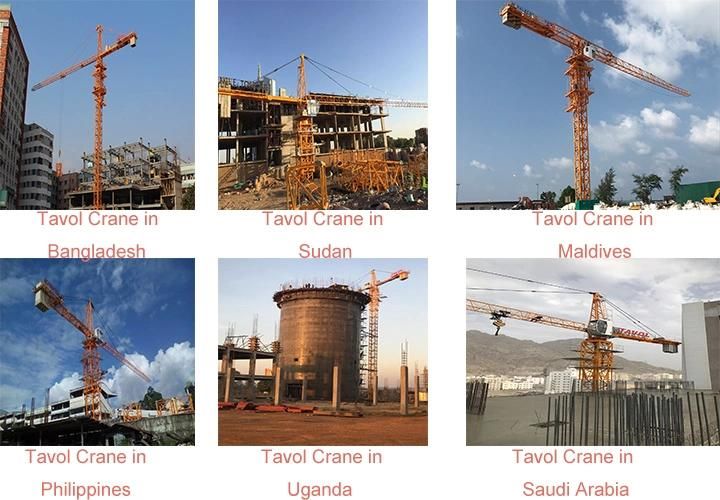

>>>Successful Case:
>>>FAQ:Please supply more detail to us:
1. Building height or tower crane working height.
2. Working range or jib length
3. Max load capacity and tip load capacity.
4. Other Special requirements
Then we will supply best offer to you.
Looking forward to have a nice cooperation with you!
If you show interest in our product, please do not hesitate to contact me!
Name:Ellen Xiao
Mob:0086-15269864317

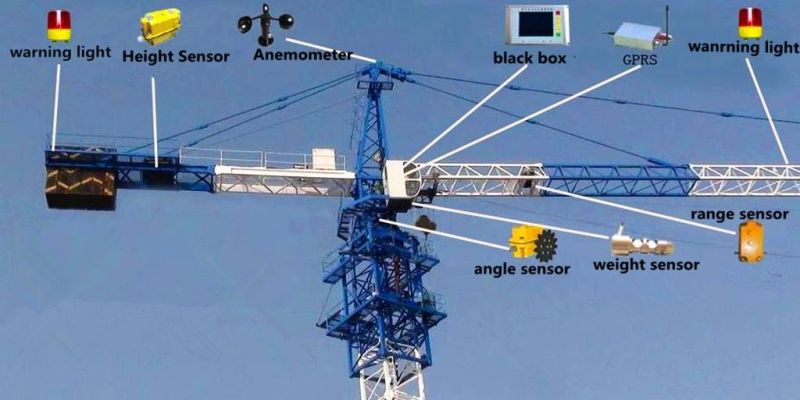

| 1 | Torque limiter | it will warns when lifting weights reach to 90% of rated lifting torque. When reach to 110% of the rated lifting torque, it will limit rising upwards and trolley. |
| 2 | Weight limiter | Control the maximum lifting capacity, lifting weight reach to 40% of the rated capacity, limit high-speed lifting; lifting weight reach to 110% of the rated capacity, limit the lifting up. |
| 3 | Height limiter | Control the lowest and highest extreme position of lifting hook. |
| 4 | Slewing limiter | Control the extreme turns number of turn left and right. |
| 5 | Amplitude limiter | Control trolley limit position of inward and outward. |
| 6 | Overload protection | If the material is over the capacity, the crane will give a sharp warning for protection itself. |
| 7 | Emergency brake | If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure. |
| 8 | Control Method | Room control or remote control to avoid any injury to the operation staff. |
| 9 | Main lifting motor | with thermal protection and currency protection. |
