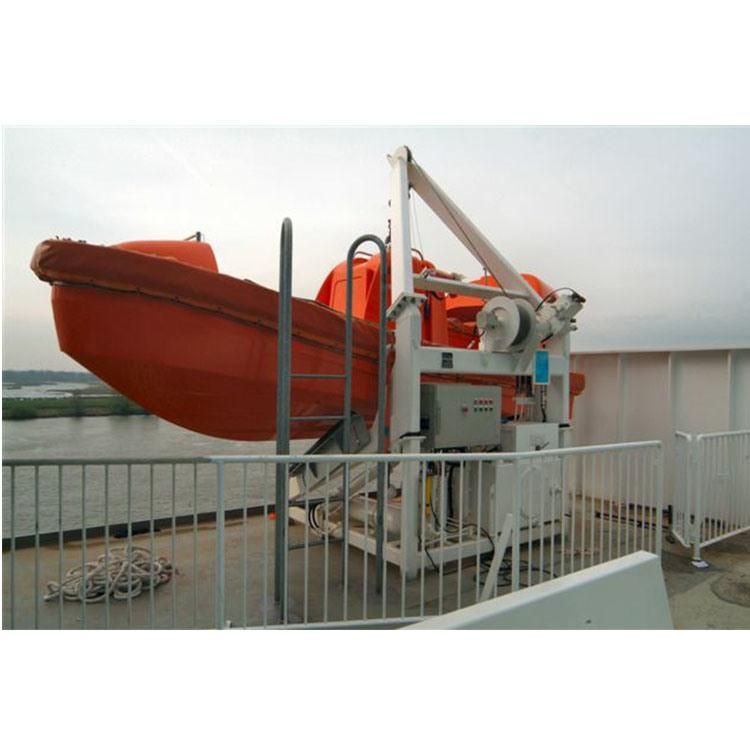

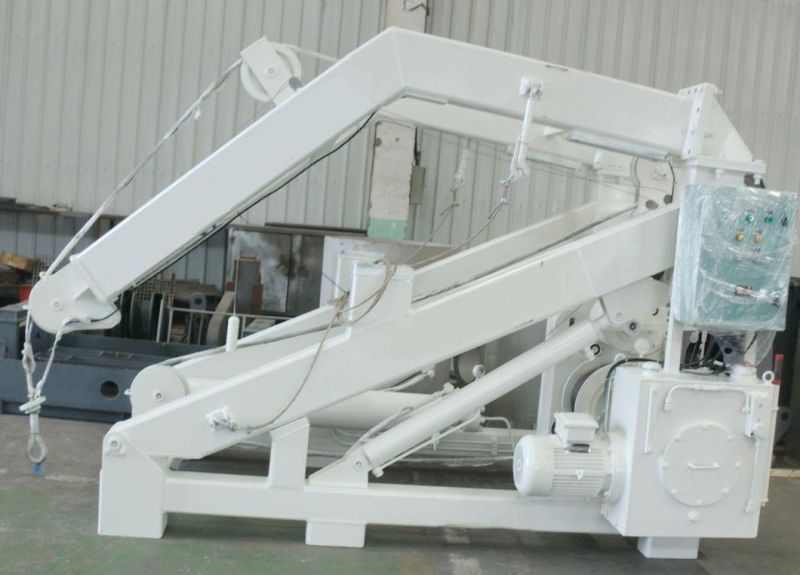

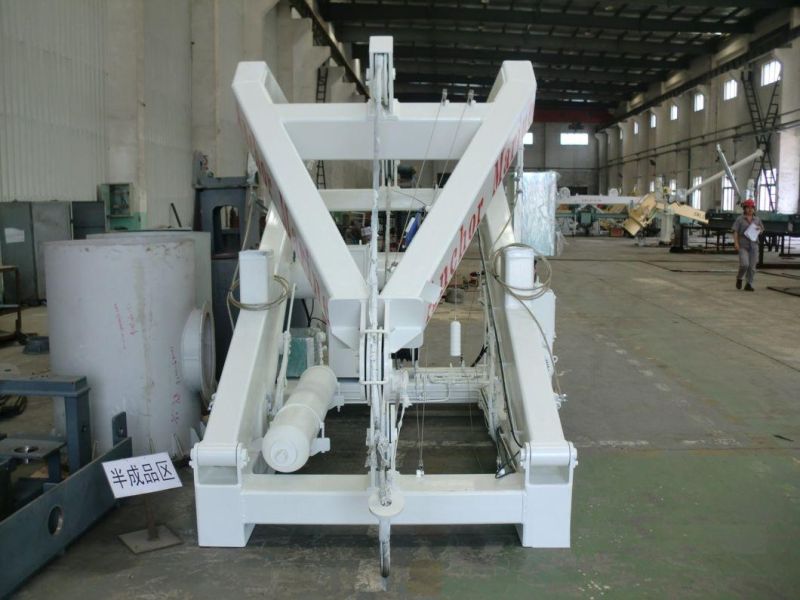

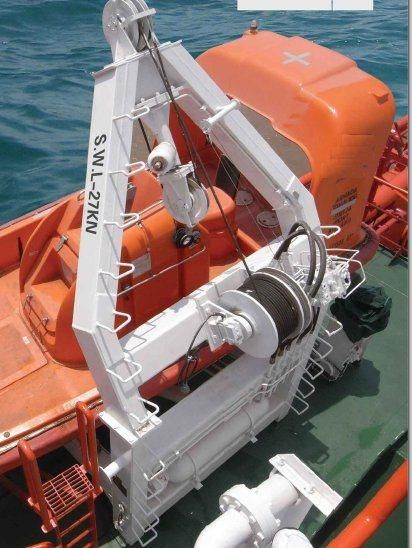

Frc Davit
ZHENJIANG JUST MARINE IM & EX CO., LTD.- Warranty：1 Year
- Certification：CCS ABS BV Lr
- Transport Package：Export Standard
Base Info
- Model NO.：JM 30
Description
Hoisting speed of rescue boat:≥18m/min
Lowering speed of boat (designed): 40~60m/min
Designed conditions: Heel 200 +trim 100
Size of boat fall: 18×19-18-1770, Min. breaking load 180KN Galv.-nontwist type
Hoisting height: 30m
Type of stored power unit:
Motor for pump station Motor for winch
Power: 5.5KW Power: 11KW
Model: Y132S-4-H Model: YZ160L-6-H
Protection grade: IP56 Protection grade: IP56
Insulation class: "F" Insulation class: "F"
Motor with heater
Power source: AC 440V,60Hz, 3 phrases
Self weight:~3500Kg
Lowering speed of boat (designed): 40~60m/min
Designed conditions: Heel 200 +trim 100
Size of boat fall: 18×19-18-1770, Min. breaking load 180KN Galv.-nontwist type
Hoisting height: 30m
Type of stored power unit:
Motor for pump station Motor for winch
Power: 5.5KW Power: 11KW
Model: Y132S-4-H Model: YZ160L-6-H
Protection grade: IP56 Protection grade: IP56
Insulation class: "F" Insulation class: "F"
Motor with heater
Power source: AC 440V,60Hz, 3 phrases
Self weight:~3500Kg
