• Model NO.：F21-E2B
• Type：Ordinary
• Product Name：F24-10d Wireless Remote Control
• Color：on Request
• Warranty：2 Years
• Overseas Installation：Available
• Manufacture：Mingdao
• Co：China
• Power Supply：220V , 380V( or on Your Request)
• Application：for Crane Using
• Lift Capacity：on Your Request
• Material：Plastic
• Voltage：AC 380V, 36V,220V or DC12V,24V
• Control Distance：up to 100m
• Temperature：-35°c___+80°c
• Transport Package：Container
• Specification：Customized type
• Trademark：MD
• Origin：China
• HS Code：8426112000
• Production Capacity：1000sets, Year

Basic Info.

Model NO. F21-E2B Type Ordinary Product Name F24-10d Wireless Remote Control Color on Request Warranty 2 Years Overseas Installation Available Manufacture Mingdao Co China Power Supply 220V / 380V( or on Your Request) Application for Crane Using Lift Capacity on Your Request Material Plastic Voltage AC 380V/ 36V/220V or DC12V/24V Control Distance up to 100m Temperature -35°c___+80°c Transport Package Container Specification Customized type Trademark MD Origin China HS Code 8426112000 Production Capacity 1000sets/ Year

Product Description

 F21-E2B Industrial  Wireless Remote Control

 Summary:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2.  Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.


Products Application:
 MD double speed electric hoist or double speed electric chain hoist with  hook,monorails ,double hook /single speed hoist crane, and used for the industrial remote control which are under16 connections.


Brief Introduction:
 Transmitter      size: 239*65* 65mm           weight:255g
 Receiver         size: 200*165*107mm        weight:1200g






SPECIFICATION:



Application	Overhead cranes, hoist ,chain hoist and other industrial machine.
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	10/16
Control distance	Up to 100m
Certificates	CE, FCC, ISO9001:2008
Number of push button	10 Single/Double speed push button+1 start+1 Emergency stop button.
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Warranty	1 year
Material	glass fiber

Standard configuration:
                          One transmitter;
                          One receiver;
                          One 1m cable connect with receiver;
                          One operation and maintain manual.

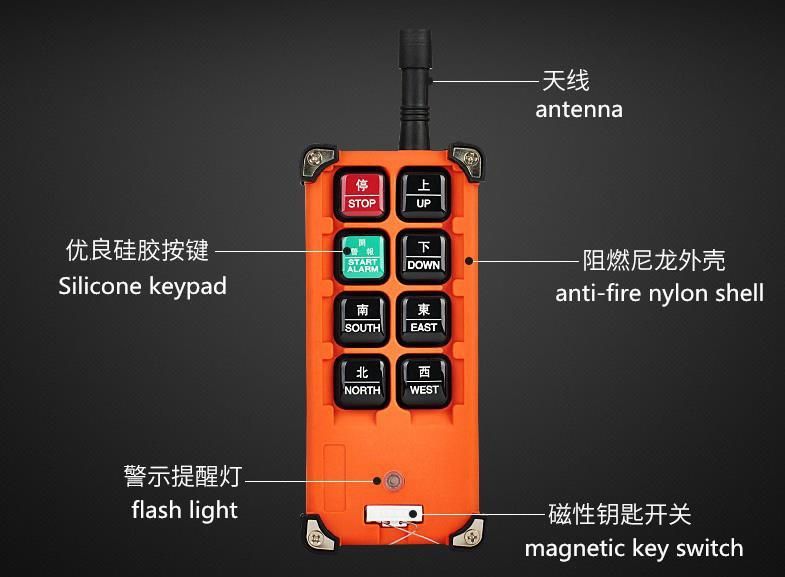

Products Features:
* 10 Single/Dual speed push button+1start button+1 Emergency stop button.
* Control points are up to 10/16.
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* With the Rotate key switch to guarantee the safety.
* Set the internal functions by computer interface.
* Up/down, east/west, south/ north push button can be set mutual inhibition or not.
* Power button can be set start, speed up, jump strokes, ordinary etc.
* Spare 1-2, 3-4 key can be set ordinary, interlock, jump strokes, switch etc.
