• Model NO.：F21-E2B
• Maximum Lifting Weight：>200t
• Main Girder Form：Double Girder
• Type：Ordinary
• Product Name：F24-10d Wireless Remote Control
• Color：on Request
• Overseas Installation：Available
• Manufacture：Mingdao
• Co：China
• Power Supply：220V , 380V( or on Your Request)
• Application：for Crane Using
• Lift Capacity：on Your Request
• Material：Plastic
• Voltage：AC 380V, 36V,220V or DC12V,24V
• Control Distance：up to 100m
• Transport Package：Container
• Specification：Customized type
• Trademark：MD
• Origin：China
• HS Code：8426112000
• Production Capacity：1000sets, Year

Basic Info.

Model NO. F21-E2B Maximum Lifting Weight >200t Main Girder Form Double Girder Type Ordinary Product Name F24-10d Wireless Remote Control Color on Request Overseas Installation Available Manufacture Mingdao Co China Power Supply 220V / 380V( or on Your Request) Application for Crane Using Lift Capacity on Your Request Material Plastic Voltage AC 380V/ 36V/220V or DC12V/24V Control Distance up to 100m Transport Package Container Specification Customized type Trademark MD Origin China HS Code 8426112000 Production Capacity 1000sets/ Year

Product Description

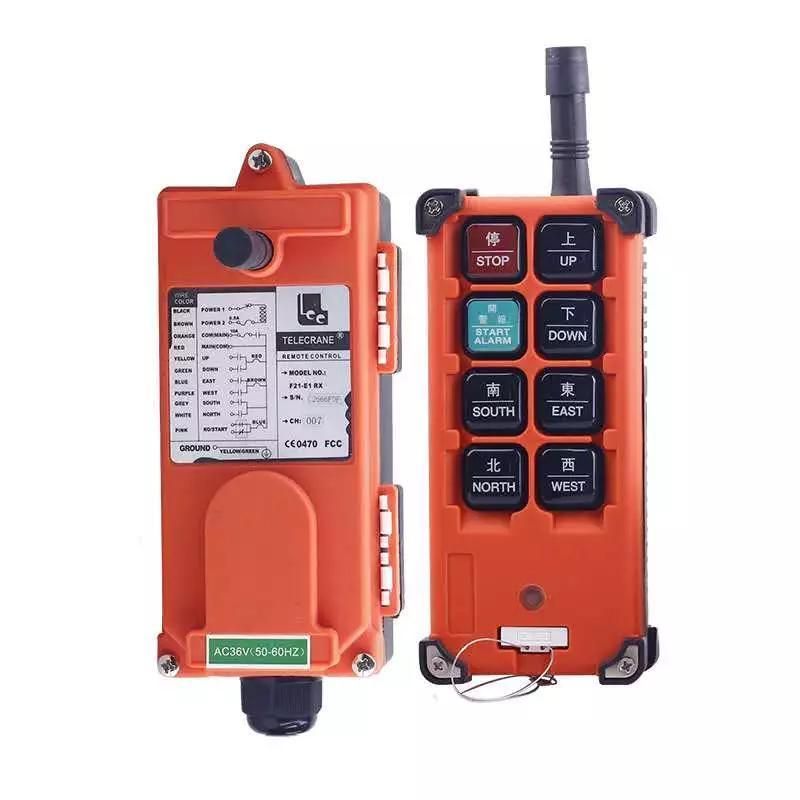

F21-E2b Industrial  Radio Telecrane Wireless  Remote Control

Summary:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2.  Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.

Products Application:
 MD double speed electric hoist or double speed electric chain hoist with  hook,monorails ,double hook /single speed hoist crane, and used for the industrial remote control which are under16 connections.

Brief Introduction:

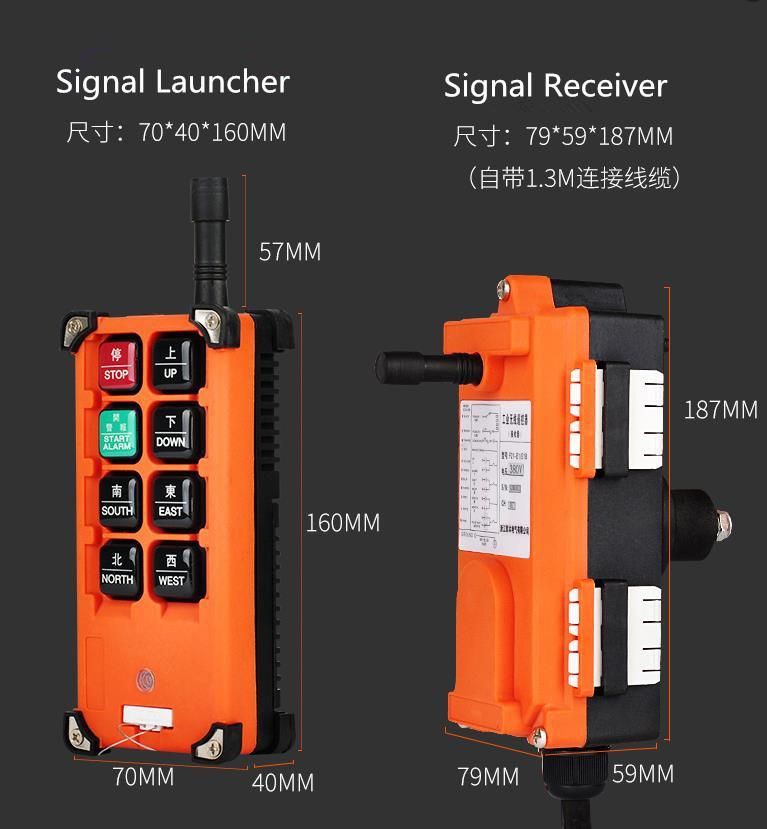

 Transmitter      size: 239*65* 65mm           weight:255g
 Receiver         size: 200*165*107mm        weight:1200g

SPECIFICATION:



Application	Overhead cranes, hoist ,chain hoist and other industrial machine.
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	10/16
Control distance	Up to 100m
Certificates	CE, FCC, ISO9001:2008
Number of push button	10 Single/Double speed push button+1 start+1 Emergency stop button.
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Warranty	1 year
Material	glass fiber

Standard configuration:
                          One transmitter;
                          One receiver;

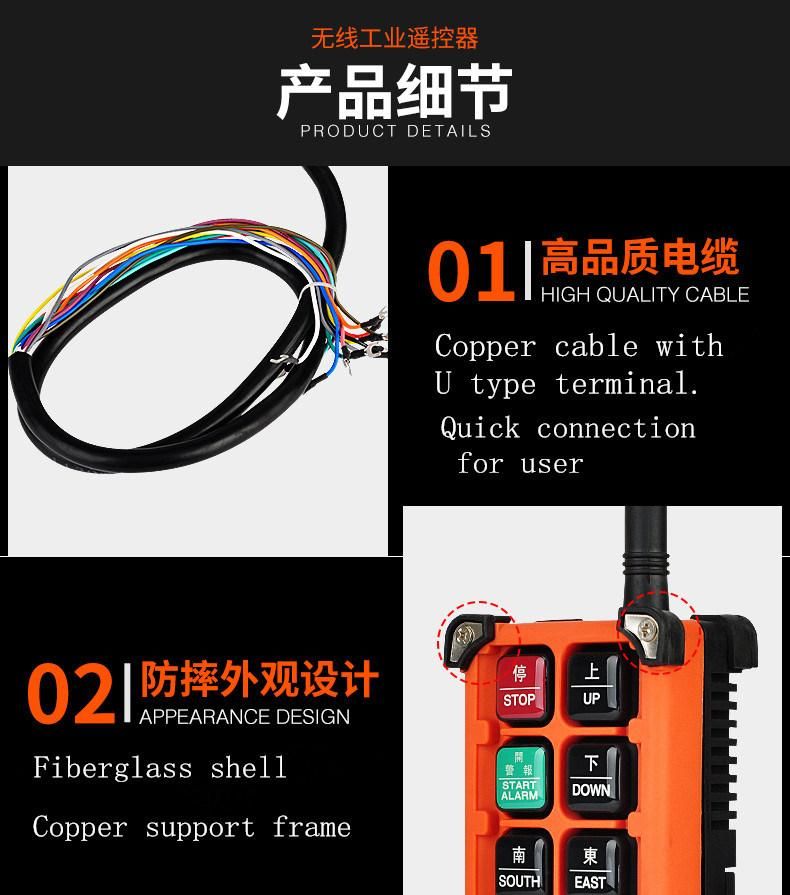

                          One 1m cable connect with receiver;
                          One operation and maintain manual.

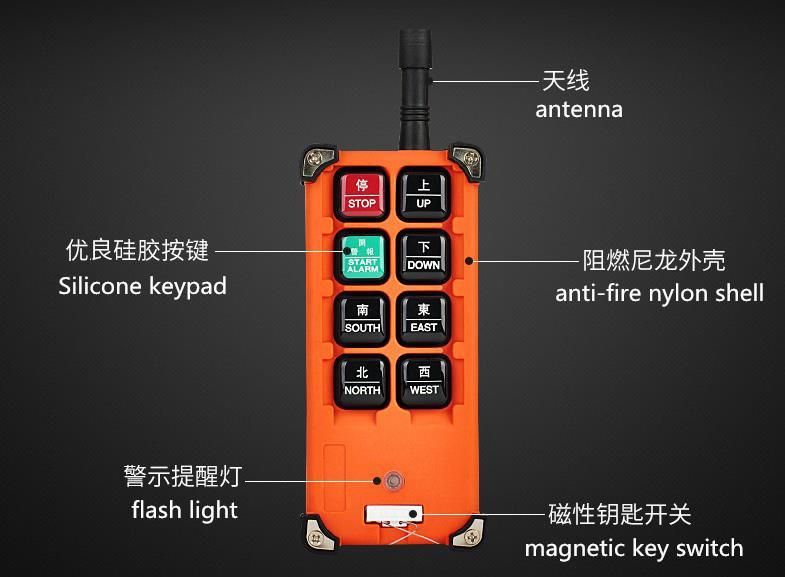

Products Features:
* 10 Single/Dual speed push button+1start button+1 Emergency stop button.
* Control points are up to 10/16.
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* With the Rotate key switch to guarantee the safety.
* Set the internal functions by computer interface.
* Up/down, east/west, south/ north push button can be set mutual inhibition or not.
* Power button can be set start, speed up, jump strokes, ordinary etc.
* Spare 1-2, 3-4 key can be set ordinary, interlock, jump strokes, switch etc.

Shandong Mingdao Heavy Industry Machinery Co., Ltd. is mainly engaged in the design, manufacture,installation and maintenance of single girder overhead cranes(LD Models), Double Girder Overhead Cranes (LH,QD etc),gantry cranes(MH,MDG..),Jib cranes(BZ,QZ,MZ etc),  frequency inverter cranes, Explosion-proof series cranes(LB,QB etc), Cranes with grab bucket, Low headroom  Hoist, Electric Winches, Construction Cranes, Clean Room Cranes and CD1 MD1 HC Electric Hoist, Hand Chain Hoist ETC...

We are a member of China Lifting Industry Association, safety-recognized enterprise, national crane machinery designated production organizations, we have obtained mechanical engineering "design certificate", and the national issued crane "manufacturing permit",installation and maintenance, renovation and maintenance of the "License" and so on.

In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China. Also, with the help of China trading companies  we have exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania ,Peru , Newzealand,etc countries .  We got 99% good feedback from the overseas customers.

Now we are not only aiming at China domestic market growth ,but also to expand the international market with our quality and price advantages.  Send us an inquiry now.

The company has six functional departments, including R&D department, sales department, materials supply department, production department, QC department,after-sales department. There are 16 workshops including electrical, riveting, forging, assembly, heat treatment, machining and maintenance.

Our company produces various lifting equipment and loading and unloading. The equipment is 30,000 tons and the sales income is 360 million yuan. 18 offices and 76 sales and service agencies in power plants, industrial and mining enterprises, and port terminals.

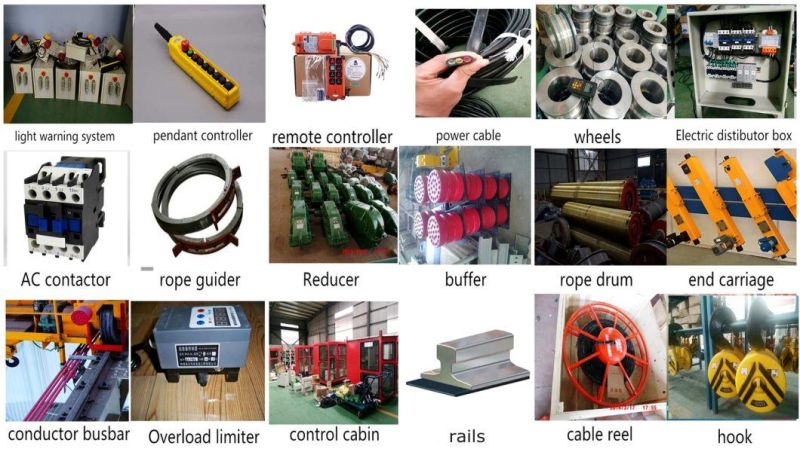

We offer all kinds of mechanial parts and electric parts for overhead cranes, jib cranes, gantry cranes etc, welcome to contact us for a quotation of the crane parts, customized parts accpeted for your special requirements.
