XCMG 650 Ton Crawler Crane Xgc650 for Sale
Xuzhou Construction Machinery Group Import & Export Co., Ltd.- Max. Lifting Height：108m
- Rated Loading Capacity：650t
- Certification：Ce,ISO9001
- Condition：New
- Warranty：1 Year
- Feature：Other
Base Info
- Model NO.：XGC650
- Rated Lifting Moment：13330knm
- Machinery Test Report：Provided
- Rated Power of Engine：447kw
- Warranty of Core Components：1 Year
- Application：Construction
- Min. Rated Radius：12m*3.3m*3.4m
- Marketing Type：Hot Product 2019
- Max. Gradeability：0.3
- Showroom Location：Canada, United States, France, Russia
- Span：66
- Video Outgoing-Inspection：Provided
- Transport Package：Comply with Export Packaging Requirements
- Trademark：XCMG
- Origin：Jiangsu, China
- Production Capacity：1000 Unit,Units Per Year
Description
Basic Info.
Model NO. XGC650 Rated Lifting Moment 13330knm Machinery Test Report Provided Rated Power of Engine 447kw Warranty of Core Components 1 Year Application Construction Min. Rated Radius 12m*3.3m*3.4m Marketing Type Hot Product 2019 Max. Gradeability 0.3 Showroom Location Canada, United States, France, Russia Span 66 Video Outgoing-Inspection Provided Transport Package Comply with Export Packaging Requirements Trademark XCMG Origin Jiangsu, China Production Capacity 1000 Unit/Units Per YearProduct Description
Product Description

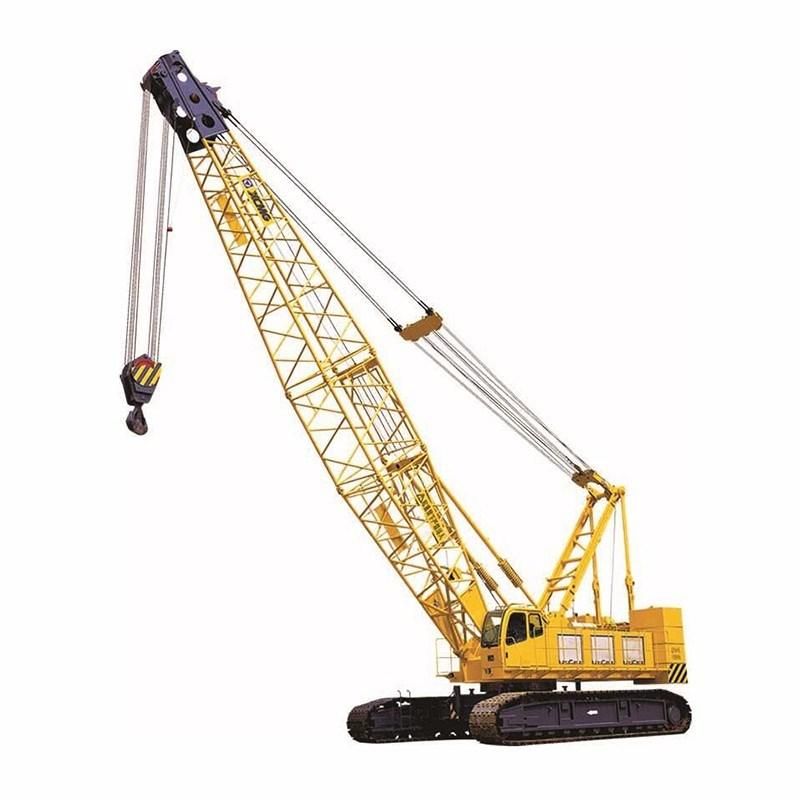

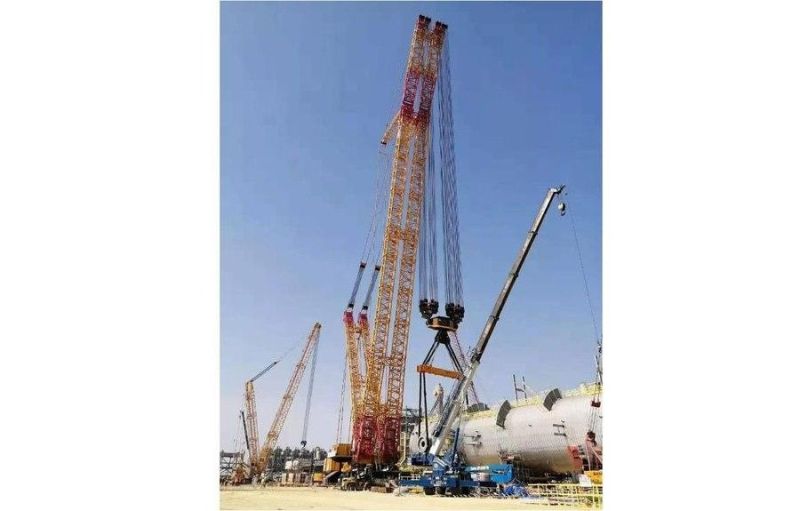

XCMG 650 ton crawler crane XGC650 for sale
XGC650 is a new generation crawler crane which is successfully developed by XCMG on the basis of QUY series product. The crane of this model has been improved from the aspects of assembly and disassembly convenience, operation comfort and lifting capacity, safer and more reliable.
Equipped with various advanced technologies such as mast one-key erecting and stepless luffing, the crane's performance is superior to that with other domestic brands in various aspects.
Under the premise of conventional function realization, wind power working condition has been specially developed for XGC650 to meet the installation requirement of 2.0MW~3.0MW wind power equipment.
Specification| Item | Unit | Parameter value |
| Operation performance parameter | * | |
| Max. rated lifting capacity for boom | (t) | 650 |
| Max. rated lifting capacity for fixed jib | (t) | - |
| Max. rated lifting capacity for luffing jib | (t) | 330 |
| Max. load moment | (t.m) | 7848 |
| Max. rated lifting capacity for tower jib | (t) | 330 |
| Max. rated lifting capacity for boom single top | (t) | 30 |
| Max. rated lifting capacity for special jib | (t) | 170 |
| Dimension parameter | * | |
| Boom length | (m) | 24~108( heavy type)/ |
| 66~138(light type) | ||
| Boom luffing angle | (°) | -3~85 |
| Fixed jib length | (m) | - |
| Tower jib length | (m) | 24~96 |
| Max. dimension of single unit in transport state(L×W×H) | (m) | 12×3.3×3.4 |
| Fixed jib offset angle | (°) | - |
| Special jib length | (m) | 12 |
| Speed parameter | * | |
| Max. single line speed for hoist mechanism | (m/min) | 130 |
| Max. single line speed for boom luffing mechanism | (m/min) | 2×58 |
| Max. single line speed for jib luffing mechanism | (m/min) | - |
| Max. slewing speed | (r/min) | 0.7 |
| Max. travel speed | (km/h) | 0.8 |
| Grade ability | (%) | 30 |
| Mean ground pressure | (MPa) | 0.146 |
| Max. single line speed for tower jib luffing mechanism | (m/min) | 100 |
| Max. single line speed for super lift luffing | (m/min) | 110 |
| Engine | * | |
| Model | - | QSX15 |
| Engine power | (kW) | 447 |
| Emission | - | EU III |
| Mass parameter | * |
You May Like XCMG 75 ton XGC75 New Crawler Crane for Sale .
XGC75 hydraulic crawler cranes are characterized by inheriting the advantages of old products and paying more attention to the performance, disassembly and transportation.
XCMG 50t crane crawler XGC55 rc crawler crane price.
the new generation pays more attention to improving the performance, operating efficiency, convenience for disassembly and transportation, and comfort of operation.
XCMG 75 Ton XGC75T New Telescopic Crawler Crane .
Working conditions such as travel with no load, load lifting in place and travel with load are equipped for the crane to realize quick heavy load lifting, so as to satisfy different construction demands from the customers.
Top Selling50ton qy50ka hydraulic telescopic boom truck crane.
Leading lifting performance and traveling performance.mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry.

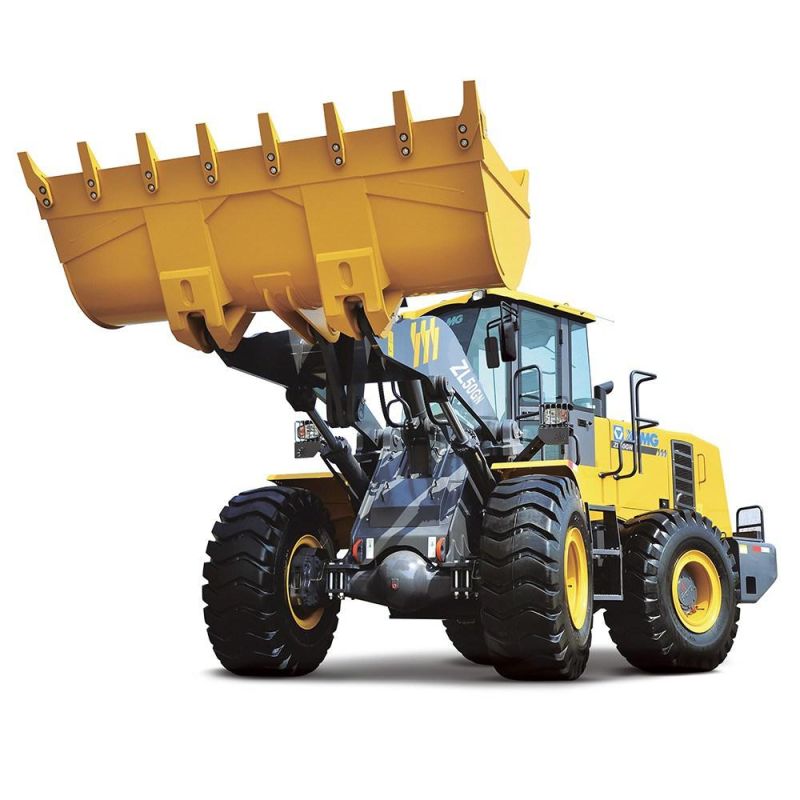

5 ton front end loader ZL50GN wheel loader.
High torque and high efficiency drive chain features reasonable matching.the 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
20 ton hydraulic crawler excavator XE215C .
The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.the highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

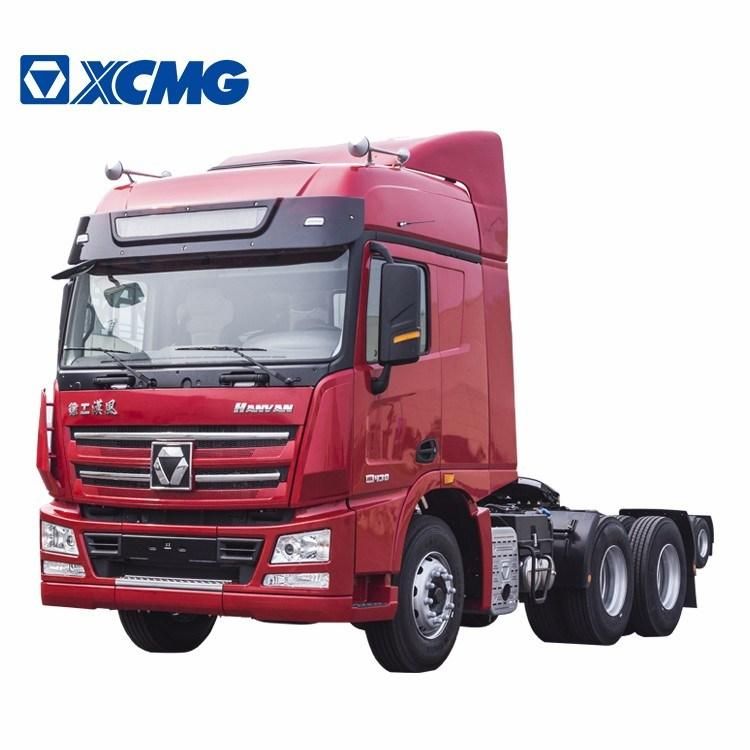

430HP 6x4 tractor truck NXG4250D3WC .
Saving oil, high efficiency (suitable for various working conditions, more efficient under super power), and environmental protection (low fuel consumption, carbon emission reduction, meeting euro V and VI emission standards.

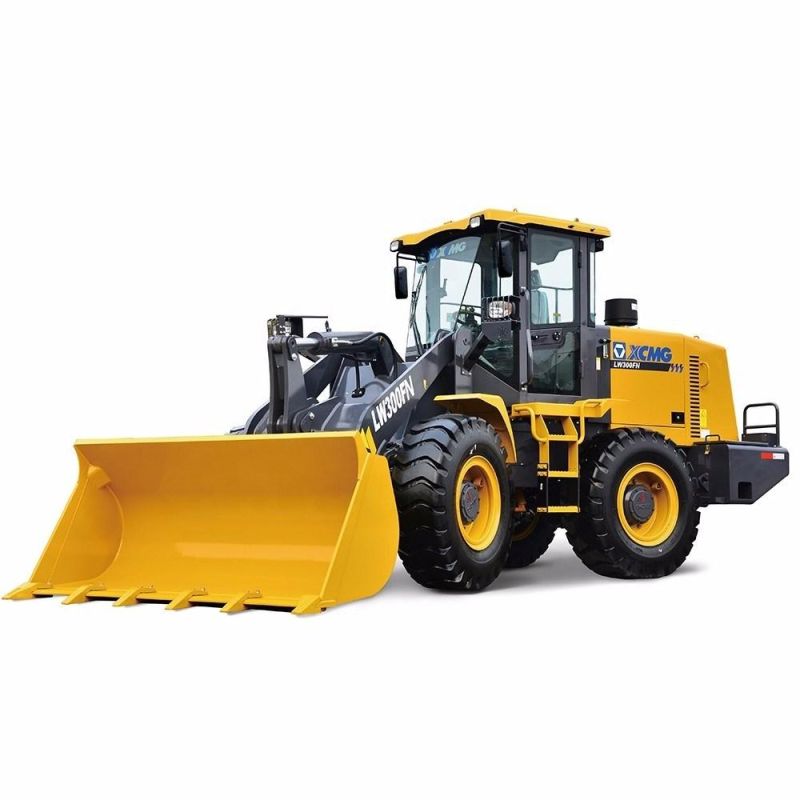

3 ton LW300FN wheel loader price .
XE700C boasts high-end configurations, high efficiency, low fuel consumption, low noise and high reliability, able to serve mine construction as ideal operation equipment.

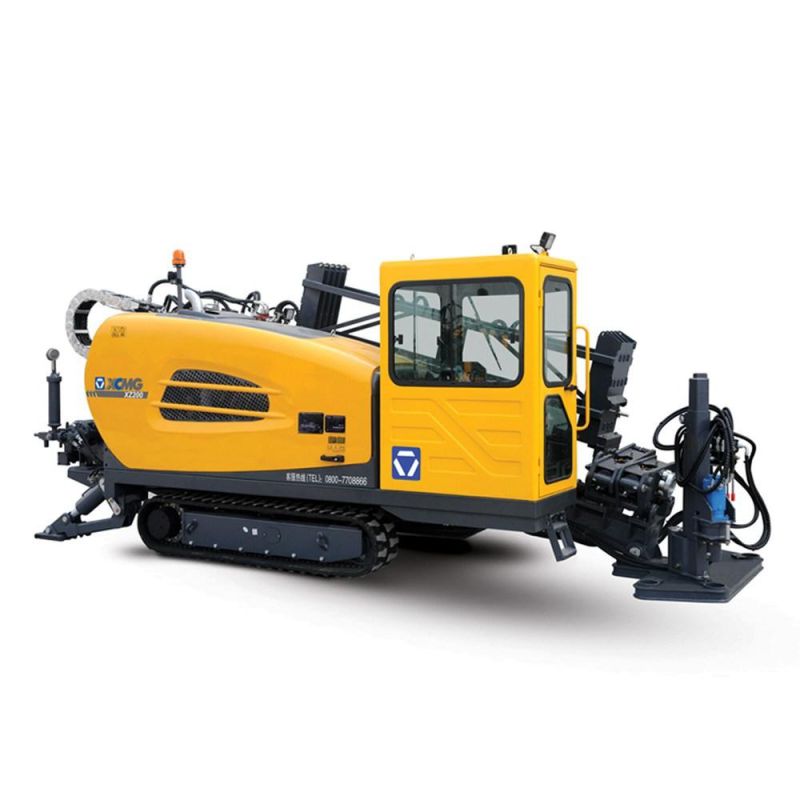

xz200 Horizontal Directional Drill (HDD).
