• Model NO.：XGC75T
• Feature：Other
• Core Components：PLC, Engine, Bearing, Gearbox
• Rated Lifting Moment：4436kn.M
• Applicable Industries：Machinery Repair Shops
• Machinery Test Report：Provided
• Warranty of Core Components：1 Year
• Max. Slewing Speed：2r,Min
• Application：Construction
• Min. Rated Radius：3m
• Marketing Type：Hot Product 2019
• Video Outgoing-Inspection：Provided
• Transport Package：Comply with Export Packaging Requirements
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

Basic Info.

Model NO. XGC75T Feature Other Core Components PLC, Engine, Bearing, Gearbox Rated Lifting Moment 4436kn.M Applicable Industries Machinery Repair Shops Machinery Test Report Provided Warranty of Core Components 1 Year Max. Slewing Speed 2r/Min Application Construction Min. Rated Radius 3m Marketing Type Hot Product 2019 Video Outgoing-Inspection Provided Transport Package Comply with Export Packaging Requirements Trademark XCMG Origin Jiangsu, China Production Capacity 10000 Unit/Units Per Year

Product Description

Product Description

XCMG 75 Ton XGC75T New Telescopic Crawler Crane.

The max. rated lifting capacity of XGC75T telescopic crawler crane is 75t, with five telescopic boom sections, two side-sited folding jib sections, 47m fully-extended boom (12.2~47m) and 10.5/17.5m jib, various working radius demands will be fulfilled though the use of available boom length.



Working conditions such as travel with no load, load lifting in place and travel with load are equipped for the crane to realize quick heavy load lifting, so as to satisfy different construction demands from the customers.

Specification

Item	Unit	Parameter value
Parameter Item	-	XGC75T
Dimension parameter		*
Overall crane length	(mm)	14463
Overall crane width(extend/retract)	(mm)	5060/3400
Overall crane height	(mm)	3500
Center distance between drive roller and driven roller	(mm)	5525
Crawler shoe width	(mm)	760
Weight parameter		*
Total mass in travel state	(kg)	79888
Travel parameter		*
Travel speed with no load	(km/h)	2.5
Travel speed with full load	(km/h)	1.5
Min. ground clearance	(mm)	480
Max. grade ability	(%)	10
Ground pressure	(MPa)	0.096
Power parameter		*
Noise near ear(dB)	(A)	80
Engine model	-	Weichai WP7.270
Engine rated power	(kw)	199
Engine rated speed	(r/min)	2000
Engine emission standard	-	National off-road stage III

Product Show You May Like

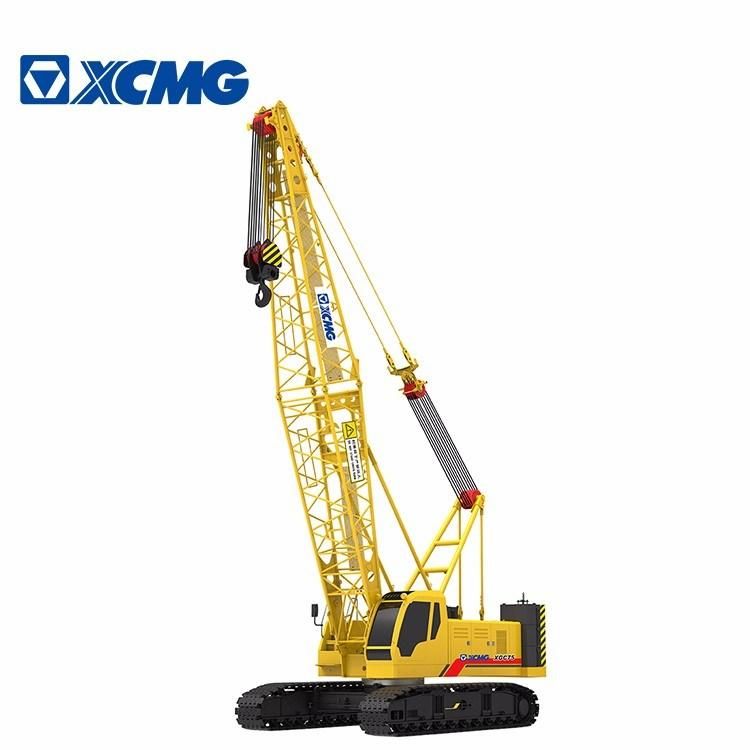

XCMG 75 ton XGC75 New Crawler Crane for Sale .

XGC75 hydraulic crawler cranes are characterized by inheriting the advantages of old products and paying more attention to the performance, disassembly and transportation.



XCMG 50t crane crawler XGC55 rc crawler crane price.

the new generation pays more attention to improving the performance, operating efficiency, convenience for disassembly and transportation, and comfort of operation.



XCMG 75 Ton XGC75T New Telescopic Crawler Crane .

Working conditions such as travel with no load, load lifting in place and travel with load are equipped for the crane to realize quick heavy load lifting, so as to satisfy different construction demands from the customers.

Top Selling

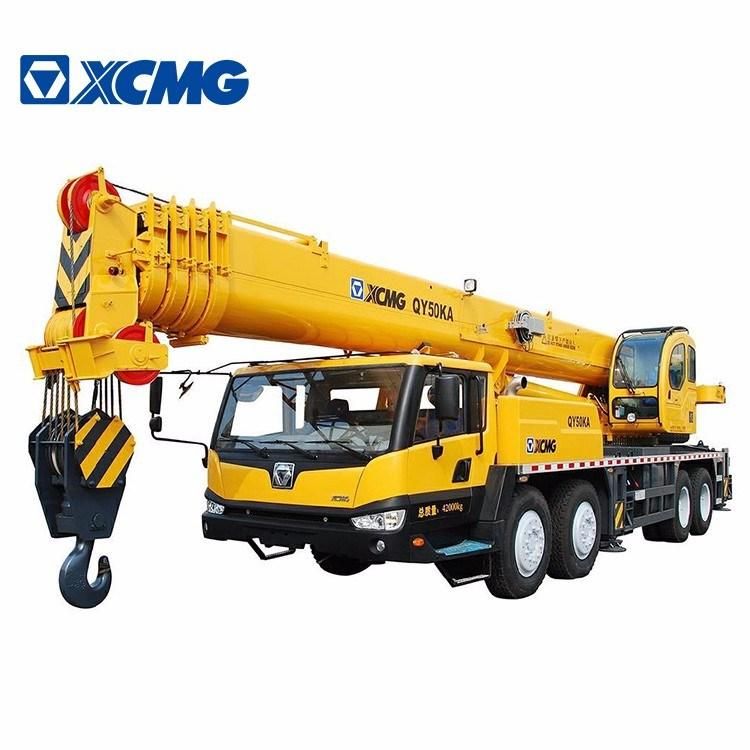

50ton qy50ka hydraulic telescopic boom truck crane.

Leading lifting performance and traveling performance.mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry.



5 ton front end loader ZL50GN  wheel loader.

High torque and high efficiency drive chain features reasonable matching.the 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.

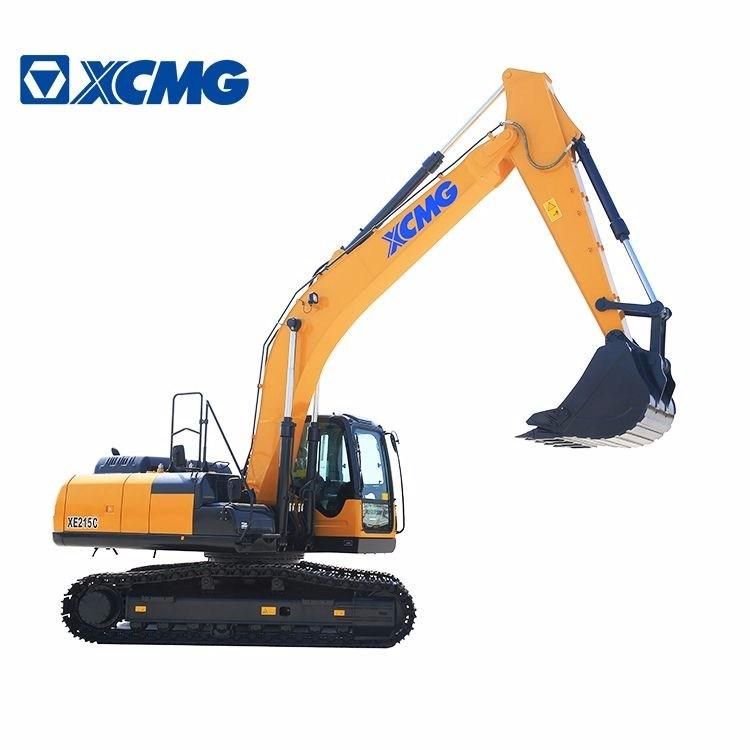

20 ton hydraulic crawler excavator XE215C .

The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.the highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

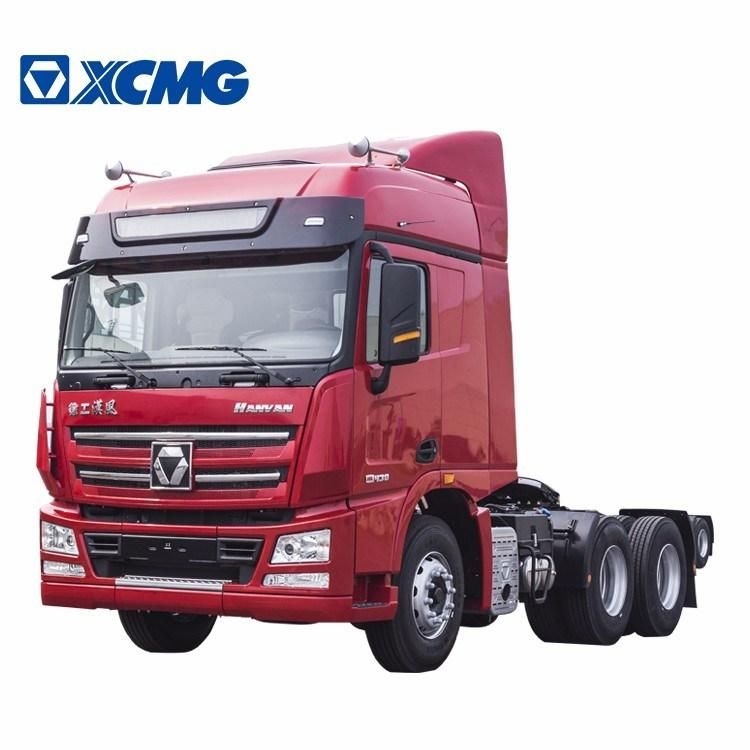

430HP 6x4 tractor truck NXG4250D3WC .

Saving oil, high efficiency (suitable for various working conditions, more efficient under super power), and environmental protection (low fuel consumption, carbon emission reduction, meeting euro V and VI emission standards.

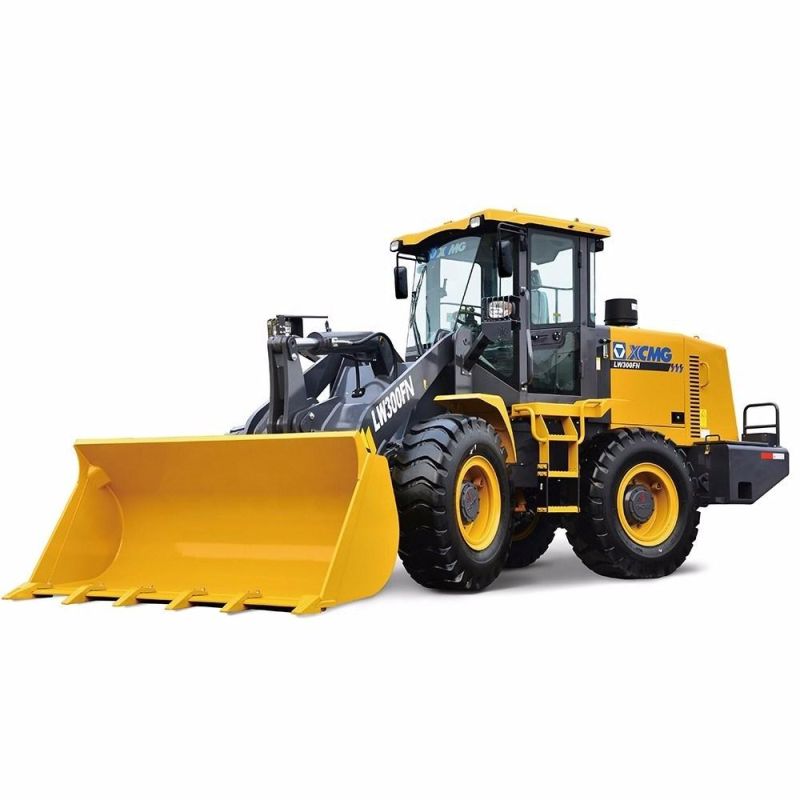

3 ton LW300FN wheel loader  price .

XE700C boasts high-end configurations, high efficiency, low fuel consumption, low noise and high reliability, able to serve mine construction as ideal operation equipment.

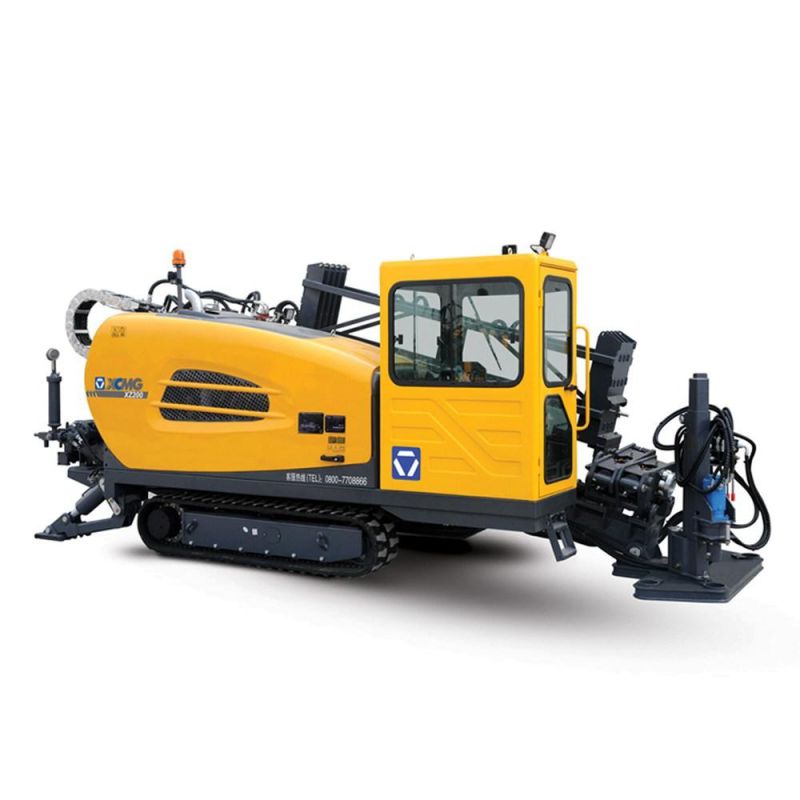

xz200 Horizontal Directional Drill (HDD).
