• Model NO.：ZTC300V532
• Type：Folding
• Max. Rated Lifting Capacity：25000kg
• Max. Lifting Height of Jib：46.58m
• Max. Driving  Speed：75km,H
• Min.  Ground Clearance：280mm
• Transport Package：Comply with Export Packaging Requirements for Min
• Specification：12700*2500*3450 mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：84262000
• Production Capacity：100 Units Per Month

ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg30000 Max. load moment of basic boomkN.m990 Max. load moment of main boom(fully extended)kN.m624 Max. lifting height of main boomm42.1The parameters do not include deflection of main boom and jibMax. lifting height of jibm50Working speeds              Max. hoist rope speed(Main winch)m/min120At the 4th layerMax. hoist rope speed(Auxiliary winch)m/min120At the 4th layerBoom derricking up times25 Boom telescoping out times84 Slewing speedr/min

0 - 2.7

 Driving    parametersMax. driving speedkm/h90 Max. gradeability%42 Min turning diameterm≤20 Min. ground clearancemm260 Oil consumption per hundred kilometersL28 MassDeadweight in driving conditionkg32510 Complete vehicle kerb masskg32389 Front axle loadkg6610 Rear axle loadkg25900 DimensionsOverall dimensions(L×W×H)mm13150×2500×3450 Longitudinal distance between outriggersm5.4 Transversal distance between outriggersmFully extended: 6.20m  Intermediately extended: 4.25m Tail slewing radiusmm3265 Main boom lengthm10.7 - 42.0 Boom angle°-2 - 80 jib lengthm8.0 Offset°0/15/30

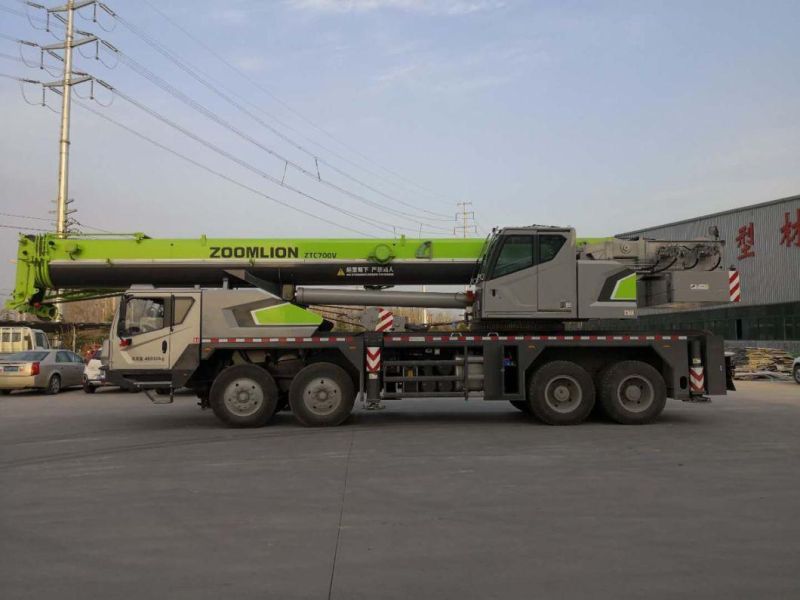

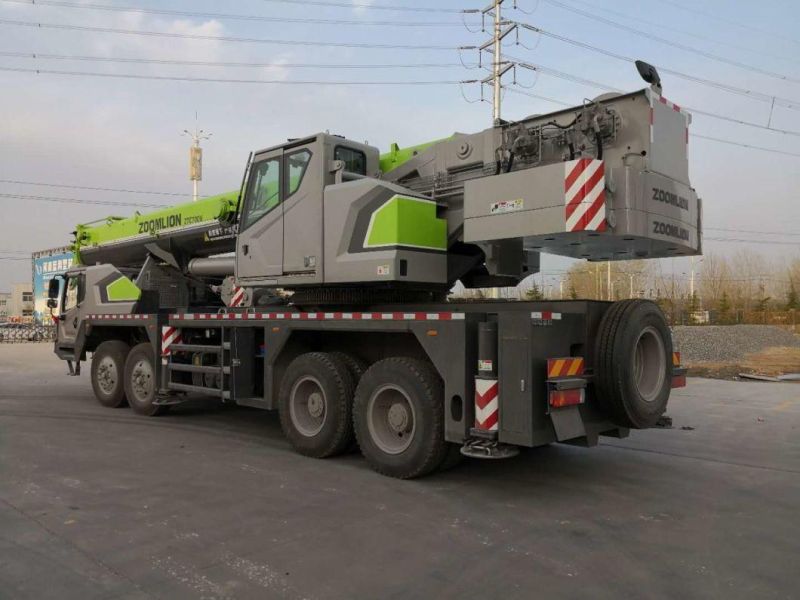

Photos
