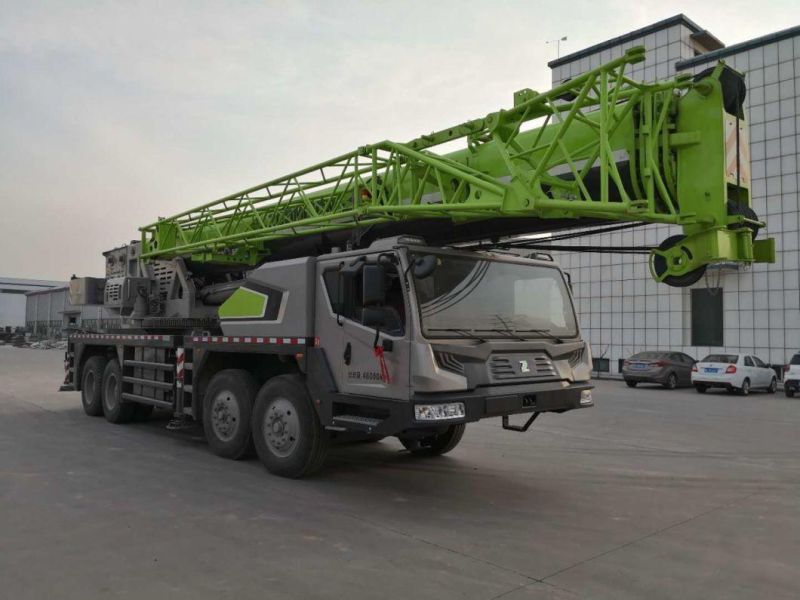

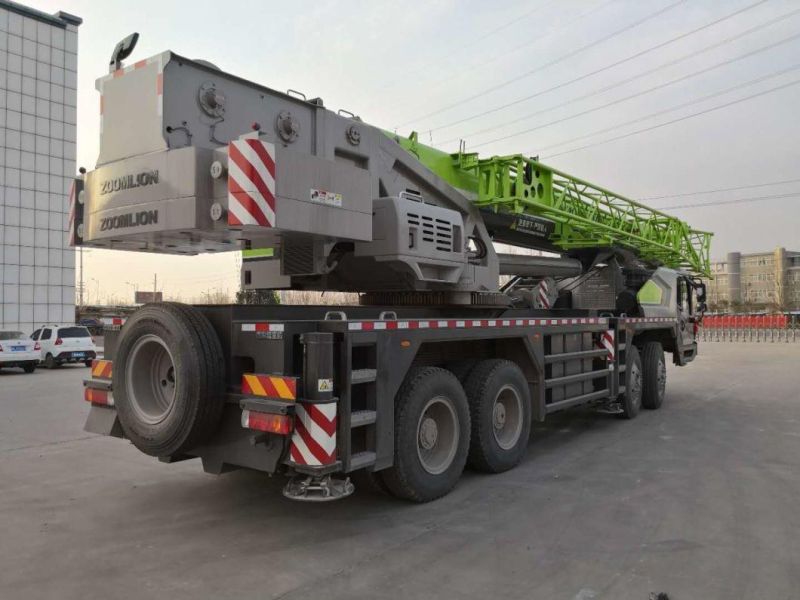

Zoomlion 70 Ton Truck Crane Ztc700V552
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：70ton
- Shaft Number：2
- Crane Jib：Two-Arm
Base Info
- Model NO.：ZTC700V552
- Type：Folding
- Max. Rated Lifting Capacity：25000kg
- Max. Lifting Height of Jib：46.58m
- Transport Package：Comply with Export Packaging Requirements for Min
- Specification：12700*2500*3450 mm
- Trademark：ZOOMLION
- Origin：China
- HS Code：84262000
- Production Capacity：100 Units Per Month
Description
Item
Unit
Value
Remarks
Working performance
Max. rated lifting capacity
kg
70000
Max. load moment of basic boom
kN.m
2352
Max. load moment of main boom(fully extended)
kN.m
1098
Max. load moment of basic boom
m
12.2
Max. lifting height of main boom
m
44.2
These parameters do not include deflection of main boom and jib
Max. lifting height of jib
m
60.2
Working speeds
Max. hoist rope speed(Main winch)
m/min
≥135
Drum 4th layer
Max. hoist rope speed(Auxiliary winch)
m/min
≥110
Drum 2nd layer
Boom demrricking up time
s
57
Boom demrricking up time
s
107
Slewing speed
r/min
1.8
Driving
parameters
Max. driving speed
km/h
75
Max. gradeability
%
37
Min. Turning diameter
m
24
Min. ground clearance
mm
280
Oil consumption per hundred kilometers
L
46
Mass
Deadweight in driving condition
kg
45000
Complete vehicle kerb mass
kg
44870
Front axle load
kg
19000
Rear axle load
kg
26000
Dimensions
Overall dimensions(L×W×H)
mm
14100×2750×3750
Longitudinal distance between outriggers
m
6.00
Transversal distance between outriggers
m
Fully extended:7.6,
Half- extended:5.04
Tail slewing radius
mm
4020
Boom length
m
11.4 - 43.0
Boom angle
°
-2 - 80
Jib length
m
9.5,16.0
Offset
°
0,30
