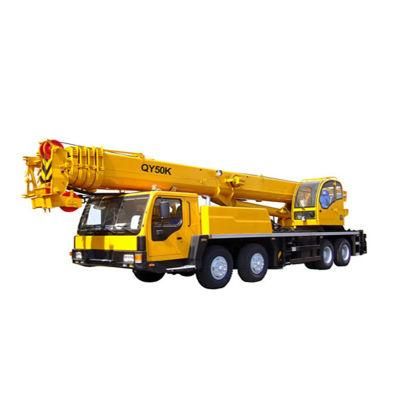

High Quality 50ton Truck Crane with Discount (QY50KA)
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Five-Arm
Base Info
- Model NO.：Qy50ka
- Type：Folding
- Max. Travel Speed：80km,H
- Min. Turning Diameter：24m
- Min. Ground Clearance：291mm
- Max. Grade Ability：40
- Transport Package：Bulk,Roro
- Specification：57.7m
- Trademark：TOP BRAND
- Origin：China
- HS Code：87051091
- Production Capacity：1000pieces
Description
Overview
Product DescriptionOverall length 13770 mm Overall width 2800 mm Overall height 3570 mm Weight Dead weight in travel state 41000 Kg 1st axle load 7500 Kg 2nd axle load 7500 Kg 3rd axle load 13000 Kg 4th axle load 13000 Kg Power Engine model WD615.334 WD615.338 WP10.336 WP10.375 Engine rated output 247/2200 276/2200 247/2200 275/2200 Kw(r/min) Engine rated torque 1350(1300~1600) 1500(1300~1600) 1350(1100~1500) 1460(1200~1600) N.m(r/min) Travel Max.travel speed 80 Km/h Min.turning diameter 24 m Min.ground clearance 291 mm Approach angle 17 . Departure angle 11 . Max.gradeability 40 % Fuel consumption of per 100km 42 L Lifting performance Max.total rated lifting load 50 t Min. working radius 3 mm Turning radius at swing table tail 3482 m Base boom max.load moment 1822 Kn.m Base boom 11.3 m Full- extended boom 42.7 m Full-extended boom+ jib 57.7 m Outrigger longitudinal distance span 5.91 m Outrigger lareral distance span 6.9 m Working speed Boom elevating time 40 s Boom telescoping time 80 s Max. slewing speed 2 r/min Main winch max. speed(no load) 130 m/min Auxiliary winch max. speed(no load) 120 m/min
Product Parameters
Dimensions
