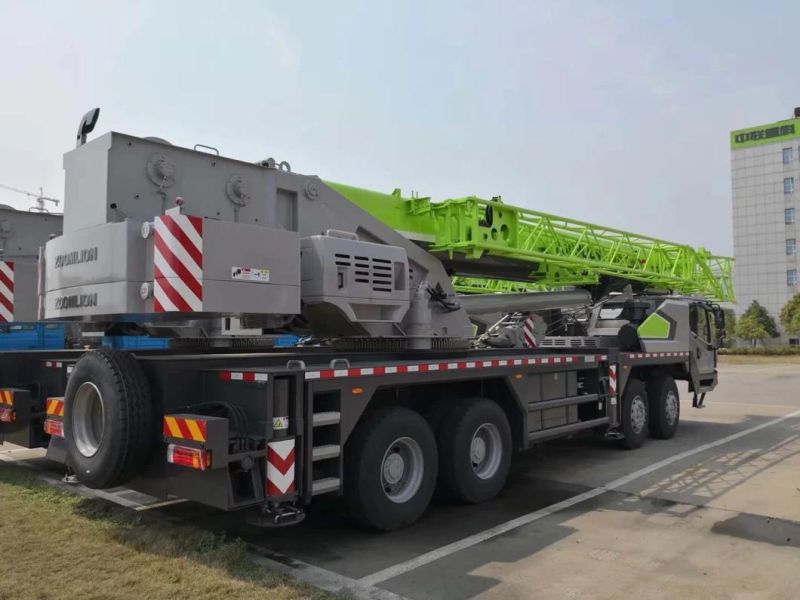

• Model NO.：Qy30V532.9
• Type：Straight Arm
• Tail Slewing Radius：3385mm
• Jib Length：8m
• Max.Gradeability：37%
• Transport Package：Roro,Container
• Specification：7910x3016x3515
• Trademark：Zoomlion
• Origin：China
• HS Code：87051091
• Production Capacity：500unit,Month

ItemUnitValueRemarksWorking    performanceMax.    rated lifting capacitykg30000 Max.    load moment of basic boomkN.m1132 Max.    load moment of main boom(fully extended)kN.m617.5 Max.    load moment of basic boomm11.1 Max.    lifting height of main boomm40.5The    parameters do not include deflection of main boom and jibMax.    lifting height of jibm48.5Working    speeds              Max.    hoist rope speed(Main winch)m/min120At    the 4th  layerMax.    hoist rope speed(Auxiliary winch)m/min100At    the 2nd   layerBoom    demrricking up times40 Boom    demrricking up times80 Slewing  speedr/min

0 - 2.2

 Driving
     parametersMax.    driving  speedkm/h78 Max.    gradeability%37 Min    turning diameterm≤22 Min.  ground clearancemm220 Oil    consumption per hundred kilometersL35 MassDeadweight    in driving conditionkg32000 Complete    vehicle kerb masskg31870 Front    axle loadkg7000 Rear    axle loadkg25000 DimensionsOverall    dimensions(L×W×H)mm12900×2500×3465 Longitudinal    distance between outriggersm5.36 Transversal    distance between outriggersmFully    extended:6.10 m
     Intermediately extended:4.20 m Tail    slewing radiusmm3385 Main    boom lengthm10.6    - 40.0 Boom    angle°-2    - 80 jib    lengthm8.0 Offset°0,30
